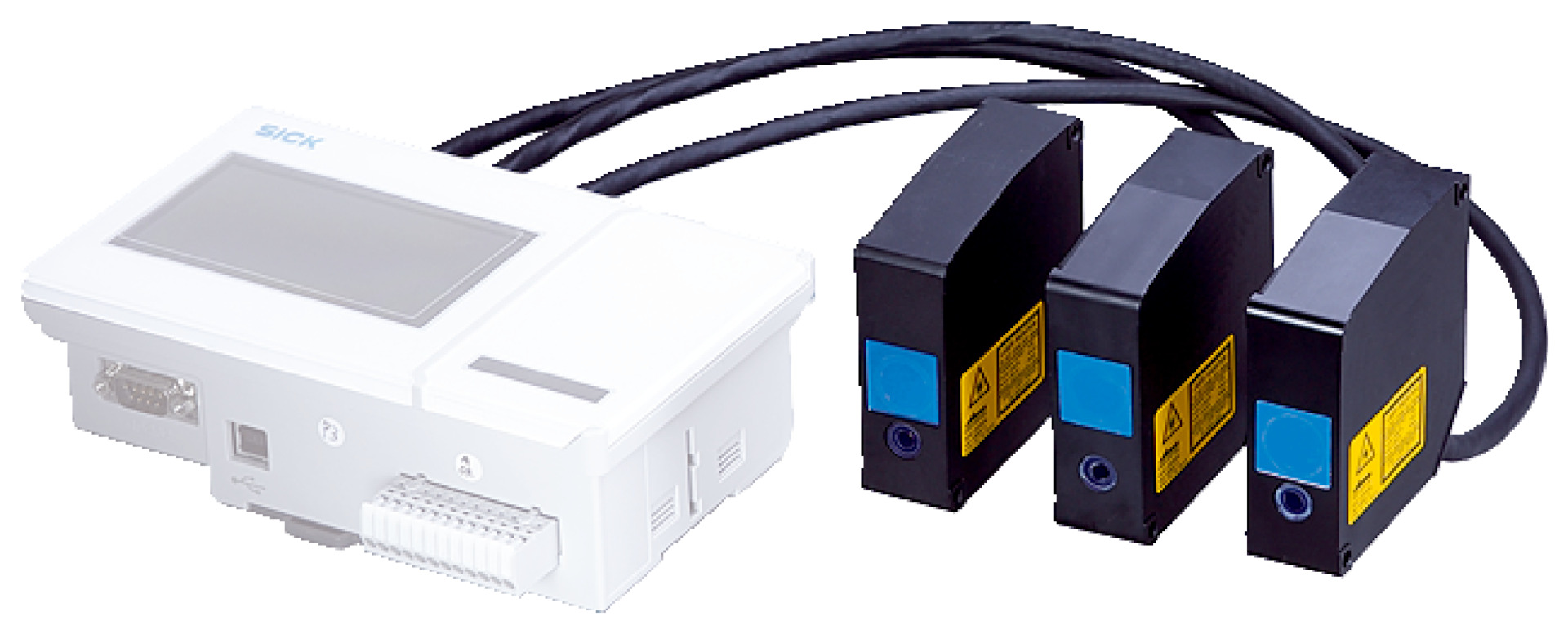

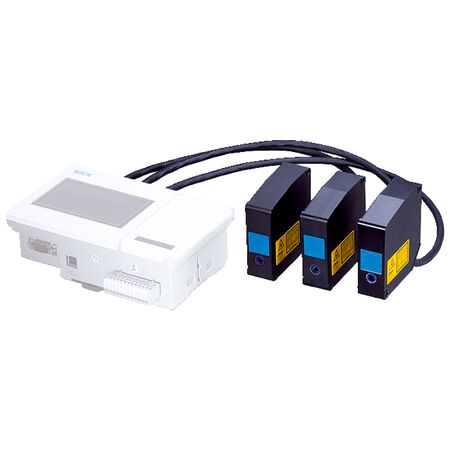

OD5-350W100 Precision Distance Sensor | 250-450 mm Range | 5 µm Repeatability | IP67 Rated | by SICK
The OD5-350W100 Precision Distance Sensor is designed for industrial automation, offering a measuring range of 250 mm to 450 mm with high repeatability of 5 µm. Its fast response time of ≥ 0.1 ms and IP67 rated enclosure make it ideal for quality control and surface inspection applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 250 mm to 450 mm
- Repeatability: 5 µm
- Linearity: ±160 µm
- Response time: ≥ 0.1 ms
- Output time: ≥ 0.1 ms
- Light source: Visible red laser, class 2
- Typical light spot size at 350 mm: 700 µm x 2400 µm
- Measuring frequency: Selectable automatic/manual from 0.1 ms to 3.2 ms
- Outputs: 3 digital (PNP/NPN), 3 analog (4-20 mA, 0-10 V)
- Supply voltage: DC 12 V to 24 V
- Enclosure rating: IP67
- Protection class: III
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -20 °C to +60 °C
- Vibration resistance: 10 Hz to 55 Hz, 1.5 mm amplitude
- Shock resistance: 50 G
- Dimensions (H x L x W): 78mm x 75mm x 29mm
- Weight: 0.25 kg
Key Features
- Measuring range from 250 mm to 450 mm
- High repeatability of 5 µm and linearity of ±160 µm
- Fast response and output time of ≥ 0.1 ms
- Visible red laser light source, laser class 2
- Selectable measuring frequency with automatic/manual sensitivity adjustment
- Mutual interference and glass thickness measurement capabilities
- IP67 rated enclosure for robust protection
- Metal (Aluminum) housing with glass window
- Multiple output types: digital (PNP/NPN), analog (4-20 mA, 0-10 V)
- Supports RS-422 serial interface; RS-232 optional via external unit
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for precise distance measurement
- Quality control in manufacturing processes
- Surface inspection and thickness measurement
- Glass thickness measurement
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable metal housing extends product lifespan reducing waste
- Low power consumption with efficient laser technology
- Robust design minimizes need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK OD5-350W100 Precision Sensor Head is available for immediate purchase, ideal for industrial automation and quality control applications.
