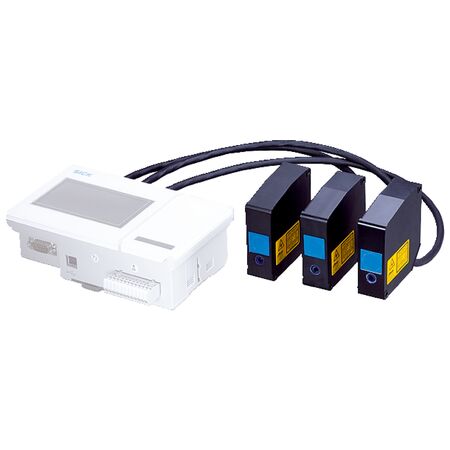

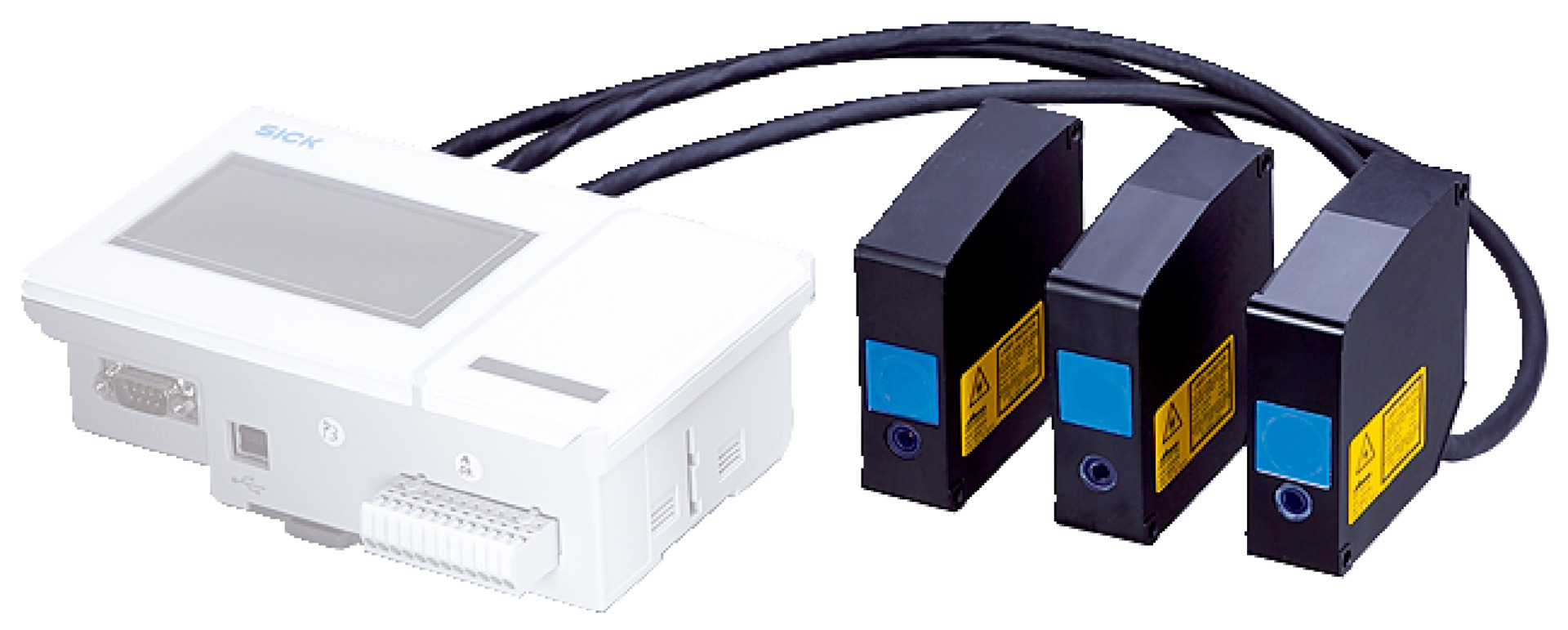

OD5-85W20 Precision Thickness Sensor | 65 mm to 105 mm Range | 1 µm Repeatability | IP67 Rated | by SICK
The OD5-85W20 Precision Thickness Sensor is designed for accurate thickness measurement of transparent materials, featuring a measuring range of 65 mm to 105 mm and a remarkable repeatability of 1 µm. With its IP67 rated enclosure, this sensor is built for industrial automation and quality control, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 65 mm to 105 mm
- Repeatability: 1 µm
- Linearity: Diffuse ± 20 µm, Specular ± 16 µm
- Response time: ≥ 0.1 ms
- Light source: Laser, visible red light
- Laser class: 2 (IEC 60825-1:2014)
- Typical light spot size at 85 mm: 260 µm x 1,200 µm
- Thickness measurement range: 2 mm to 20 mm
- Output types: 3 digital outputs (PNP/NPN), 3 analog outputs (4-20 mA, 0-10 V)
- Supply voltage: DC 12 V to 24 V
- Enclosure rating: IP67
- Protection class: III
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -20 °C to +60 °C
- Vibration resistance: 10 Hz to 55 Hz, 1.5 mm amplitude
- Shock resistance: 50 G
- Dimensions (H x L x W): 78mm x 75mm x 29mm
- Weight: 0.25 kg
Key Features
- Measuring range: 65 mm to 105 mm
- Repeatability: 1 µm
- Linearity: Diffuse ± 20 µm, Specular ± 16 µm
- Response time: ≥ 0.1 ms
- Laser class 2 visible red light source
- Thickness measurement of transparent material from 2 mm to 20 mm
- Automatic and manual sensitivity adjustment
- Mean-value setting selectable up to 4,096x
- IP67 rated enclosure for robust protection
- Metal (Aluminum) housing with glass window
- Multiple output types: digital (PNP/NPN), analog (4-20 mA, 0-10 V)
- Supports RS-422 serial communication; RS-232 optional via external unit
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Thickness measurement of transparent materials
- Industrial automation and quality control
- Use with AOD5-P/N1 or standalone via RS-422 interface
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High precision reduces material waste by ensuring accurate measurements
- Durable IP67 rated housing extends product life and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK OD5-85W20 Precision Sensor Head is available for immediate purchase, ideal for industrial and manufacturing applications requiring precise thickness measurement.
