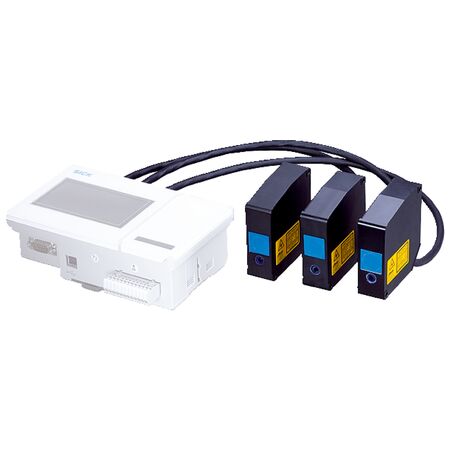

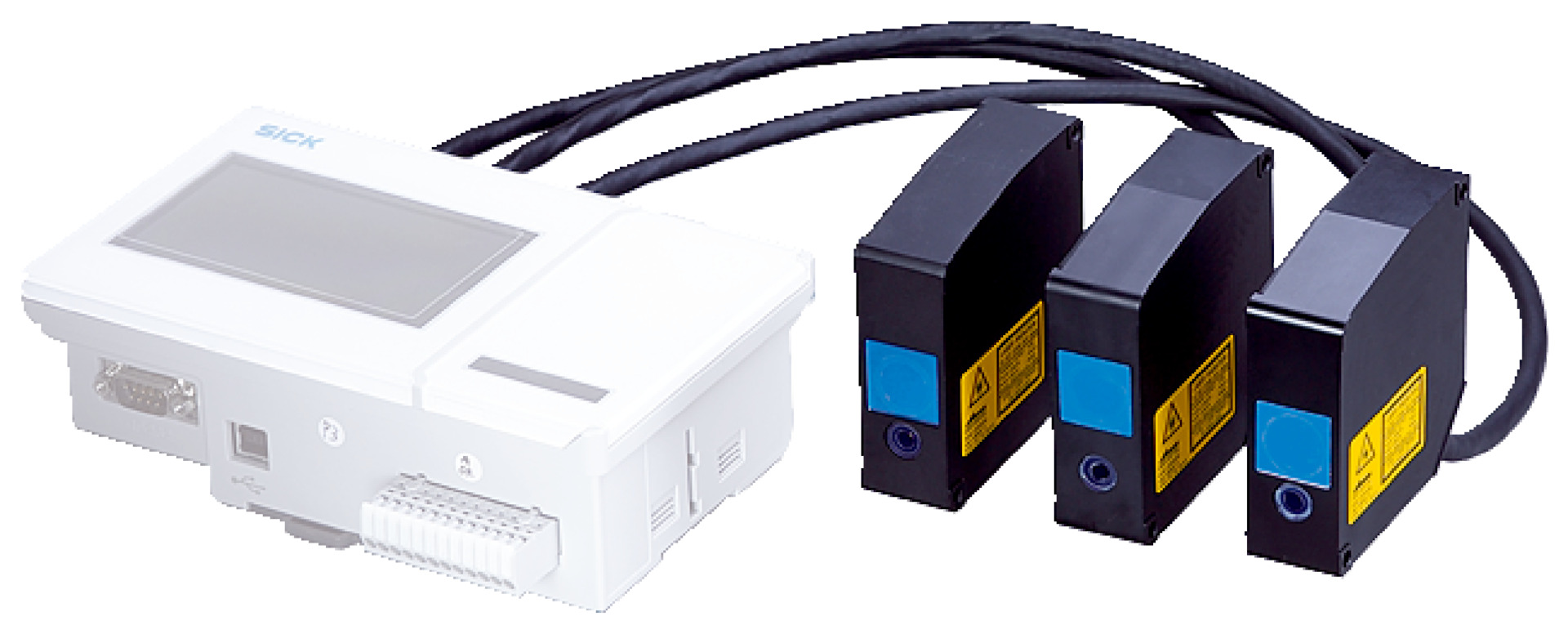

OD5 Precision Distance Sensor | 300 mm to 700 mm Range | 10 µm Repeatability | IP67 Rated | by SICK
The OD5 Precision Distance Sensor is designed for industrial automation, offering a measuring range from 300 mm to 700 mm with high repeatability of 10 µm. Ideal for quality control and inspection, this sensor features a fast response time of ≥ 0.1 ms and an IP67 rated enclosure for robust protection in challenging environments. With multiple digital and analog outputs, it ensures reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 300 mm to 700 mm
- Repeatability: 10 µm
- Linearity: ±400 µm
- Response time: ≥ 0.1 ms
- Output time: ≥ 0.8 ms
- Light source: Red visible laser light, laser class 2
- Light spot size at 500 mm: 1,000 µm x 3,700 µm
- Measuring frequency: Selectable automatic/manual from 0.1 ms to 3.2 ms
- Outputs: 3 digital (PNP/NPN), 3 analog (4-20 mA, 0-10 V)
- Supply voltage: DC 12 V to 24 V
- Enclosure rating: IP67
- Protection class: III
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -20 °C to +60 °C
- Vibration resistance: 10 Hz to 55 Hz, 1.5 mm amplitude
- Shock resistance: 50 G
- Dimensions (H x L x W): 78mm x 75mm x 29mm
- Weight: 0.25 kg
Key Features
- Measuring range from 300 mm to 700 mm
- High repeatability of 10 µm and linearity of ±400 µm
- Fast response time ≥ 0.1 ms and output time ≥ 0.8 ms
- Red visible laser light source, laser class 2
- Selectable measuring frequency from 0.1 ms to 3.2 ms
- Automatic and manual sensitivity adjustment
- Mutual interference prevention
- IP67 rated enclosure for robust protection
- Metal (Aluminum) housing with glass window
- Supports RS-422 serial interface with optional RS-232 via external unit
- Multiple digital and analog outputs with laser-off input
- Wide operating temperature range from -10 °C to +50 °C
- High vibration and shock resistance
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical wiring standards to ensure compliance and optimal sensor performance.
Applications
- Industrial automation for precise distance measurement
- Quality control and inspection of natural objects
- Glass thickness measurement
- Use in environments requiring high vibration and shock resistance
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable metal housing and long service life reduce waste and replacement frequency
- Energy-efficient laser technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK OD5-500W200 Precision Sensor Head is available for immediate purchase, ideal for industrial automation and precision measurement applications.
