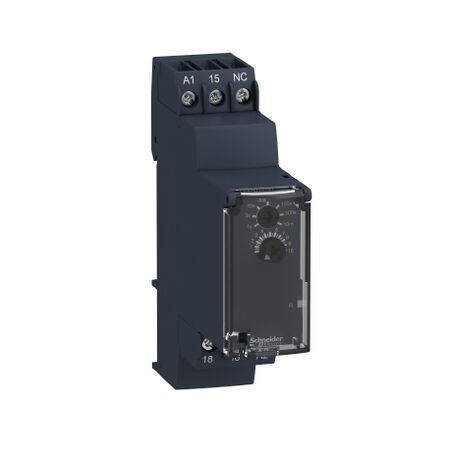

Off Delay Timer Relay | Adjustable 0.05s to 10min | 24–240V AC/DC | LED Status Indication | @Pack of 1 | by Clipsal
The Off Delay Timer Relay is designed for precise timing control, featuring an adjustable time range from 0.05 seconds to 10 minutes. With a wide supply voltage of 24–240V AC/DC and a compact DIN rail mountable design, it's perfect for industrial automation, HVAC systems, and lighting control. The LED status indication ensures easy monitoring, making it a reliable choice for any electrical installation requiring timed off-delay switching.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Off Delay Timer Relay | Adjustable 0.05s to 10min | 24–240V AC/DC | LED Status Indication | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHRE22R1KMR
Alternatively Known As: Off Delay Timer, Timer Relay, Delay Off Relay, Time Delay Relay, SCHRE22R1KMR Timer
Technical Specifications
- Function: Off-delay timing relay
- Time range: 0.05 seconds to 10 minutes (adjustable)
- Supply voltage: 24–240V AC/DC
- Output contacts: 1 changeover (C/O) relay
- Contact rating: 8A at 250V AC
- Mounting: DIN rail
- Status indication: LED
- Operating temperature: -20°C to +60°C
- Electrical life: 100,000 cycles
- Dimensions (H x L x W): 85mm x 70mm x 17.5mm
- Weight: 0.12 kg
Key Features
- Off-delay timing relay with adjustable time range from 0.05 seconds to 10 minutes
- Wide supply voltage range: 24–240V AC/DC
- 1 changeover (C/O) contact output
- Compact DIN rail mountable design
- LED status indication for easy monitoring
- High reliability and long electrical life
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local wiring rules and standards.
Applications
- Industrial automation panels
- Control circuits for machinery
- HVAC systems
- Lighting control
- Pumping systems
- General electrical installations requiring timed off-delay switching
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables energy-efficient control by automating power-off cycles
- Reduces unnecessary equipment operation, lowering energy consumption
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Off Delay Timer Relay SCHRE22R1KMR is available for immediate purchase. Ideal for industrial automation, control panels, and machinery requiring reliable off-delay timing.
