OH Earth Cable 120/50 mm2 | 2M Phase Tails | 7M Earth Tail | High Quality Copper by Cabac

BRAND: CABAC
SKU: D-712604-S
$4,202.60 List price: $5,086.60
+

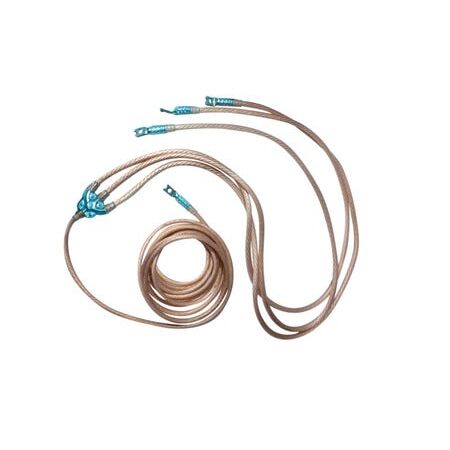

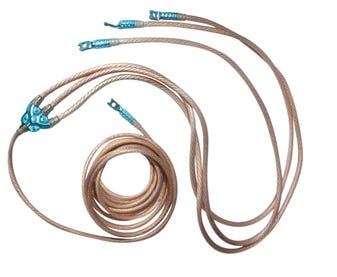

The Cabac OH Earth 120/50 mm2 Cable Set is a high-quality copper trifurcating earthing cable designed for overhead electrical earthing and bonding applications, rated for high short circuit and earth fault currents.

Product Name/Title: OH Earth 120/50 mm2 Cable

Brand: Cabac

SKU: D-712604-S

Alternatively Known As: Overhead Earth Cable 120/50 mm2, Copper Earthing Cable Set, Trifurcating Earth Cable

Technical Specifications
  • A/B/C Phase Tail: 120mm² x 2 meters
  • Earth Tail: 50mm² x 7 meters
  • Short Circuit Rating: 33.5kA for 0.5 seconds
  • Earth Fault Rating: 14.0kA for 0.5 seconds
  • Material: High quality copper with advanced rubber insulation
  • Dimensions (H x L x W): 50mm x 7000mm x 50mm
  • Weight: 3 kg
Key Features
  • German engineered ultra high quality copper trifurcating earthing cable set
  • Includes 2M A/B/C phase tails of 120mm²
  • Includes 7M earth tail of 50mm²
  • Advanced rubber moulding and insulation for durability
  • Rated to 33.5kA for 0.5 seconds short circuit
  • Rated to 14.0kA for 0.5 seconds earth fault
Professional Installation Requirements
  • Installation must be performed by a qualified electrician experienced in overhead earthing and bonding systems to ensure compliance with safety standards.
Applications
  • Electrical earthing and bonding for overhead power systems
  • Temporary portable earthing for electrical safety
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable copper construction reduces need for frequent replacements
  • Advanced insulation materials improve safety and reduce environmental hazards
Warranty Information

Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.

Available Now

The Cabac OH Earth 120/50 mm2 Cable Set is available now for immediate purchase. Ideal for electrical earthing and bonding in overhead power connectivity applications.
