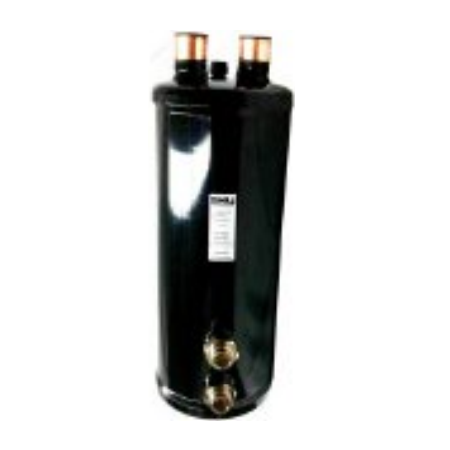

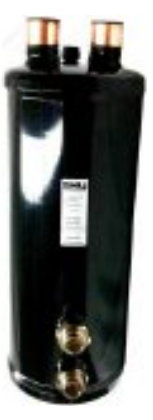

Oil Separator/Reservoir | Two-Stage Stainless Steel Membranes | Anti-Corrosion Finish | by Aspen Pumps
The Oil Separator/Reservoir is designed for efficient oil separation in HVAC and refrigeration systems, featuring two-stage stainless steel membranes and a separate oil storage compartment for optimal cooling and de-aeration. Built for industrial and commercial applications, it minimizes pressure drop to enhance plant efficiency while ensuring compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Oil Separator/Reservoir | Two-Stage Stainless Steel Membranes | Anti-Corrosion Finish | by Aspen Pumps
Brand: Aspen Pumps
SKU: 307-14-E
Alternatively Known As: Oil Separator Vessel, Oil Reservoir Tank, Refrigeration Oil Separator, HVAC Oil Separator
Technical Specifications
- Connection Size: 7/8 ID x 3/4 R/L oil return
- Height: 344 mm
- Diameter: 102 mm
- Oil Change Capacity: 500 ml
- Manufactured in accordance with ISO/AS 5149.2
- Safe Working Pressure (SWP): 4350 kPa
- Two-stage stainless steel oil separation membranes
- Anti-corrosion powder coat finish
- Solid copper connections
- Dimensions (H x L x W): 344mm x 102mm x 102mm
- Weight: 3.5 kg
Key Features
- Two-stage stainless steel oil separation membranes for efficient oil separation
- Separate oil storage compartment to allow separated oil to de-aerate and cool down
- Anti-corrosion powder coat finish with solid copper connections
- Minimal pressure drop (Pd) to improve plant efficiency
- Connection: 7/8 ID x 3/4 R/L oil return
Professional Installation Requirements
- Installation should be performed by qualified HVAC or refrigeration professionals familiar with pressure vessel safety standards and local regulations.
Applications
- Use with electronic or external level control systems in HVAC and refrigeration plants
- Industrial and commercial refrigeration systems requiring oil separation and storage
- Pressure vessel applications needing efficient oil de-aeration and cooling
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration systems safety and performance
Environmental Benefits
- Improves plant efficiency by minimizing pressure drop, reducing energy consumption
- Corrosion-resistant finish extends product life, reducing waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen SKY Pressure Vessel Oil Separator/Reservoir is available for immediate purchase, ideal for industrial and commercial refrigeration and HVAC applications.
