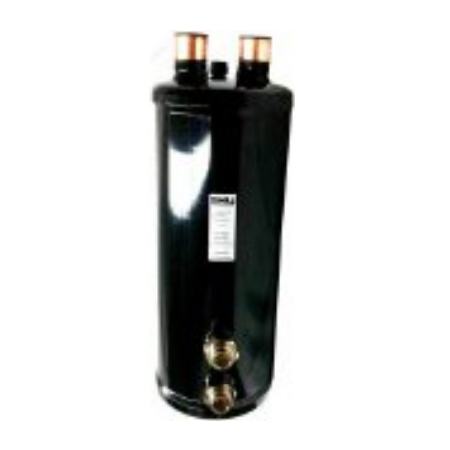

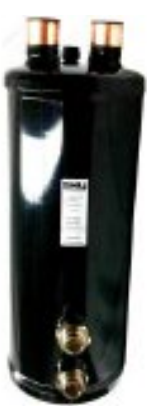

Oil Separator/Reservoir | Two-Stage Stainless Steel Membranes | Anti-Corrosion Finish | by Aspen Pumps
The Oil Separator/Reservoir is designed for efficient oil separation in HVAC and refrigeration systems, featuring two-stage stainless steel membranes and a separate oil storage compartment for optimal performance. Built for industrial and commercial applications, it minimizes pressure drop to enhance plant efficiency while ensuring compliance with ISO/AS 5149.2 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Oil Separator/Reservoir | Two-Stage Stainless Steel Membranes | Anti-Corrosion Finish | by Aspen Pumps
Brand: Aspen Pumps
SKU: 307-14-E2
Alternatively Known As: Oil Separator Vessel, Oil Reservoir Tank, HVAC Oil Separator, Refrigeration Oil Separator
Technical Specifications
- Connection: 7/8 ID x 3/4 R/L Oil return 2 x SGL
- Height: 352 mm
- Diameter: 152 mm
- Oil Change Capacity: 1250 ml
- Safe Working Pressure (SWP): 4350 kPa
- Manufactured to ISO/AS 5149.2 standards
- Anti-corrosion powder coat finish
- Solid copper connections
- Dimensions (H x L x W): 352mm x 152mm x 152mm
- Weight: 4.5 kg
Key Features
- Two-stage stainless steel oil separation membranes for efficient oil separation
- Separate oil storage compartment to allow separated oil to de-aerate and cool down
- Anti-corrosion powder coat finish with solid copper connections
- Minimal pressure drop (Pd) to improve plant efficiency
- Manufactured in accordance with ISO/AS 5149.2 with a Safe Working Pressure (SWP) of 4350 kPa
Professional Installation Requirements
- Installation should be performed by qualified HVAC or refrigeration professionals to ensure compliance with safety standards and optimal system performance.
Applications
- Use with electronic or external level control systems in HVAC and refrigeration plants
- Industrial and commercial refrigeration systems requiring oil separation and storage
- Pressure vessel applications for oil de-aeration and cooling
Standards & Compliance
- Complies with AS/NZS 5149.2 – Refrigerating systems and heat pumps – Safety and environmental requirements
Environmental Benefits
- Improves plant efficiency by minimizing pressure drop, reducing energy consumption
- Corrosion-resistant finish extends product life, reducing waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen SKY Pressure Vessel Oil Separator/Reservoir is available for immediate purchase, ideal for HVAC and refrigeration system applications requiring efficient oil separation and storage.
