Oil Separator/Reservoir | Two Stage Stainless Steel Membranes | Anti-Corrosion Finish | by Aspen Pumps

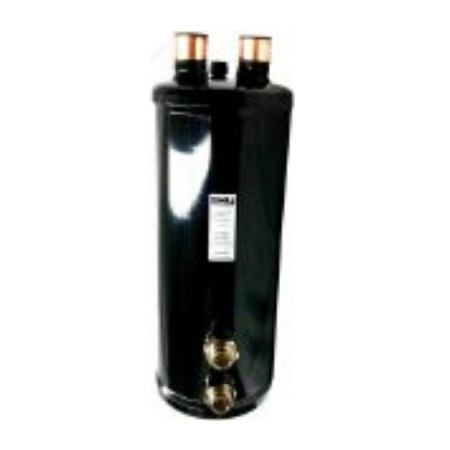

The Oil Separator/Reservoir is designed for efficient oil separation in industrial refrigeration and HVAC systems. Featuring two-stage stainless steel membranes and a separate oil storage compartment, it minimizes pressure drop to enhance plant efficiency. Built to ISO/AS 5149.2 standards, this durable unit is perfect for professional installations, ensuring reliable performance and reduced environmental impact.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Oil Separator/Reservoir | Two Stage Stainless Steel Membranes | Anti-Corrosion Finish | by Aspen Pumps
Brand: Aspen Pumps
SKU: 307-18-E
Alternatively Known As: Oil Separator Vessel, Oil Reservoir Tank, Refrigeration Oil Separator, HVAC Oil Separator
Technical Specifications
- Connection: 1 1/8 ID x 3/4 R/L Oil return
- Height: 370 mm
- Diameter: 102 mm
- Oil Change Capacity: 500 ml
- Manufactured to ISO/AS 5149.2
- Safe Working Pressure (SWP): 4350 kPa
- Two stage stainless steel oil separation membranes
- Anti-corrosion powder coat finish
- Solid copper connections
- Dimensions (H x L x W): 370mm x 102mm x 102mm
- Weight: 3.5 kg
Key Features
- Two stage stainless steel oil separation membranes
- Separate oil storage compartment for de-aeration and cooling
- Anti-corrosion powder coat finish with solid copper connections
- Minimal pressure drop to improve plant efficiency
- Manufactured in accordance with ISO/AS 5149.2 with a SWP of 4350 kPa
Professional Installation Requirements
- Installation should be performed by qualified HVAC or refrigeration professionals familiar with pressure vessel safety and local regulations.
Applications
- Use with electronic or external level control systems
- Industrial refrigeration and HVAC systems requiring oil separation
- Pressure vessel applications in commercial and industrial plants
Standards & Compliance
- Complies with AS/NZS 5149.2 – Refrigerating systems and heat pumps – Safety and environmental requirements
Environmental Benefits
- Improves plant efficiency by reducing pressure drop
- Enhances oil separation to reduce environmental contamination
- Durable anti-corrosion finish extends product life and reduces waste
Warranty Information
Standard Aspen Pumps warranty applies; typically 2 years against manufacturing defects.
Available Now
The Aspen SKY Pressure Vessel Oil Separator/Reservoir is available for immediate purchase, ideal for refrigeration and HVAC system applications.
