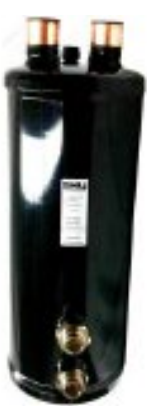

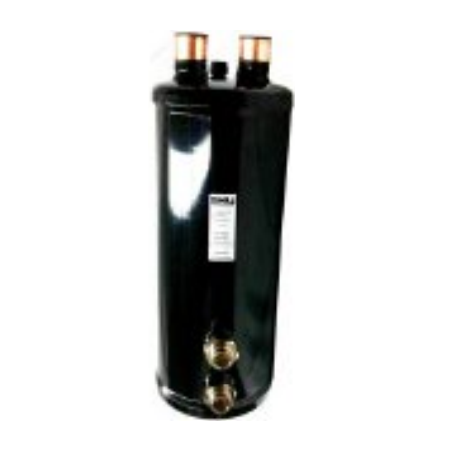

Oil Separator/Reservoir | Two-Stage Stainless Steel Membranes | Anti-Corrosion Finish | by Aspen Pumps
The Oil Separator/Reservoir is designed for efficient oil separation in HVAC and refrigeration systems, featuring two-stage stainless steel membranes and an anti-corrosion powder coat finish. Ideal for industrial and commercial applications, it enhances system longevity by preventing oil contamination and improving plant efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Oil Separator/Reservoir | Two-Stage Stainless Steel Membranes | Anti-Corrosion Finish | by Aspen Pumps
Brand: Aspen Pumps
SKU: 307-18-E1
Alternatively Known As: Oil Separator Tank, Oil Reservoir, Refrigeration Oil Separator, HVAC Oil Separator
Technical Specifications
- Connection: 1 1/8 x 1/4MSAE with one sight glass
- Height: 370mm
- Diameter: 102mm
- Oil Change Capacity: 500ml
- Manufactured in accordance with ISO/AS 5149.2
- Safe Working Pressure (SWP): 4350 kPa
- Two-stage stainless steel oil separation membranes
- Anti-corrosion powder coat finish
- Solid copper connections
- Dimensions (H x L x W): 370mm x 102mm x 102mm
- Weight: 2.5 kg
Key Features
- Minimal pressure drop to improve plant efficiency
- Two-stage stainless steel oil separation membranes
- Separate oil storage compartment for oil de-aeration and cooling
- Anti-corrosion powder coat finish with solid copper connections
Professional Installation Requirements
- Installation should be performed by qualified HVAC or refrigeration professionals familiar with pressure vessel safety and local regulations.
Applications
- Use with electronic or external level control systems in HVAC and refrigeration plants
- Industrial and commercial refrigeration systems requiring oil separation and storage
- Pressure vessel applications needing efficient oil separation and de-aeration
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration safety and environmental requirements
Environmental Benefits
- Improves plant efficiency by reducing pressure drop
- Enhances system longevity by preventing oil contamination
- Manufactured with durable materials to reduce replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen SKY Pressure Vessel Oil Separator/Reservoir is available for immediate purchase, ideal for refrigeration and HVAC systems requiring efficient oil separation and storage.
