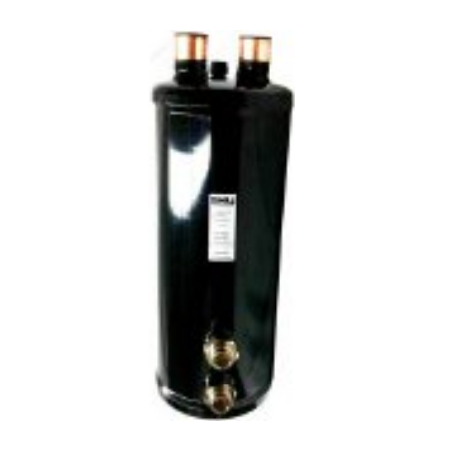

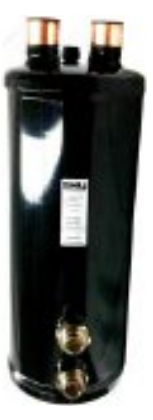

Oil Separator/Reservoir | Two-Stage Stainless Steel Membranes | Anti-Corrosion Finish | by Aspen Pumps
The Oil Separator/Reservoir is designed for efficient oil separation in refrigeration and HVAC systems, featuring two-stage stainless steel membranes and a separate oil storage compartment for optimal performance. Built to ISO/AS 5149.2 standards, it minimizes pressure drop, enhancing plant efficiency and reducing energy consumption—ideal for industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Oil Separator/Reservoir | Two-Stage Stainless Steel Membranes | Anti-Corrosion Finish | by Aspen Pumps
Brand: Aspen Pumps
SKU: 307-18-E2
Alternatively Known As: Oil Separator Vessel, Oil Reservoir Tank, Refrigeration Oil Separator, HVAC Oil Separator
Technical Specifications
- Connection: 1 1/8 ID x 3/4 R/L Oil return 2 x SGL
- Height: 352 mm
- Diameter: 152 mm
- Oil Change Capacity: 1250 ml
- Manufactured to ISO/AS 5149.2 standards
- Safe Working Pressure (SWP): 4350 kPa
- Anti-corrosion powder coat finish
- Solid copper connections
- Dimensions (H x L x W): 352mm x 152mm x 152mm
- Weight: 4.5 kg
Key Features
- Two stage stainless steel oil separation membranes for efficient oil separation
- Separate oil storage compartment to allow separated oil to de-aerate and cool down
- Anti-corrosion powder coat finish with solid copper connections
- Minimal pressure drop to improve plant efficiency
- Manufactured in accordance with ISO/AS 5149.2 with a Safe Working Pressure (SWP) of 4350 kPa
Professional Installation Requirements
- Installation should be performed by qualified refrigeration or HVAC technicians familiar with pressure vessel safety standards and local regulations.
Applications
- Use with electronic or external level control systems in refrigeration and HVAC plants
- Separation and storage of oil in pressure vessel systems
- Industrial and commercial refrigeration applications
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration safety and environmental requirements
Environmental Benefits
- Improves plant efficiency by reducing pressure drop
- Helps maintain system performance and reduces energy consumption
- Durable construction reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen SKY Pressure Vessel Oil Separator/Reservoir is available for immediate purchase, ideal for refrigeration and HVAC system maintenance and upgrades.
