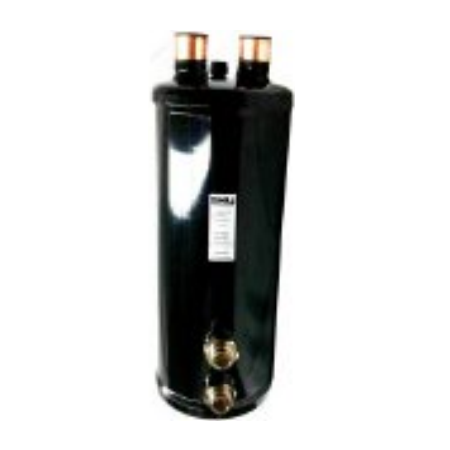

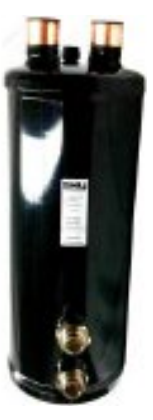

Oil Separator/Reservoir | Two-Stage Stainless Steel Membranes | Anti-Corrosion Finish | by Aspen Pumps
The Oil Separator/Reservoir is designed for efficient oil separation in HVAC and refrigeration systems, featuring two-stage stainless steel membranes and a separate oil storage compartment. Built for industrial and commercial applications, it enhances system efficiency while reducing oil contamination, ensuring longevity and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Oil Separator/Reservoir | Two-Stage Stainless Steel Membranes | Anti-Corrosion Finish | by Aspen Pumps
Brand: Aspen Pumps
SKU: 307-22-E
Alternatively Known As: Oil Separator Vessel, Oil Reservoir Tank, Refrigeration Oil Separator, HVAC Oil Separator
Technical Specifications
- Connection: 1 3/8 ID x 3/4 R/L Oil return
- Height: 352 mm
- Diameter: 152 mm
- Oil Change Capacity: 1250 ml
- Manufactured to ISO/AS 5149.2 standards
- Safe Working Pressure (SWP): 4350 kPa
- Two-stage stainless steel oil separation membranes
- Anti-corrosion powder coat finish
- Solid copper connections
- Dimensions (H x L x W): 352mm x 152mm x 152mm
- Weight: 3.5 kg
Key Features
- Two-stage stainless steel oil separation membranes for efficient oil separation
- Separate oil storage compartment to allow separated oil to de-aerate and cool down
- Anti-corrosion powder coat finish with solid copper connections
- Minimal pressure drop (Pd) to improve plant efficiency
- Manufactured in accordance with ISO/AS 5149.2 with a Safe Working Pressure (SWP) of 4350 kPa
Professional Installation Requirements
- Installation should be performed by qualified HVAC or refrigeration professionals familiar with pressure vessel safety and compliance requirements.
Applications
- Use with electronic or external level control systems in HVAC and refrigeration plants
- Industrial and commercial refrigeration systems requiring oil separation and storage
- Pressure vessel applications for oil separation and cooling
Standards & Compliance
- Complies with AS/NZS 5149.2 – Refrigerating systems and heat pumps – Safety and environmental requirements
Environmental Benefits
- Improves plant efficiency by reducing pressure drop
- Enhances oil separation to reduce oil contamination and improve system longevity
- Anti-corrosion finish extends product life, reducing waste
Warranty Information
Standard Aspen Pumps warranty applies; typically 1-2 years against manufacturing defects.
Available Now
The Aspen SKY Pressure Vessel Oil Separator/Reservoir is available for immediate purchase, ideal for commercial and industrial refrigeration and HVAC systems.
