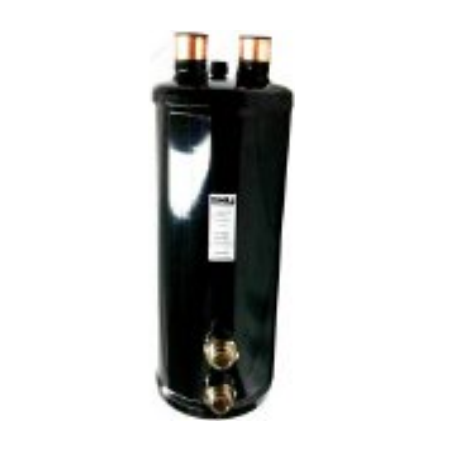

Oil Separator/Reservoir | Two-Stage Stainless Steel Membranes | Anti-Corrosion Finish | by Aspen Pumps
The Oil Separator/Reservoir is designed for efficient oil separation in HVAC and refrigeration systems, featuring two-stage stainless steel membranes and a separate oil storage compartment. Ideal for industrial and commercial applications, it enhances system efficiency and longevity while complying with ISO/AS 5149.2 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Oil Separator/Reservoir | Two-Stage Stainless Steel Membranes | Anti-Corrosion Finish | by Aspen Pumps
Brand: Aspen Pumps
SKU: 307-22-E2
Alternatively Known As: Oil Separator Tank, Oil Reservoir, Refrigeration Oil Separator, HVAC Oil Separator
Technical Specifications
- Connection: 1 3/8 inch ID x 3/4 inch R/L oil return (2 x SGL)
- Height: 352 mm
- Diameter: 152 mm
- Oil Change Capacity: 1250 ml
- Safe Working Pressure (SWP): 4350 kPa
- Manufactured to ISO/AS 5149.2 standards
- Anti-corrosion powder coat finish
- Solid copper connections
- Dimensions (H x L x W): 352mm x 152mm x 152mm
- Weight: 3.5 kg
Key Features
- Two-stage stainless steel oil separation membranes for efficient oil separation
- Separate oil storage compartment to allow separated oil to de-aerate and cool down
- Anti-corrosion powder coat finish with solid copper connections
- Minimal pressure drop to improve plant efficiency
- Manufactured in accordance with ISO/AS 5149.2 with a Safe Working Pressure (SWP) of 4350 kPa
Professional Installation Requirements
- Installation should be performed by qualified HVAC or refrigeration professionals to ensure compliance with safety standards and optimal system performance.
Applications
- Use with electronic or external level control systems in HVAC and refrigeration plants
- Separation and storage of oil in refrigeration and air conditioning systems
- Industrial and commercial refrigeration applications requiring oil separation
Standards & Compliance
- Complies with AS/NZS 5149.2 – Refrigerating systems and heat pumps – Safety and environmental requirements
Environmental Benefits
- Improves system efficiency by reducing oil contamination in refrigerant circuits
- Enhances longevity of refrigeration equipment, reducing waste and resource consumption
- Manufactured with durable materials to minimize replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen SKY Pressure Vessel Oil Separator/Reservoir is available for immediate purchase, ideal for commercial and industrial refrigeration and HVAC applications.
