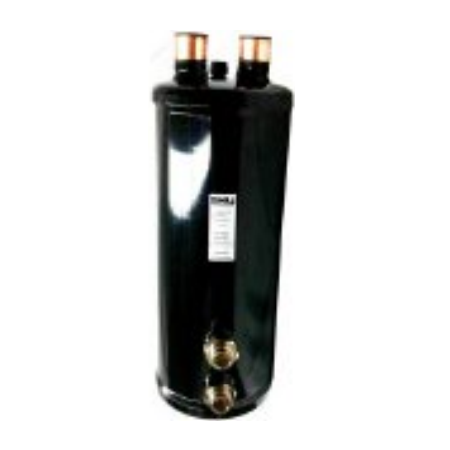

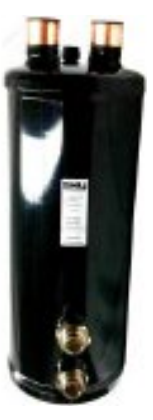

Oil Separator/Reservoir | Two-Stage Stainless Steel Membranes | Anti-Corrosion Finish | by Aspen Pumps
The Oil Separator/Reservoir is designed for efficient oil management in HVAC and refrigeration systems, featuring two-stage stainless steel oil separation membranes and an anti-corrosion powder coat finish. Ideal for industrial pressure vessel applications, it enhances oil recovery while minimizing pressure drop, ensuring optimal plant efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Oil Separator/Reservoir | Two-Stage Stainless Steel Membranes | Anti-Corrosion Finish | by Aspen Pumps
Brand: Aspen Pumps
SKU: 307-26-E
Alternatively Known As: Oil Separator Tank, Oil Reservoir, Refrigeration Oil Separator, HVAC Oil Separator
Technical Specifications
- Connection: 1 5/8 ID x 3/4 R/L Oil return
- Height: 429 mm
- Diameter: 152 mm
- Oil Change Capacity: 1250 ml
- Manufactured in accordance with ISO/AS 5149.2
- Safe Working Pressure (SWP): 4350 kPa
- Two-stage stainless steel oil separation membranes
- Anti-corrosion powder coat finish with solid copper connections
- Dimensions (H x L x W): 429mm x 152mm x 152mm
- Weight: 4.5 kg
Key Features
- Minimal pressure drop to improve plant efficiency
- Two-stage stainless steel oil separation membranes
- Separate oil storage compartment for de-aeration and cooling of separated oil
- Anti-corrosion powder coat finish with solid copper connections
Professional Installation Requirements
- Installation should be performed by qualified HVAC or refrigeration professionals familiar with pressure vessel safety and local regulations.
Applications
- Use with electronic or external level control systems in HVAC and refrigeration plants
- Oil separation and storage in industrial pressure vessel applications
- Suitable for hazardous location installations with appropriate registration
Standards & Compliance
- Complies with AS/NZS 5149.2 – Refrigerating systems and heat pumps – Safety and environmental requirements
Environmental Benefits
- Improves plant efficiency by reducing pressure drop
- Enhances oil recovery and reduces oil waste
- Corrosion-resistant finish extends product life, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to Aspen Pumps for specific warranty terms.
Available Now
The Aspen SKY Pressure Vessel Oil Separator/Reservoir is available for immediate purchase, ideal for refrigeration and HVAC system oil management applications.
