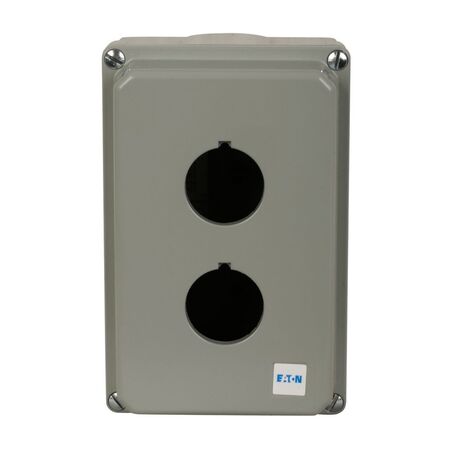

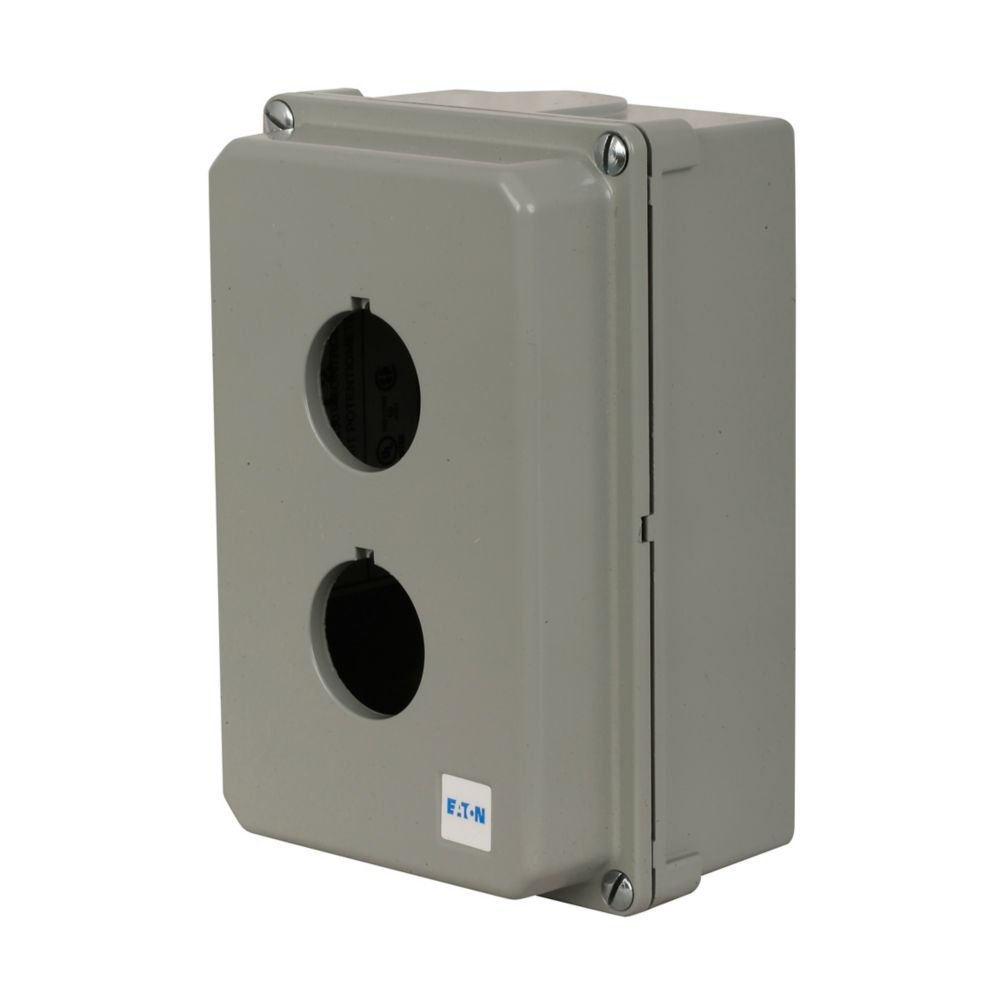

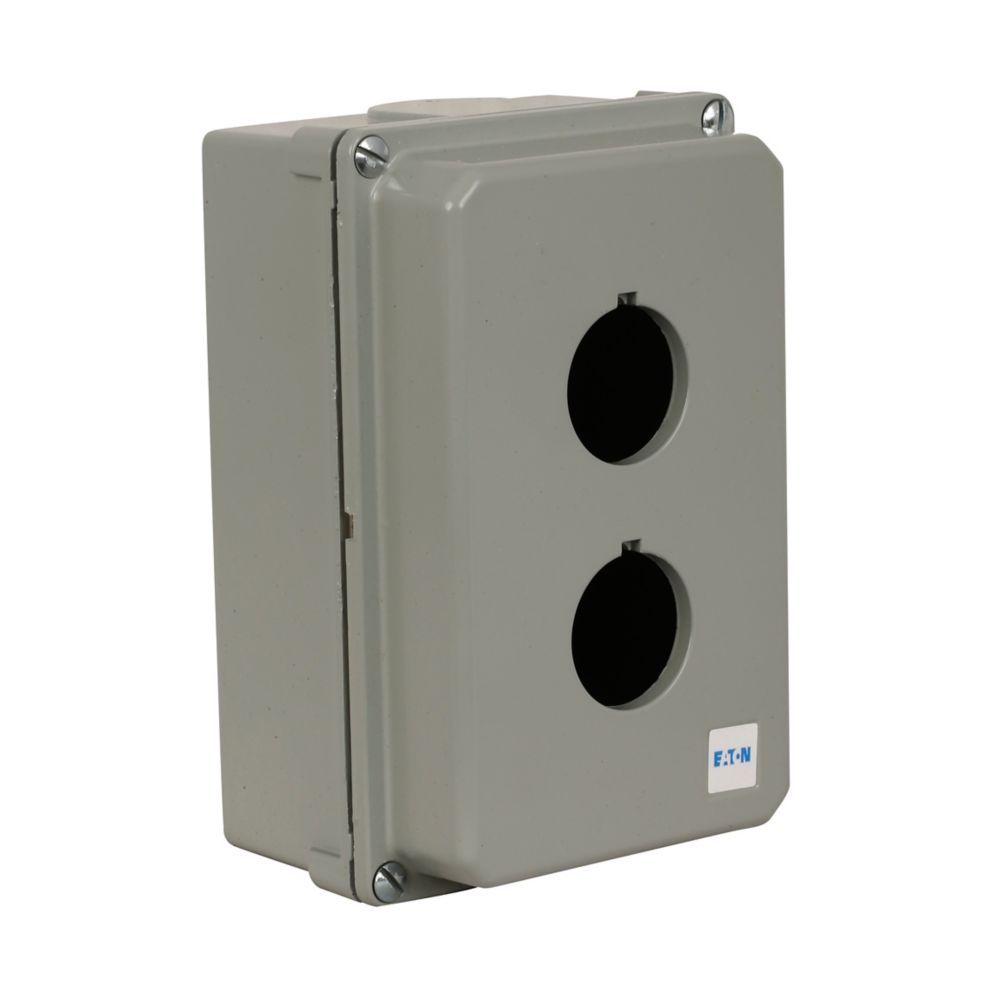

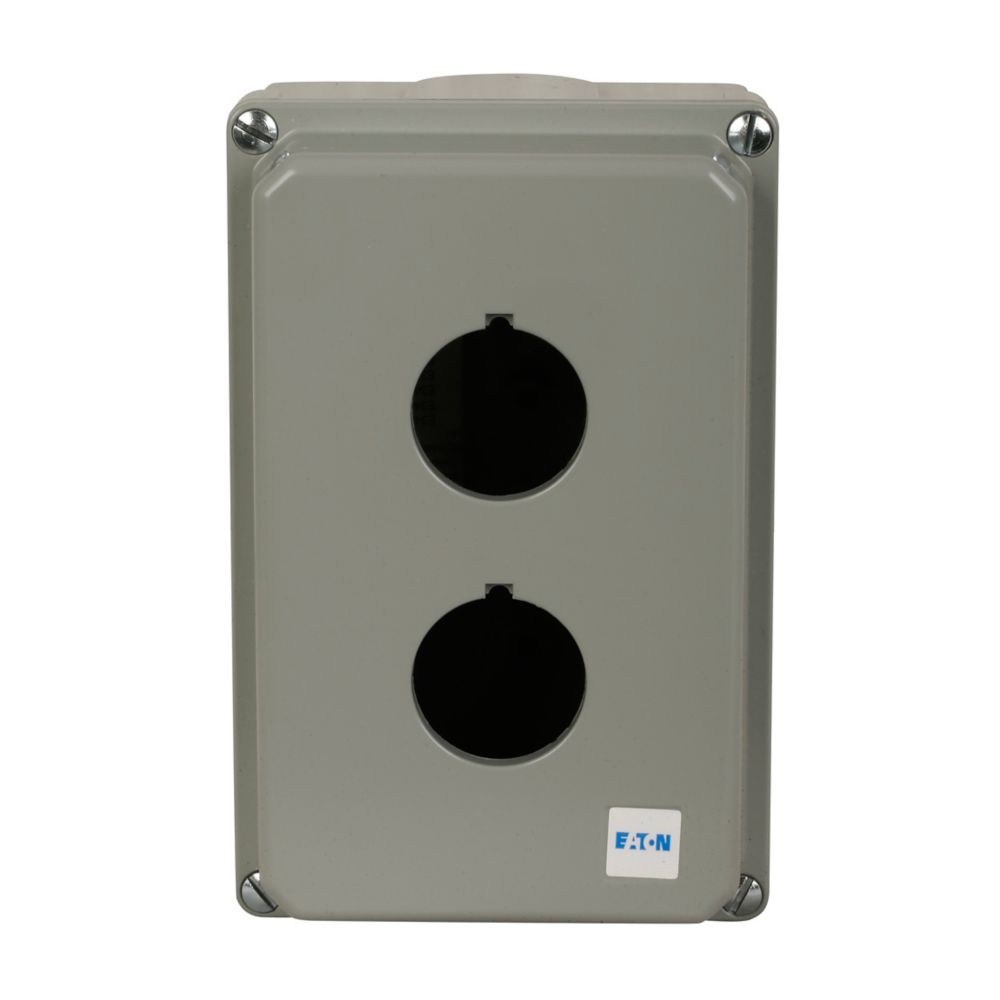

Oiltight Enclosure | Heavy-Duty Watertight Design | NEMA 4 & 12 Rated | by Eaton
The Oiltight Enclosure is designed for industrial control panels, featuring a heavy-duty watertight and oiltight construction. With NEMA 4, 12, 13, and 4X ratings, it provides superior protection against dust, water, and corrosion, making it ideal for harsh environments. Built with durable zinc die cast material, this enclosure ensures long-lasting performance and reliability for electrical equipment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Oiltight Enclosure | Heavy-Duty Watertight Design | NEMA 4 & 12 Rated | by Eaton
Brand: Eaton
SKU: 10250TN12
Alternatively Known As: Eaton 10250T Pushbutton Enclosure, Heavy-Duty Oiltight Enclosure, Watertight Electrical Enclosure
Technical Specifications
- Product Length/Depth: 6.2 in (157 mm)
- Product Height: 4.1 in (104 mm)
- Product Width: 5.2 in (132 mm)
- Product Weight: 2.95 lb (1.34 kg)
- Type: 30.5 mm, Heavy-Duty Watertight/Oiltight
- Bus Material: Zinc die cast
- Number of Elements: 2
- Mounting Method: Surface
- Rating: NEMA 4, NEMA 12, NEMA 13, NEMA 4X
- Certifications: CSA Certified, UL Listed, CE Marked
- Dimensions (H x L x W): 104mm x 157mm x 132mm
- Weight: 1.34 kg
Key Features
- Heavy-duty watertight and oiltight enclosure
- Surface mounting method
- Zinc die cast bus material for durability
- NEMA 4, 12, 13, and 4X rated for protection against dust, water, and corrosion
- Compatible with E30 pushbuttons and contact blocks
- Two element enclosure design
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper mounting.
Applications
- Industrial control panels
- Electrical equipment protection in harsh environments
- Surface mounting for pushbutton controls
- Enclosure for molded case circuit breaker handle mechanisms
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable zinc die cast construction reduces need for frequent replacements, minimizing waste.
- NEMA ratings ensure protection against environmental contaminants, extending equipment lifespan.
Warranty Information
1 year warranty.
Available Now
The Eaton Oiltight Enclosure 10250TN12 is available now for immediate purchase. Ideal for industrial and commercial electrical control applications requiring robust environmental protection.
