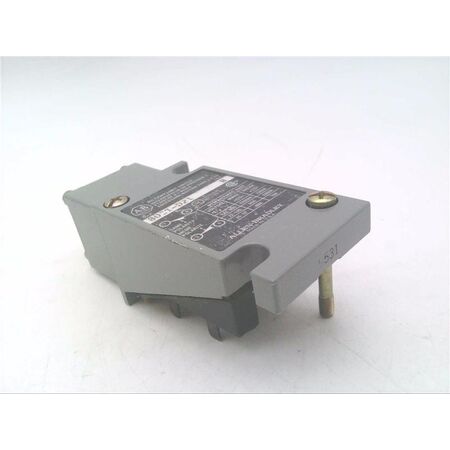

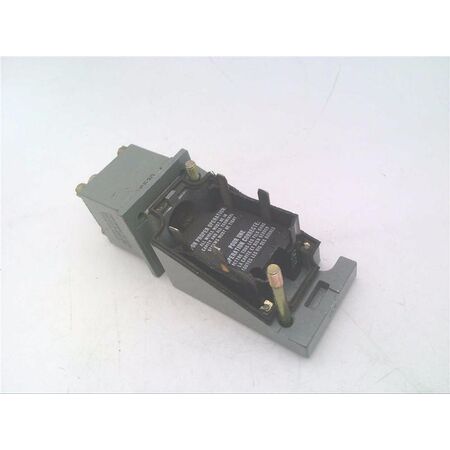

Oiltight Limit Switch | Plug-in Design | 4 Circuits with Metal Body | by Allen-Bradley
The Oiltight Limit Switch is designed for industrial automation, featuring a durable plug-in design and robust metal construction. With 4 circuits (2 Normally Open and 2 Normally Closed) and a top push roller actuator, it ensures reliable performance in harsh environments. Ideal for machinery safety and position detection, this switch operates at a high temperature limit of 110°C, making it perfect for conveyor systems and manufacturing equipment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Model: 802TDTP1
- Contact Configuration: 4 circuits (2 NO & 2 NC)
- Actuator Type: Top push roller
- Contact Type: Standard snap acting
- Temperature Rating: 110°C high temperature limit
- Torque: 5 lb in
- Actuation: Push actuation with spring return
- Switch Body: Metal
- Contact Gap: 1.4 mm and 0.7 mm
- Dimensions (H x L x W): 70mm x 40mm x 50mm
- Weight: 0.3 kg
Key Features
- Plug-in oiltight design for durability in harsh environments
- Metal construction for robust performance
- Top push roller actuator
- 4 circuits with 2 Normally Open (NO) and 2 Normally Closed (NC) contacts
- Standard snap acting contacts
- Spring return mechanism
- High temperature limit up to 110°C
- Push actuation with 5 lb in torque
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper integration and safety compliance.
Applications
- Industrial automation control systems
- Machinery safety and position detection
- Conveyor systems and manufacturing equipment
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable metal construction reduces waste by extending product lifespan
- Oiltight design prevents contamination, reducing maintenance and replacement frequency
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 802TDTP1 Plug In Oiltight Limit Switch is available now for immediate purchase. Ideal for industrial automation and machinery safety applications.
