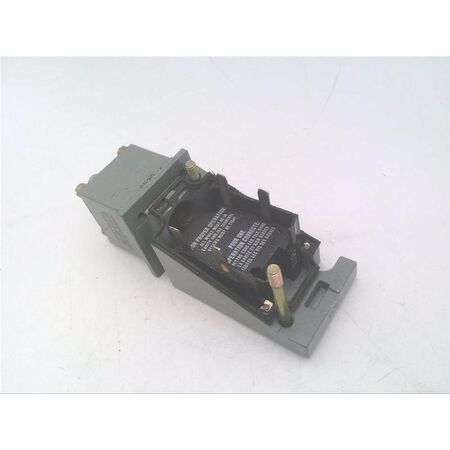

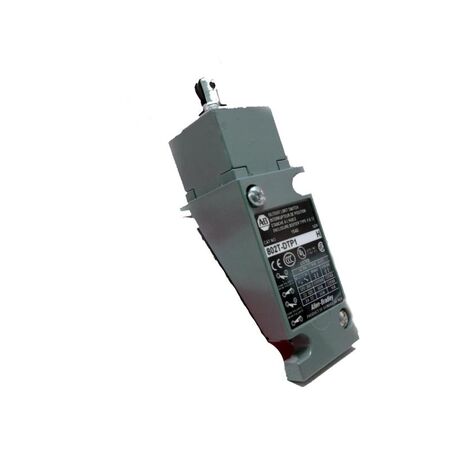

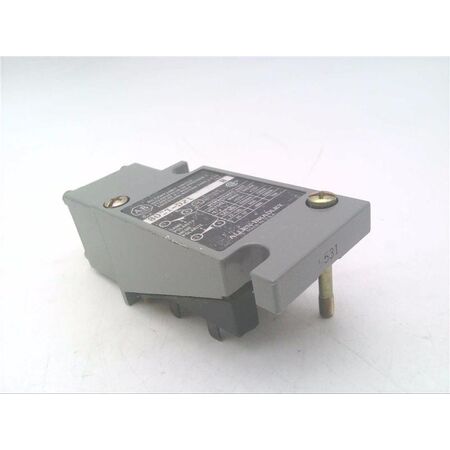

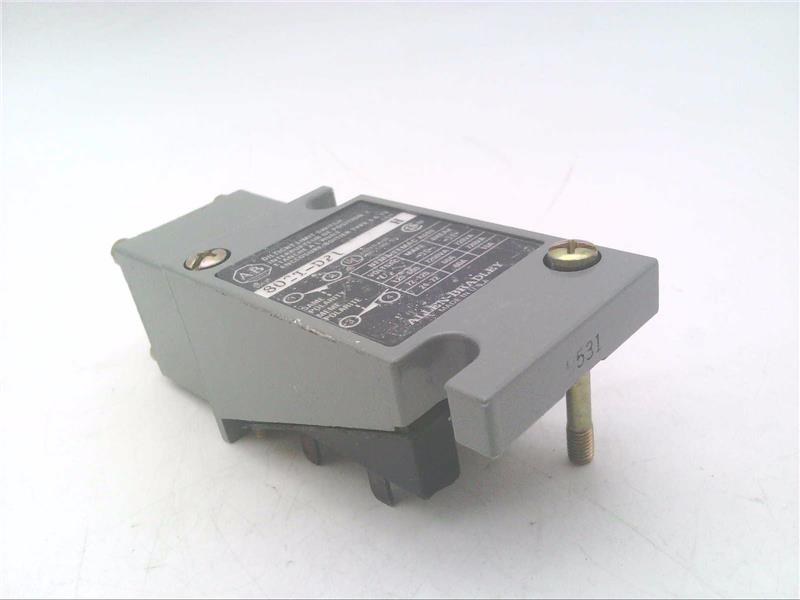

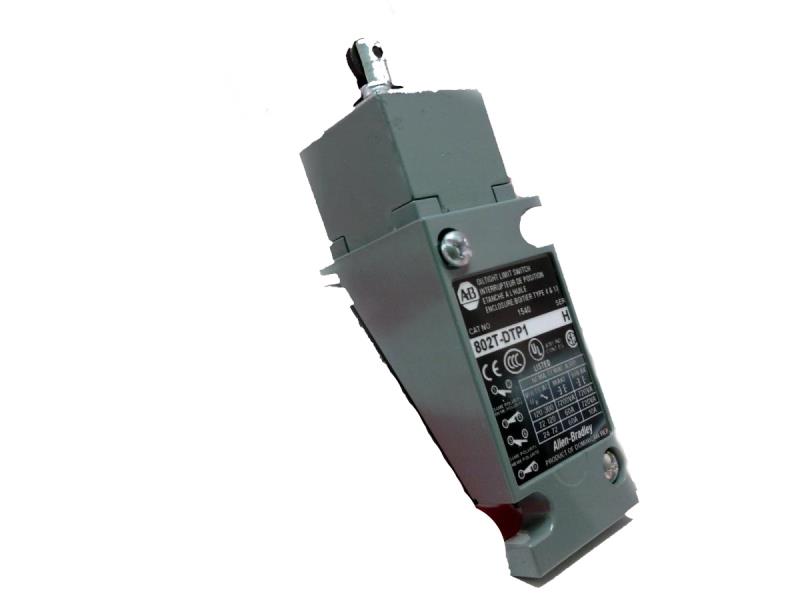

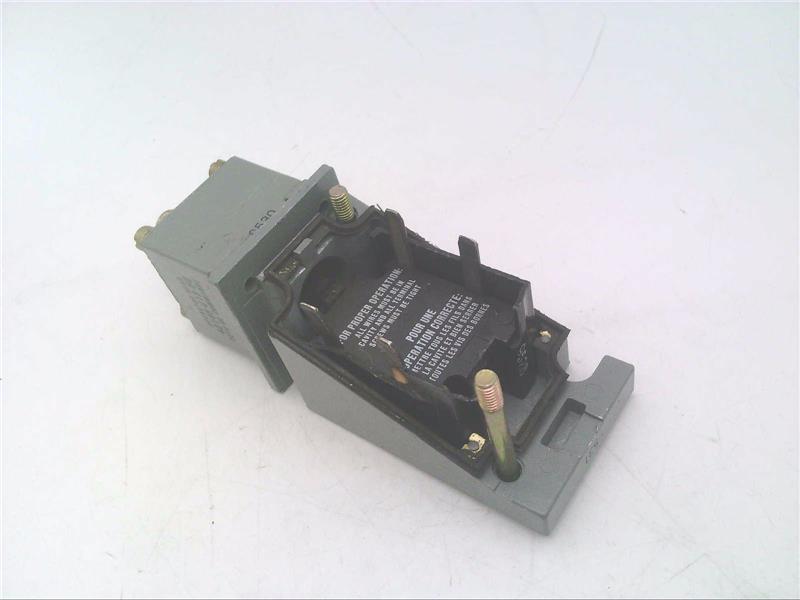

Product Name/Title: Allen-Bradley 802TDTP1 Plug In Oiltight Limit Switch
Brand: Allen-Bradley
SKU: 802TDTP1
Alternatively Known As: Oiltight Limit Switch, Plug-in Limit Switch, Industrial Limit Switch, Allen-Bradley Limit Switch 802TDTP1
Technical Specifications
- Model: 802TDTP1
- Contact Configuration: 4 circuits (2 NO & 2 NC)
- Actuator Type: Top push roller
- Contact Type: Standard snap acting
- Temperature Rating: 110°C high temperature limit
- Torque: 5 lb in
- Actuation: Push actuation with spring return
- Switch Body: Metal
- Contact Gap: 1.4 mm and 0.7 mm
- Dimensions (H x L x W): 70mm x 40mm x 50mm
- Weight: 0.3 kg
Key Features
- Plug-in oiltight design for durability in harsh environments
- Metal construction for robust performance
- Top push roller actuator
- 4 circuits with 2 Normally Open (NO) and 2 Normally Closed (NC) contacts
- Standard snap acting contacts
- Spring return mechanism
- High temperature limit up to 110°C
- Push actuation with 5 lb in torque
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper integration and safety compliance.
Applications
- Industrial automation control systems
- Machinery safety and position detection
- Conveyor systems and manufacturing equipment
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable metal construction reduces waste by extending product lifespan
- Oiltight design prevents contamination, reducing maintenance and replacement frequency
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 802TDTP1 Plug In Oiltight Limit Switch is available now for immediate purchase. Ideal for industrial automation and machinery safety applications.
