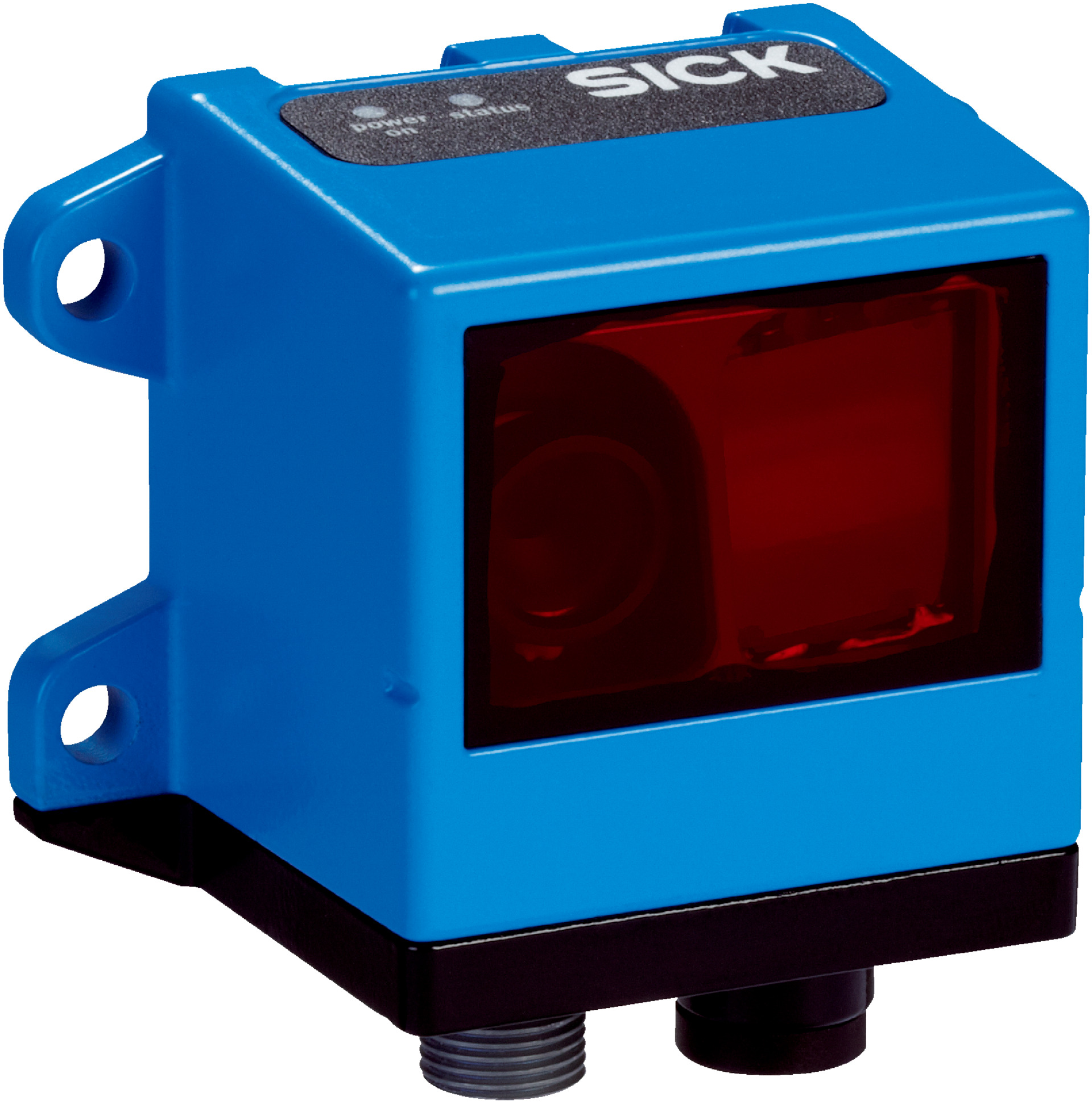

OLM100 Laser Measurement Sensor | 0 to 10,000 m Range | 0.1 mm Resolution | IP65 Rated | by SICK
The OLM100 Laser Measurement Sensor offers an impressive measuring range from 0 to 10,000 m with high resolution options of 0.1 mm and 1 mm. Designed for industrial automation, this sensor ensures precise distance measurement and quality control in manufacturing processes. With a fast output time of 1 ms and an IP65 rated enclosure, it is built to withstand harsh environments while delivering reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: OLM100 Laser Measurement Sensor | 0 to 10,000 m Range | 0.1 mm Resolution | IP65 Rated | by SICK
Brand: SICK
SKU: 1047411
Alternatively Known As: OLM100 Laser Measurement Sensor, SICK LED Distance Sensor, Industrial Distance Measurement Sensor
Technical Specifications
- Measuring range: 0 m to 10,000 m
- Resolution: 0.1 mm, 1 mm
- Repeatability: 1 mm
- Output time: 1 ms
- Light source: Red LED
- Max. movement speed: 4 m/s
- Reading distance: 100 mm ± 20 mm
- Barcode width: 30 mm
- Interface: SSI
- Supply voltage: DC 10 V to 30 V
- Ripple: ≤ 5 V pp
- Power consumption: < 3 W
- Initialization time: < 3 s
- Enclosure rating: IP65
- Protection class: III
- EMC: EN 61000-6-2 / EN 61000-6-4
- Operating temperature: –30 °C to +60 °C
- Storage temperature: –40 °C to +75 °C
- Ambient light immunity: ≤ 5,000 lx
- Vibration resistance: DIN/EN 60068-2-6, DIN/EN 60068-2-64
- Shock resistance: DIN/EN 60068-2-27
- Dimensions (H x L x W): 50mm x 150mm x 100mm
- Weight: 1.5 kg
Key Features
- Measuring range from 0 m to 10,000 m
- High resolution options of 0.1 mm and 1 mm
- Repeatability of 1 mm
- Fast output time of 1 ms
- Red LED light source
- Maximum movement speed of 4 m/s
- Reading distance of 100 mm ± 20 mm
- Barcode width compatibility of 30 mm
- IP65 rated enclosure for dust and water resistance
- Electromagnetic compatibility compliant with EN 61000-6-2 and EN 61000-6-4
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for precise distance measurement
- Quality control in manufacturing processes
- Material handling and logistics systems
Standards & Compliance
- Complies with AS/NZS 61000 series for Electromagnetic Compatibility (EMC)
Environmental Benefits
- Low power consumption under 3 W reduces energy usage
- Durable IP65 enclosure extends product life and reduces waste
- Complies with China-RoHS for hazardous substance reduction
Warranty Information
Standard manufacturer warranty applies, typically 12 months from date of purchase.
Available Now
The SICK OLM100-1001 LED Measurement Sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
