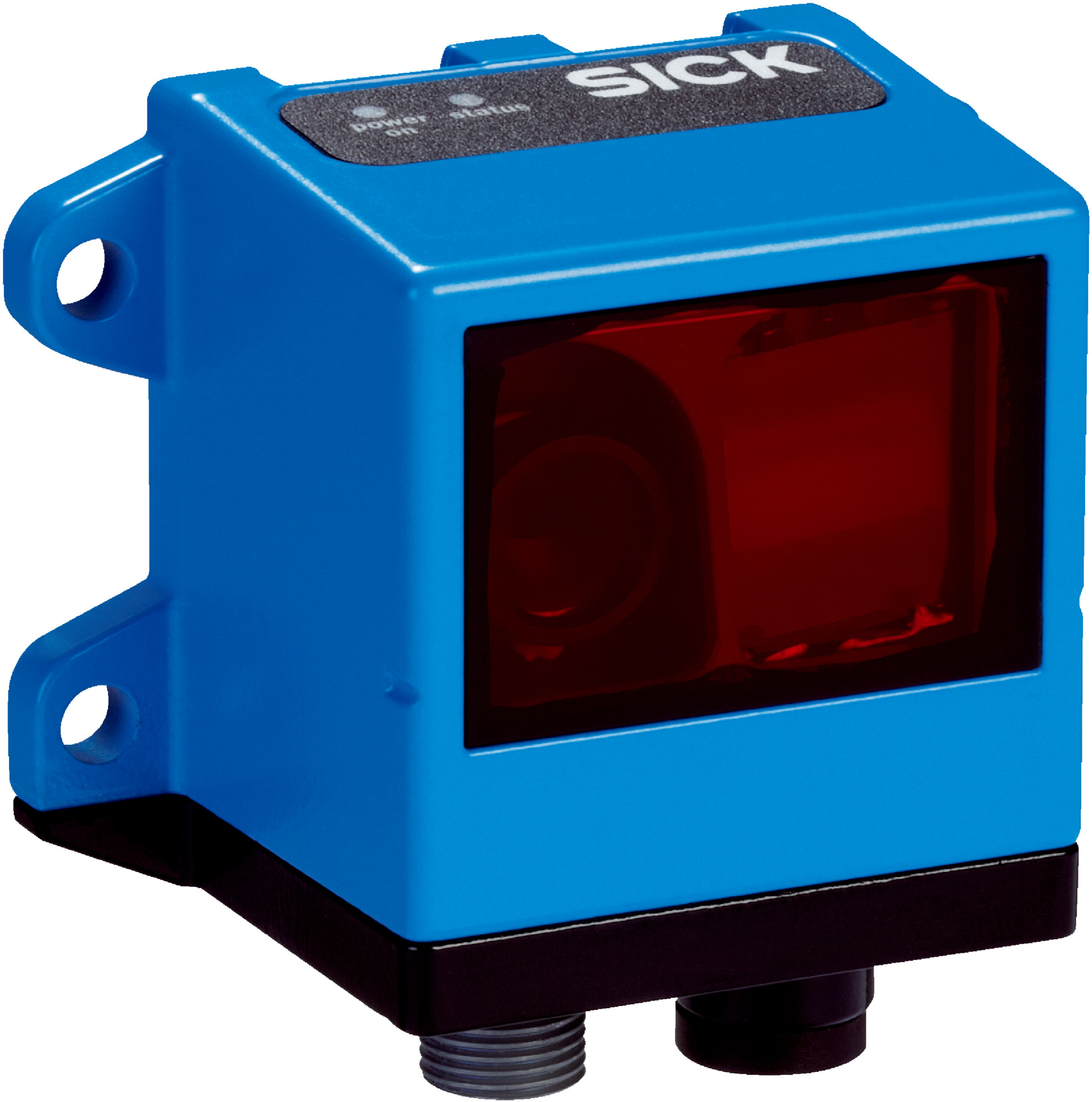

OLM100 Linear Measurement Sensor | 10,000 m Range | 0.1 mm Resolution | IP65 Rated | by SICK
The OLM100 Linear Measurement Sensor is designed for industrial automation, offering a measuring range of up to 10,000 m with high resolution of 0.1 mm. Ideal for precise position and speed measurement, this sensor features a fast response time of 10 ms and an IP65 rated enclosure for dust and water protection, making it perfect for quality control and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: OLM100 Linear Measurement Sensor | 10,000 m Range | 0.1 mm Resolution | IP65 Rated | by SICK
Brand: SICK
SKU: 1071962
Alternatively Known As: OLM100 Linear Measurement Sensor, SICK Position Sensor, Industrial Measurement Sensor
Technical Specifications
- Measuring range: 0 m to 10,000 m
- Resolution: 0.1 mm and 1 mm
- Repeatability: 0.15 mm
- Response time: 10 ms
- Light source: Red LED
- Max movement speed: 7 m/s
- Reading distance: 100 mm ± 20 mm
- Barcode width: 30 mm
- Supply voltage: DC 10 V to 30 V
- Ripple: ≤ 5 V pp
- Power consumption: < 5.5 W
- Initialization time: < 3 s
- Enclosure rating: IP65
- Protection class: III
- Electromagnetic compatibility: EN 61000-6-2 / EN 61000-6-4
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Ambient light immunity: ≤ 5,000 lx
- Vibration resistance: DIN/EN 60068-2-6, DIN/EN 60068-2-64
- Shock resistance: DIN/EN 60068-2-27
- Dimensions (H x L x W): 80mm x 200mm x 150mm
- Weight: 1.5 kg
Key Features
- Measuring range up to 10,000 m
- High resolution of 0.1 mm and 1 mm
- Repeatability of 0.15 mm
- Fast response time of 10 ms
- Red LED light source
- Maximum movement speed of 7 m/s
- Reading distance of 100 mm ± 20 mm
- Barcode width compatibility of 30 mm
- IP65 rated enclosure for dust and water protection
- Wide operating temperature range from -30 °C to +60 °C
- Electromagnetic compatibility compliant with EN 61000-6-2 and EN 61000-6-4
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper setup and compliance with electrical safety standards.
Applications
- Industrial automation for precise position and speed measurement
- Quality control in manufacturing processes
- Material handling and logistics systems
- Robotics and automated guided vehicles
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption under 5.5 W reduces energy usage
- Durable IP65 enclosure extends product life and reduces waste
- Compliant with China-RoHS ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK OLM100-1201S03 measurement sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
