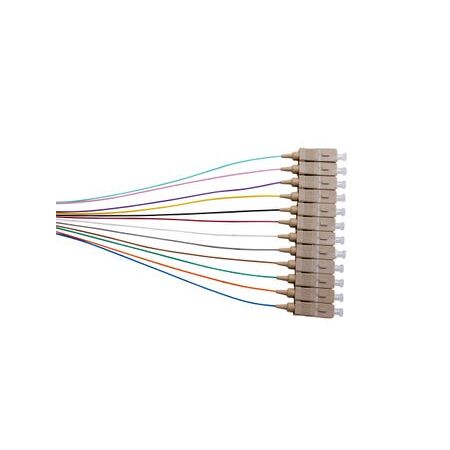

OM1 Fibre Pigtail 2m SC-Connector 12-Fibre Multi-Mode Rainbow Cabac
Cabac OM1 multi-mode fibre pigtail, 2m, SC UPC connector, 12-fibre, 900um LSZH, individually colour-coded (rainbow) per IEC 60304 TIA-598.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Fibre Type: OM1 Multimode
- Core Diameter: 62.5 microns
- Fibre Count: 12 fibres
- Connector Type: SC UPC
- Buffer Diameter: 900 microns
- Standards Compliance: TIA/EIA 492AAAA, IEC 60304, TIA-598
- Material Compliance: REACH, RoHS, SvHC
- Cable Jacket: Low Smoke Zero Halogen (LSZH)
- Dimensions (H x L x W): 20mm x 200mm x 150mm
- Weight: 0.1 kg
Key Features
- 6 or 12 Pack UPC Connector Pigtails packaged and labelled for protection, performance data, and traceability
- 900um Low Smoke Zero Halogen (LSZH) tight buffer
- Multimode fibre conforms to TIA/EIA 492AAAA
- Individual fibres coloured as per IEC 60304, TIA-598
- REACH, RoHS and SvHC materials compliant
Professional Installation Requirements
- Installation by a qualified fibre optic technician is recommended to ensure optimal performance and compliance with standards.
Applications
- Fibre optic network installations
- Data communication systems
- Telecommunications infrastructure
- Multimode fibre optic cabling projects
Standards & Compliance
- Complies with AS/NZS 3080 for Fibre Optic Cabling and Connectivity
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) materials reduce toxic emissions in case of fire
- Compliant with REACH, RoHS, and SvHC standards ensuring environmentally safe materials
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The MSS Fibre OM1 62.5um 12-Fibre SC 900um Pigtails - 12 Pack by Cabac is available now for immediate purchase. Ideal for fibre optic network and data communication installations.
