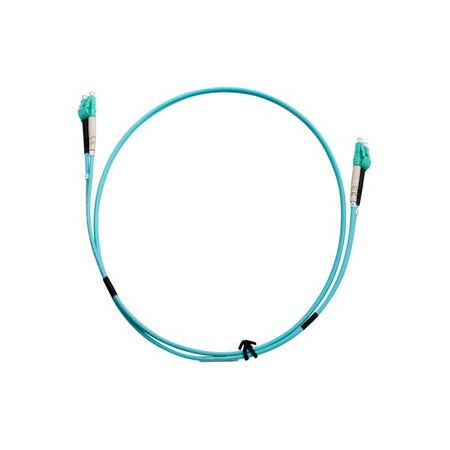

OM3 Duplex Fibre Patch Lead 0.5m LC LSZH Aqua MSS

BRAND: CABAC
SKU: DLCLC0.5M-MM3
$28.10 List price: $37.40
1 EA ($28.10 per EA)
+ −
30 Days Return Electricians Unlock Trade Access
MSS OM3 duplex fibre patch lead features LC connectors, 0.5m length, LSZH jacket. Aqua finish, ideal for fibre network installations.
Technical Specifications
  • Connector Type: Duplex Clip on LC connectors
  • Fibre Type: OM3 multimode
  • Cable Jacket: 2mm Aqua LSZH
  • Polarity: A-to-B
  • Performance Tested to IEC 11801 and ANSI/TIA 568-3
  • Standards Compliance: AS/CA S008, IEC 11801, 14763.36, ANSI/TIA 568-3, 61300-3
  • Mating Cycles: Up to 500 (IEC 61300-2-2)
  • Dimensions (H x L x W): 2mm x 500mm x 2mm
  • Weight: 0.1 kg
Key Features
  • Performance tested to numerous IEC standards to ensure performance exceeds test requirements
  • Range of connector types
  • Duplex Clip on LC connectors
  • LSZH Jacket in various colours
  • Available in OM1, OM3, OM4 and SM
  • Polarity method "A-to-B" used in all standard fibre patch leads with LC connectors having duplex clips
  • Up to 500 mating cycles (IEC 61300-2-2)
Professional Installation Requirements
  • Installation by trained fibre optic technicians is recommended to ensure optimal performance and compliance with standards.
Applications
  • Data centres
  • Telecommunications rooms
  • Fibre equipment patching
Standards & Compliance
  • AS/CA S008
Environmental Benefits
  • Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire
  • RoHS and REACH compliant ensuring reduced hazardous substances
Warranty Information

Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.

Available Now

The MSS Fibre LC - LC OM3 0.5 Metre Aqua LSZH 2mm Duplex Fibre Patch Lead is available for immediate purchase, ideal for data centre and telecommunications applications.
