Trade Discount 25%

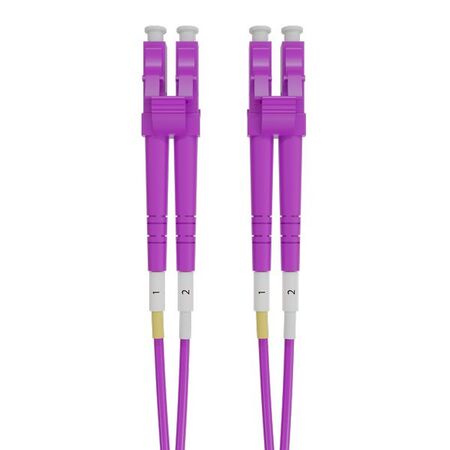

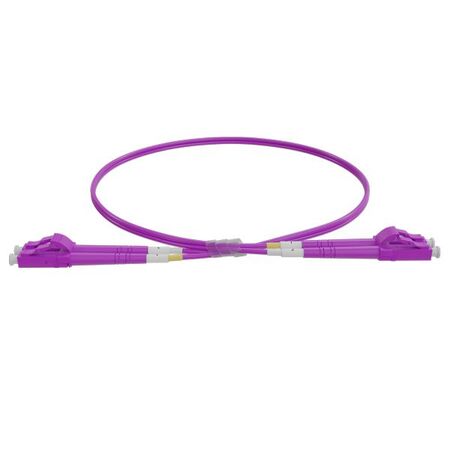

OM4 Duplex Fibre Patch Lead 0.5m LC LSZH Violet Certech
Certech OM4 duplex fibre patch lead features LC connectors, 0.5m length, LSZH jacket. Violet finish, ideal for fibre network installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Fibre Type: YOFC MaxBand 550
- Core Diameter: 50um
- Clad Diameter: 125um
- Link Length: Up to 550 metres
- Bandwidth: Minimum 4700 MHz-km
- Jacket: LSZH
- Aramid Yarn: Yes
- Dimensions (H x L x W): 15 mm x 500 mm x 15 mm
- Weight: 0.1 kg
Key Features
- Designed for 10 Gb/s serial transmission up to 550-metre link lengths.
- Compatible with both legacy 10 Mb/s applications and next-generation 10 Gb/s applications.
- Manufactured using advanced Plasma activated Chemical Vapor Deposition (PCVD) process.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and reliability.
Applications
- Networking: Ideal for 10 Gb/s Ethernet applications.
- Data Centers: Suitable for high-speed data transmission.
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- LSZH jacket reduces the release of toxic fumes in case of fire.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The LC-LC OM4 Duplex Fibre Lead, Violet LSZH Jacket - 0.5m is available now for immediate purchase. Ideal for networking and data center applications.
