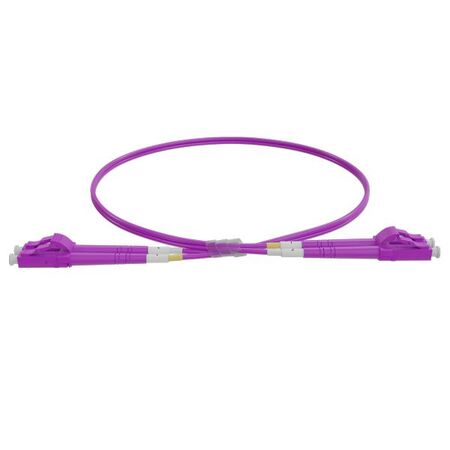

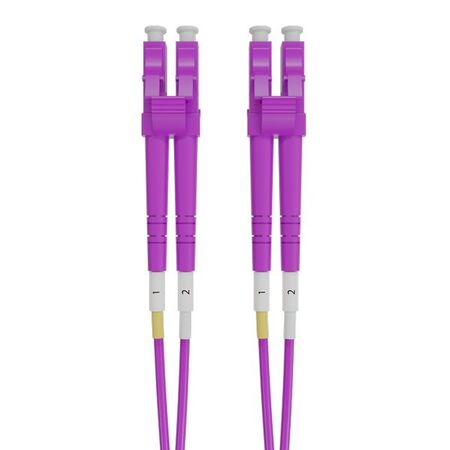

OM4 Duplex Fibre Patch Lead 10m LC LSZH Violet Certech
Certech OM4 duplex fibre patch lead features LC connectors, 10m length, LSZH jacket. Violet finish, ideal for fibre network installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Fibre Type: YOFC MaxBand 550
- Core/Clad Diameter: 50/125um
- Wavelength: 850nm
- Effective Modal Bandwidth: Minimum 4700 MHz-km
- Differential Mode Delay (DMD) controlled index profile
- Aramid Yarn for added strength
- Dimensions (H x L x W): 15 mm x 10000 mm x 15 mm
- Weight: 0.2 kg
Key Features
- Designed for 10 Gb/s Ethernet applications
- Supports up to 550-metre link lengths
- Compatible with both LED and VCSEL transmitters
- Manufactured using advanced Plasma activated Chemical Vapor Deposition (PCVD) process
Professional Installation Requirements
- Professional installation is recommended for optimal performance and reliability.
Applications
- Data centers and server rooms
- Telecommunications networks
- High-speed data transmission environments
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Low-smoke zero-halogen (LSZH) jacket reduces harmful emissions in case of fire.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The LC-LC OM4 Duplex Fibre Lead, Violet LSZH Jacket - 10m is available now for immediate purchase. Ideal for high-speed data transmission applications.
