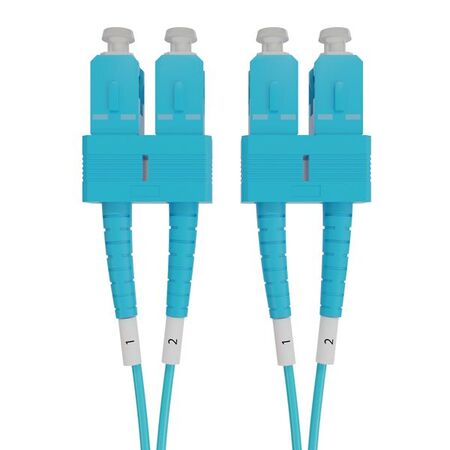

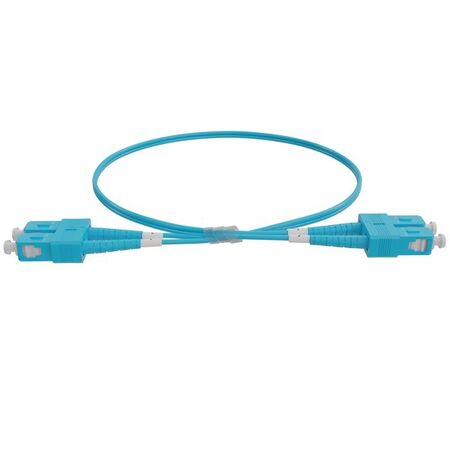

OM4 Duplex Fibre Patch Lead 20m SC LSZH Aqua Certech
Certech OM4 duplex fibre patch lead features SC connectors, 20m length, LSZH jacket. Aqua finish, ideal for fibre network installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Core Diameter: 50/125um
- Clad Diameter: 50/125um
- Effective Modal Bandwidth: Minimum 4700 MHz-km
- Differential Mode Delay (DMD) controlled index profile
- Designed for 850 nm VCSEL transmitters
- Dimensions (H x L x W): 10mm x 20000mm x 10mm
- Weight: 0.5 kg
Key Features
- 850nm laser-optimised graded-index multimode optical fibre.
- Supports up to 550-metre link lengths.
- Compatible with both 10 Gb/s and legacy 10 Mb/s applications.
- Manufactured using advanced Plasma activated Chemical Vapor Deposition (PCVD) process.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and reliability.
Applications
- Networking: Ideal for 10 Gb/s Ethernet applications.
- Data Centers: Suitable for high-speed data transmission.
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- LSZH jacket reduces the release of toxic fumes in case of fire.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The SC-SC OM4 Duplex Fibre Lead, Aqua LSZH Jacket - 20m is available now for immediate purchase. Ideal for networking and data center applications.
