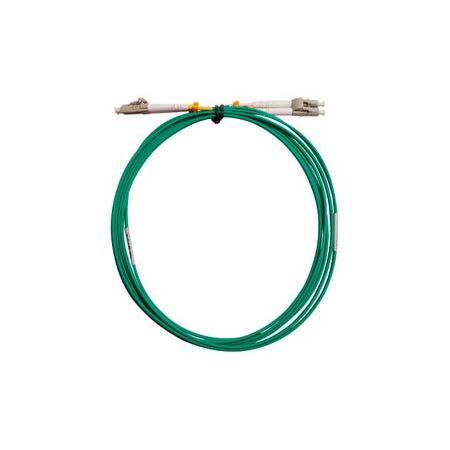

OM4 Duplex Fibre Patch Lead 3m LC LSZH Green MSS
MSS OM4 duplex fibre patch lead features LC connectors, 3m length, LSZH jacket. Green finish, ideal for fibre network installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cable Type: Duplex Fibre Optic Patch Lead
- Connector Type: LC to LC Duplex Clip connectors
- Fibre Type: OM4 Multimode
- Cable Jacket: 2mm Green LSZH
- Polarity: Method A-to-B
- Performance Tested to IEC 11801 and ANSI/TIA 568-3
- Mating Cycles: Up to 500 (IEC 61300-2-2)
- Standards Compliance: AS/CA S008, IEC 11801, 14763.36, ANSI/TIA 568-3, 61300-3, RoHS, REACH
- Dimensions (H x L x W): 3mm x 3000mm x 3mm
- Weight: 0.1 kg
Key Features
- Performance tested to numerous IEC standards to ensure performance exceeds test requirements
- Range of connector types
- Duplex Clip on LC connectors
- LSZH Jacket in various colours
- Available in OM1, OM3, OM4 and SM
- Polarity method "A-to-B" used in all standard fibre patch leads with LC duplex clips
- Up to 500 mating cycles (IEC 61300-2-2)
Professional Installation Requirements
- Installation by trained personnel familiar with fibre optic cabling and handling is recommended to ensure optimal performance and avoid damage.
Applications
- Data centres
- Telecommunications rooms
- Fibre equipment patching
- Premise cabling
Standards & Compliance
- AS/CA S008
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire
- RoHS and REACH compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty policy for details.
Available Now
The MSS Fibre LC - LC OM4 3 Metre Green LSZH 2mm Duplex Fibre Patch Lead is available for immediate purchase. Ideal for data centres, telecommunications rooms, and fibre equipment patching.
