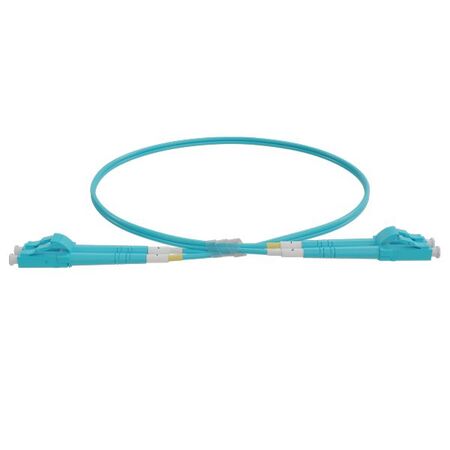

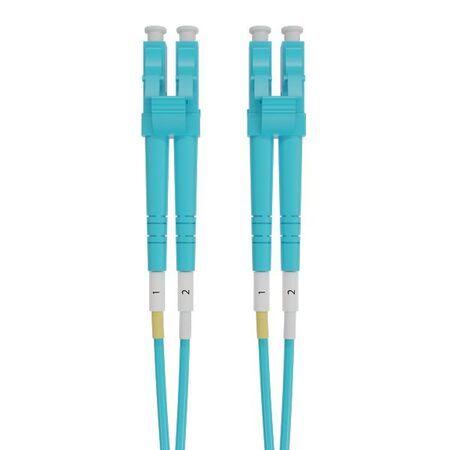

OM4 Duplex Fibre Patch Lead 7m LC LSZH Aqua Certech

BRAND: CERTECH
SKU: FLLCLCOM47
$36.80 List price: $49.00
+ −
30 Days Return Electricians Unlock Trade Access
Certech OM4 duplex fibre patch lead features LC connectors, 7m length, LSZH jacket. Aqua finish, ideal for fibre network installations.
Technical Specifications
  • Fibre Type: OM4 50/125um
  • Core Diameter: 50um
  • Clad Diameter: 125um
  • Maximum Link Length: 550m
  • Effective Modal Bandwidth: 4700 MHz-km
  • Jacket Material: LSZH
  • Aramid Yarn for strength
  • Dimensions (H x L x W): 15 mm x 7000 mm x 15 mm
  • Weight: 0.2 kg
Key Features
  • Designed for 10 Gb/s Ethernet applications
  • Supports link lengths up to 550 meters
  • Compatible with both LED and VCSEL transmitters
  • Manufactured using advanced Plasma activated Chemical Vapor Deposition (PCVD) process
Professional Installation Requirements
  • Professional installation is recommended for optimal performance and reliability.
Applications
  • Data centers and server rooms
  • Telecommunications networks
  • High-speed data transmission in commercial buildings
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • LSZH jacket reduces the release of toxic fumes in case of fire.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The LC-LC OM4 Duplex Fibre Lead, Aqua LSZH Jacket - 7m is available now for immediate purchase. Ideal for high-speed data transmission applications.

Specification Sheet (fllclcom47_u.pdf, 287 Kb) [Download]
