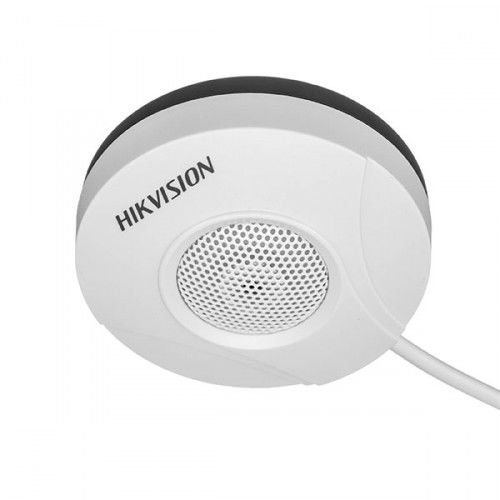

Omni Microphone High Sensitivity Hikvision
Hikvision omni microphone features high sensitivity pickup. Ideal for CCTV installs needing audio capture.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hi-Fi CCTV microphone, external omnidirectional CCTV microphone, condenser security microphone
Technical Specifications
- Microphone Type: Omnidirectional capacitor microphone
- Pickup Range: 70 m²
- Sensitivity: -34 dB
- Frequency Response: 20 Hz to 20 kHz
- Signal-to-Noise Ratio: 60 dB at 1 m; 40 dB at 10 m
- Dynamic Range: 70 dB
- Maximum Sound Pressure: 100 dB SPL
- Output Impedance: 600 ohm unbalanced
- Output Signal: 2.5 Vpp / -25 dB
- Connection: 3-wire power, audio output and ground
- Supply Voltage: 12 VDC, 9–15 VDC range
- Supply Current: Maximum 25 mA
- Operating Temperature: -25°C to 70°C
- Housing Material: PVC
- Installation: Fixed pedestal mounting
- Protection: Lightning, reverse-polarity and electrostatic protection
- Compliance Markings: RoHS, EU CE and US FCC
- Dimensions (H x L x W): 28mm x 78mm x 78mm
- Weight: 0.1 kg
Key Features
- High-sensitivity omnidirectional audio pickup
- Designed for CCTV cameras, DVRs and NVRs with audio input
- Ambient noise cancellation technology
- Built-in pre-amplifier for direct headphone drive capability
- 3-core shielded cable connection
- Wide 20 Hz to 20 kHz frequency response
- Suitable for indoor security audio installations
- Compact white and blue PVC housing
Professional Installation Requirements
- Connect only to a compatible CCTV audio input and suitable 9–15 VDC supply. Installation by a competent security technician is recommended, with audio recording configured in accordance with applicable privacy and surveillance-device requirements.
Applications
- CCTV camera audio capture
- DVR and NVR audio monitoring
- Indoor security and surveillance installations
- Retail, commercial and residential security systems
- Audio monitoring where clear omnidirectional pickup is required
Standards & Compliance
- AS/NZS 62676.1.1:2020 may apply to the CCTV video surveillance system into which the microphone is integrated; no product-specific Australian/NZ certification was identified.
Environmental Benefits
- RoHS compliant, restricting specified hazardous substances
- PVC housing and solid-state electronics support extended service life and reduced replacement waste
- Low-voltage operation with maximum power consumption of approximately 0.3 W
Warranty Information
Hikvision Australia RMA policy lists Hikvision accessories with a 36-month warranty, subject to purchase through an authorised distribution channel and the applicable sales terms.
Available Now
Available through Hikvision and authorised Australian security-equipment distributors, subject to current model and distributor stock.
