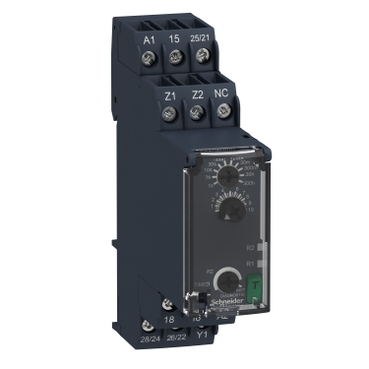

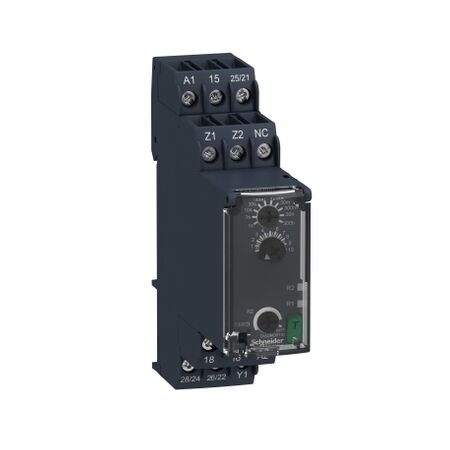

On Delay Timer Relay | 24-240V AC/DC | Adjustable Time Range | DIN Rail Mounting | @Pack of 1 | by Clipsal
The On Delay Timer Relay is designed for precise time control in various applications, featuring a versatile adjustable time range from 0.1s to 100h. With multi-voltage input and DIN rail mounting, it's perfect for industrial automation, lighting control, and HVAC systems, ensuring efficient operation and energy savings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: On Delay Timer Relay | 24-240V AC/DC | Adjustable Time Range | DIN Rail Mounting | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHRE22R2AMR
Alternatively Known As: Time Delay Relay, Delay Timer Relay, DIN Rail Timer, Automation Timer Relay, Schneider RE22R2AMR
Technical Specifications
- Type: On Delay Timer Relay
- Model: SCHRE22R2AMR
- Mounting: DIN rail
- Supply Voltage: 24-240V AC/DC
- Time Range: 0.1s to 100h (adjustable)
- Contact Configuration: 2 changeover (DPDT)
- Contact Rating: 8A at 250V AC
- Status Indication: LED
- Operating Temperature: -20°C to +50°C
- Dimensions (H x L x W): 85mm x 70mm x 17.5mm
- Weight: 0.1 kg
Key Features
- On delay timer relay for precise time control
- Multi-voltage input for flexible installation
- DIN rail mounting for easy integration
- LED status indicators for clear operation feedback
- Adjustable time range for versatile applications
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with Australian electrical standards and safe operation.
Applications
- Industrial automation panels
- Lighting control systems
- HVAC systems
- Pumping stations
- General electrical control circuits
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enhances energy efficiency by automating system shutdowns and reducing unnecessary power consumption.
- Supports optimized equipment operation, reducing wear and extending lifespan.
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal On Delay Timer SCHRE22R2AMR is available for immediate purchase. Ideal for industrial automation, lighting control, and HVAC applications.
