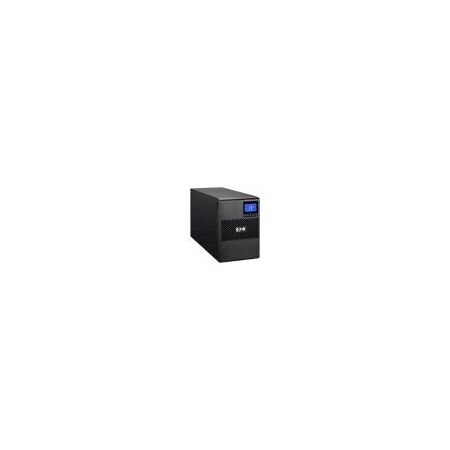

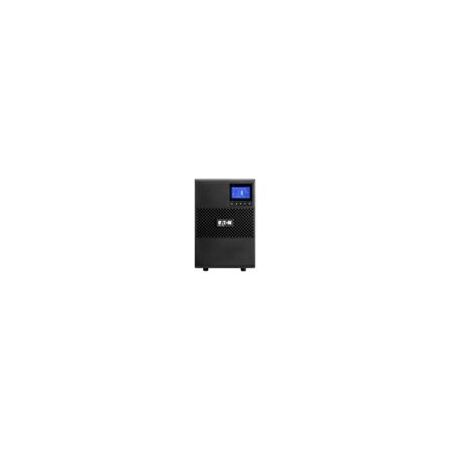

On Line Tower UPS 1500VA | 1350W Power Factor 0.9 | Hot Swappable Battery by Eaton
Eaton's On Line Tower UPS 1500VA offers 1350W power with a 0.9 power factor—ideal for protecting critical IT equipment and servers. Built for industrial and commercial use, it features a hot swappable battery for uninterrupted operation and a multilingual LCD display for easy monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: On Line Tower UPS 1500VA | 1350W Power Factor 0.9 | Hot Swappable Battery by Eaton
Brand: Eaton
SKU: 9103-63150
Alternatively Known As: Eaton 9SX UPS 1500VA, Eaton 9SX Tower UPS, Eaton 9SX 1500VA Online UPS, Eaton 9SX 1350W UPS
Technical Specifications
- VA rating: 1500 VA
- Wattage: 1350 W
- Input nominal voltage: 240V
- Input frequency range: 40-70 Hz
- Output nominal voltage: 240V AC
- Output frequency: 50/60 Hz
- Output waveform: Sine wave
- Output power factor: 0.9
- Phase (input/output): Single-phase
- Battery type: Sealed, lead-acid, hot swappable
- Noise level: <43 dB at 1 meter
- Operating temperature range: 0° to 40°C
- Relative humidity: 0-96% non-condensing
- Altitude: <1000m nominal power, 10% power degradation every 1000m up to 3000m
- User interface: Multilingual graphical LCD display
- Expansion slots: One slot for optional communication card
- Software compatibility: Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
- Dimensions (H x L x W): 252mm x 160mm x 437mm
- Weight: 18.5 kg
Key Features
- Online/Double-conversion topology for consistent power quality
- Multilingual graphical LCD display for easy monitoring
- Hot swappable sealed lead-acid battery for uninterrupted operation
- Input voltage range 190-276 Vac without derating
- Output power factor of 0.9 with sine wave output
- Internal bypass and auto shutdown function
- Expansion slot for optional communication card
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and optimal UPS performance.
Applications
- Protecting critical IT equipment and servers
- Power backup for telecommunications and networking devices
- Industrial and commercial power protection
- Data centers and office environments requiring continuous power
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Energy-efficient online double-conversion technology reduces power loss
- Extended battery capability supports longer runtime and reduces battery waste
- Supports power management software to optimize energy use
Warranty Information
Standard Eaton warranty applies; typically 2-3 years depending on region and purchase terms.
Available Now
The Eaton 9SX 1500VA/1350W On Line Tower UPS is available now for immediate purchase. Ideal for IT, industrial, and commercial power protection applications.
