On-Off Switch 20A 3 Pole Flush Mount | NEMA 12 | IP65 Rated | 400,000 Operations by Eaton
On-off switch with a 20A rating and NEMA 12/IP65 protection—ideal for branch circuits and motor disconnect applications. Built for industrial use, featuring a durable design with a mechanical lifespan of 400,000 operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: On-Off Switch 20A 3 Pole Flush Mount | NEMA 12 | IP65 Rated | 400,000 Operations by Eaton
Brand: Eaton
SKU: Y7-24639
Alternatively Known As: Eaton T0 On-Off Switch, Eaton Moeller T0 Switch, 3 Pole On-Off Switch, 20A Flush Mount Switch
Technical Specifications
- Rated operational current (Ie) at AC-21, 440 V: 20 A
- Rated breaking capacity at 220/230 V: 100 A
- Rated breaking capacity at 400/415 V: 110 A
- Rated breaking capacity at 500 V: 80 A
- Rated breaking capacity at 660/690 V: 60 A
- Rated impulse withstand voltage (Uimp): 6000 V AC
- Safe isolation: 440 V AC between contacts according to EN 61140
- Mechanical lifespan: 400,000 operations
- Operating frequency: 1200 operations per hour
- Degree of protection: NEMA 12, IP65 front side
- Shock resistance: 15 g mechanical according to IEC/EN 60068-2-27
- Terminal capacity: 18 - 14 AWG, solid or flexible with ferrule
- Tightening torque: 1 Nm for screw terminals
- Switching angle: 90 degrees
- Ambient operating temperature: -25 °C to 50 °C
- Dimensions (H x L x W): 48mm x 86mm x 48mm
- Weight: 0.108 kg
Key Features

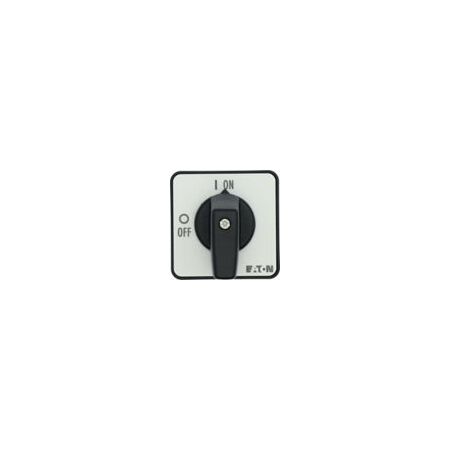

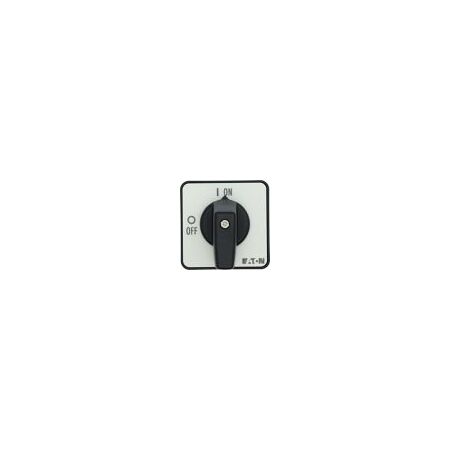

- Flush mounting design with black thumb grip and front plate
- 3 pole, 2 contact units
- Rated operational current up to 20 A
- Degree of protection: NEMA 12, IP65 front side
- Mechanical lifespan of 400,000 operations
- Operating frequency of 1200 operations per hour
- Rated impulse withstand voltage of 6000 V AC
- Safe isolation up to 440 V AC between contacts
- Shock resistance of 15 g mechanical
- Suitable for branch circuits and motor disconnect
- Switching angle of 90 degrees
- Ambient operating temperature range -25 °C to 50 °C
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Branch circuits
- Motor disconnect applications
- Front mounting 4-hole installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- High mechanical lifespan supports long-term use
Warranty Information
Warranty details available from Eaton; typically includes coverage against manufacturing defects.
Available Now
The Eaton Moeller T0 On-Off Switch 20A 3 Pole Flush Mount is available now for immediate purchase. Ideal for industrial and commercial electrical control applications.
