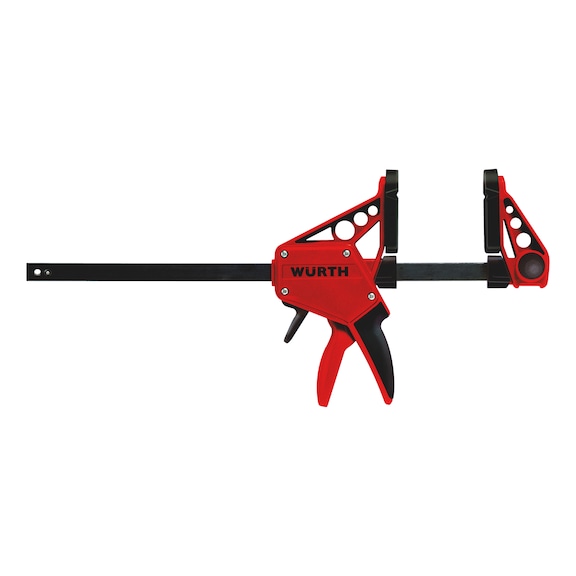

One-Handed Clamp | 150 mm Max Clamping Width | 1500 N Tension Force | Ergonomic Handle | by Wurth
The One-Handed Clamp is designed for effortless clamping and spreading with just one hand, making it ideal for woodworking, metalworking, and DIY projects. With a maximum clamping width of 150 mm and a secure clamping force of up to 1500 N, this clamp features an ergonomic handle for comfortable use and rubberized protective caps for versatile part shapes.
Sign in
Please login to continue to your account.
Product Name/Title: One-Handed Clamp | 150 mm Max Clamping Width | 1500 N Tension Force | Ergonomic Handle | by Wurth
Brand: Wurth
SKU: 714662150
Alternatively Known As: Quick-action clamp, One-hand clamp, Single-handed clamp, Wurth clamp

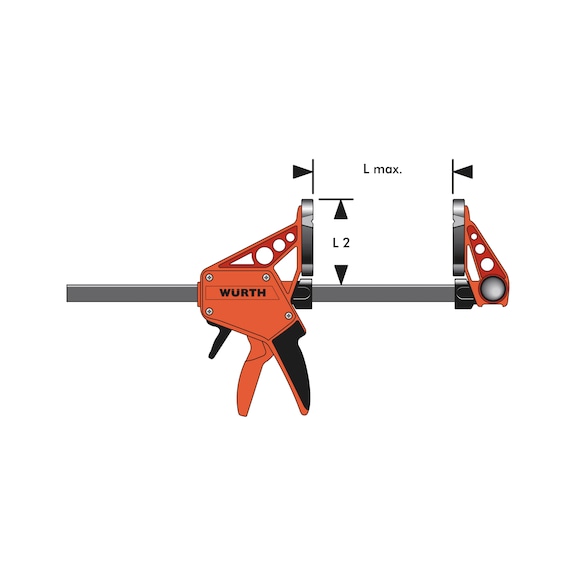

- Max. external clamping width (L1 max.): 150 mm
- Overhang (L2): 100 mm
- Profile thickness: 6 mm
- Profile width (B): 20 mm
- Tension force: 1500 N
- Max. internal clamping width (L max.): 410 mm
- Dimensions (H x L x W): 50mm x 410mm x 20mm
- Weight: 0.5 kg
- Clamp, open, and spread with just one hand
- High flexibility with various clamping capacities
- Secure clamping force up to 150 kg
- Rubberised protective caps with cross slot for diverse part shapes
- Convertible to spreading mode without tools via button press
- Ergonomic 2-component handle with essential adjustment options
- Durable fibreglass-reinforced plastic fixed and sliding bars
- No professional installation required; ready to use out of the box.
- Woodworking clamping and spreading
- Metalworking and assembly tasks
- DIY projects requiring one-handed clamp operation
- Holding round, pointed, and angular parts securely
- AS/NZS 4801 – Occupational Health & Safety Management Systems
- Durable materials reduce the need for frequent replacements
- Ergonomic design promotes efficient work reducing energy waste
Standard manufacturer warranty applies. Please refer to Wurth for specific warranty details.
The Wurth One-handed Clamp 1 PCS is available now for immediate purchase. Ideal for woodworking, metalworking, and general clamping applications.
