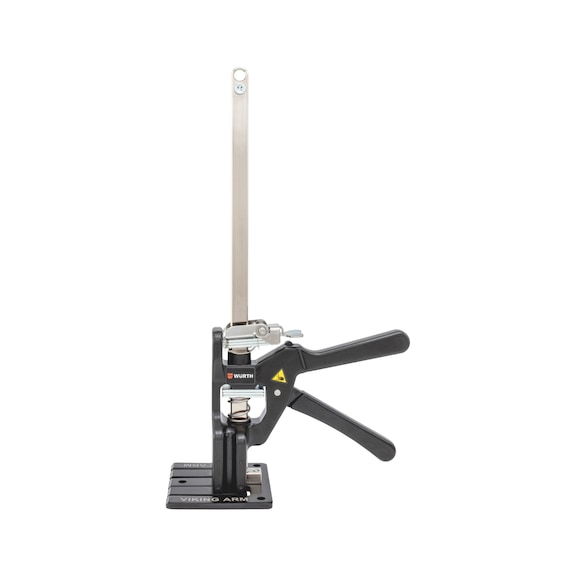

One Handed Clamp | 155-380 mm Clamping Width | 150 kg Load Limit | Easy One-Hand Operation | by Wurth

BRAND: Wurth
SKU: 714662980
$570.10 List price: $716.60
1 PCS ($570.10 per PCS)
+
The One Handed Clamp is a high-quality assembly tool designed for professional tradespersons, featuring a clamping width of 155-380 mm and a robust 150 kg load limit. With millimetre-precise adjustments and easy one-hand operation, it simplifies the installation of heavy objects, ensuring stability and efficiency in your projects.

Product Name/Title: One Handed Clamp | 155-380 mm Clamping Width | 150 kg Load Limit | Easy One-Hand Operation | by Wurth

Brand: Wurth

SKU: 714662980

Alternatively Known As: One Hand Clamp, Single Hand Clamp, Viking Arm Clamp, Professional Assembly Clamp

Technical Specifications
  • Min./max. internal clamping width: 155-380 mm
  • Max. external clamping width (L1 max.): 215 mm
  • Overhang (L2): 38 mm
  • Profile thickness: 6 mm
  • Profile width (B): 104 mm
  • Tension force: 1.5 kN
  • Max. internal clamping width (L max.): 380 mm
  • Load limit: 150 kg (50 kg with 3 mm base plates attached)
  • Dimensions (H x L x W): 38mm x 215mm x 104mm
  • Weight: 1.2 kg
Key Features
  • High-quality one-handed assembly tool
  • Millimetre-precise adjustment with improved calibration unit
  • Fast and simple installation of heavy objects with 150 kg load limit
  • High stability due to black carbon steel construction
  • Easy one-hand operation
  • Includes 3 mm base plates reducing load limit to 50 kg
  • Replacement parts available for main shaft spacer and lock release unit
Professional Installation Requirements
  • No professional installation required; designed for easy one-handed operation by tradespersons.
Applications
  • Professional tradespersons for assembly tasks
  • Raising, lowering, clamping, and spreading heavy objects
  • Installation of heavy objects up to 150 kg load limit
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable carbon steel construction reduces need for frequent replacements
  • Precision adjustment minimizes material waste during assembly
Warranty Information

Standard manufacturer warranty applies. Please refer to Wurth for specific warranty details.

Available Now

The Wurth One Handed Clamp VIKING ARM SNGLASMBYTL is available now for immediate purchase. Ideal for professional tradespersons requiring precise and stable clamping solutions.
