Online Tower UPS 10KVA/8kW | Double Conversion Topology | High Efficiency | LCD Display by Eaton
Eaton's 10KVA/8kW online tower UPS features double conversion topology and high efficiency—ideal for data centers and industrial facilities. Built for reliable power backup, it includes an LCD display for real-time monitoring and supports virtual environments like VMware and Hyper-V.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Online Tower UPS 10KVA/8kW | Double Conversion Topology | High Efficiency | LCD Display by Eaton
Brand: Eaton
SKU: 9105-32344
Alternatively Known As: Eaton 9E UPS 10kVA Tower UPS, Eaton 9E 10kVA Online UPS, Eaton 9E XL UPS, Eaton 9E 8kW UPS Tower
Technical Specifications
- Power Rating: 10 kVA / 8 kW
- Topology: Online/Double-conversion
- Input Voltage: 400V/230V hardwired
- Output Voltage: 230V nominal (220/230/240V selectable)
- Input Frequency Range: 45-66 Hz
- Output Frequency: 50/60 Hz
- Input Power Factor: >0.99
- Output Power Factor: 0.8
- Voltage Regulation: +/- 2%
- Output Waveform: Sine wave
- Communication Ports: USB (HID), Serial (RS232), Mini-terminal block
- Expansion Slots: One for optional communication card
- Noise Level: <55 dB at 1 meter
- Operating Temperature: 0° to 40°C
- Relative Humidity: 0-95% non-condensing
- Altitude: Up to 3000 m
- Efficiency: 92% at max load, 96% in eco-mode
- Battery: No internal battery, supports up to 4 external battery packs
- Internal Bypass: Yes
- Auto Shutdown Function: Yes
- Dimensions (H x L x W): 708mm x 613mm x 262mm
- Weight: 29 kg
Key Features
- Online double conversion topology for consistent power quality
- Constant monitoring and regulation of voltage and frequency
- Internal bypass for service continuity during UPS faults

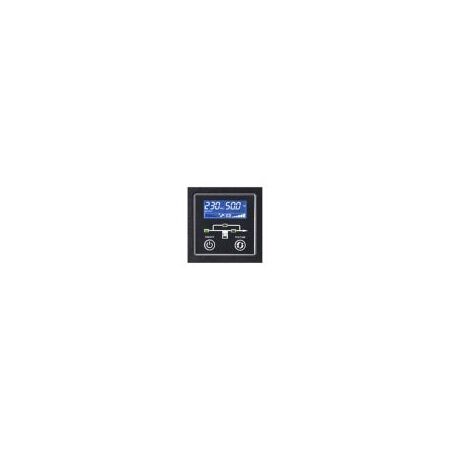

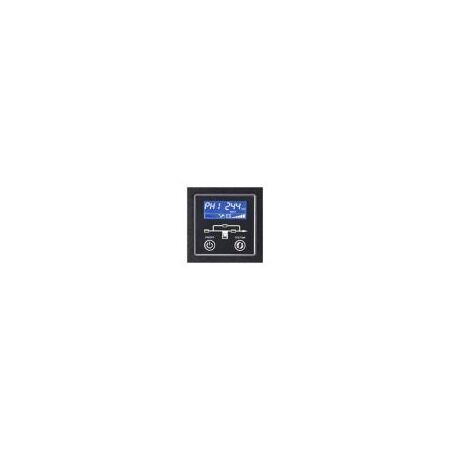

- LCD display for real-time status and measurements
- Compatible with virtual environments including VMware, Hyper-V, Citrix Xen, and Redhat
- Automatic battery test and deep discharge protection
- Communication options include USB (HID compliant), serial port (RS232), and mini-terminal block
- Potential free switch contact for remote monitoring
- Noise level less than 55 dB at 1 meter
- High efficiency: 92% at max load, 96% in eco-mode
Professional Installation Requirements
- Professional installation by a qualified electrician is required due to hardwired input and output connections and compliance with electrical safety standards.
Applications
- Data centers and server rooms requiring reliable power backup
- Industrial and commercial facilities needing continuous power supply
- IT infrastructure and virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
- Telecommunications and network equipment protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- High efficiency reduces energy consumption and operational costs
- Eco-mode operation minimizes power loss and environmental impact
- Automatic battery management extends battery life and reduces waste
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton 9E 10KVA/8kW Online Tower UPS HW XL (NO BATT) is available for immediate purchase, ideal for critical power protection in commercial and industrial environments.
