Trade Discount 20%
Online Tower UPS 10KVA/8kW | Hardwired Input | High Efficiency | 14.5 Min Runtime by Eaton
Eaton's 10KVA/8kW online tower UPS with hardwired input ensures reliable power backup for data centers and industrial applications. Built for critical power protection, it features high efficiency and a runtime of 14.5 minutes at half load, making it ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Online Tower UPS 10KVA/8kW | Hardwired Input | High Efficiency | 14.5 Min Runtime by Eaton
Brand: Eaton
SKU: 9105-32343
Alternatively Known As: Eaton 9E UPS 10kVA Tower UPS, Eaton 9E 10kVA Online UPS, Eaton 9E 8kW UPS Tower, Eaton 9E Hardwired UPS
Technical Specifications
- Power Rating: 10 kVA / 8 kW
- Input Connection: Hardwired/fixed connection
- Input Voltage: 400V/230V nominal, range 176-276 V (110-276 V with derating)
- Input Frequency Range: 45-66 Hz
- Output Voltage: 230V default (220/230/240V selectable)
- Output Frequency: 50/60 Hz
- Output Waveform: Sine wave
- Output Power Factor: 0.8
- Topology: Online/Double-conversion
- Battery Type: Sealed, lead-acid, 12 V / 9 Ah
- Battery Quantity: 20 batteries, replaceable
- Runtime: 14.5 min at half load, 6 min at full load
- Communication Interfaces: USB (HID compliant), Serial (RS232), Mini-terminal block
- Expansion Slots: One slot for optional communication card
- Noise Level: <55 dB at 1 meter
- Operating Temperature: 0° to 40°C
- Relative Humidity: 0-95% non-condensing
- Altitude: Up to 3000 m
- Efficiency: 92% at max load, 96% in eco-mode
- BTU Rating: 2456 BTU/hr
- Dimensions (H x L x W): 708mm x 613mm x 262mm
- Weight: 85.39 kg
Key Features
- Online double conversion topology for consistent power quality
- Constant monitoring and regulation of voltage and frequency
- Internal bypass for service continuity during UPS faults

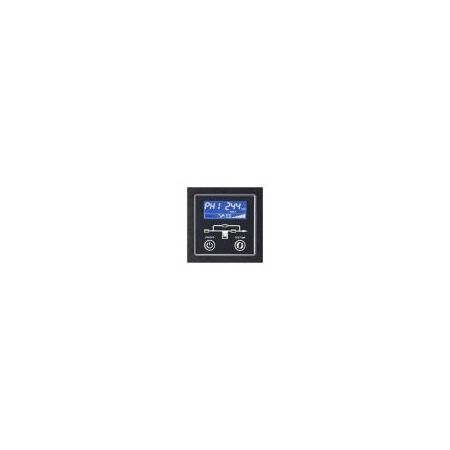

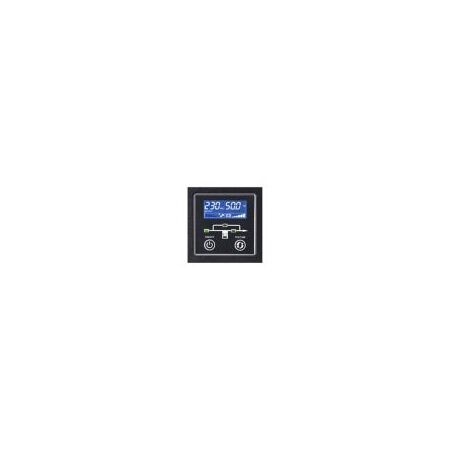

- LCD display for real-time status and measurements
- Compatible with virtual environments
- Long backup time with up to 4 optional external battery modules
- Automatic battery test and deep discharge protection
- Replaceable sealed lead-acid batteries
- Communication via USB, serial port, and optional communication card
- Potential free switch contact for remote monitoring
- Noise level under 55 dB at 1 meter
- High efficiency: 92% at max load, 96% in eco-mode
Professional Installation Requirements
- Professional installation by a qualified electrician is required due to hardwired input and output connections and compliance with electrical safety standards.
Applications
- Data centers and server rooms requiring reliable power backup
- Telecommunications equipment protection
- Industrial and commercial power protection
- Virtualized environments including VMware, Hyper-V, Citrix Xen, Redhat
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- High efficiency reduces energy consumption and operational costs
- Eco-mode operation minimizes power wastage
- Automatic battery management extends battery life and reduces waste
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton 9E 10KVA/8kW Online Tower UPS HW is available now for immediate purchase. Ideal for critical power protection in data centers, industrial, and commercial applications.
