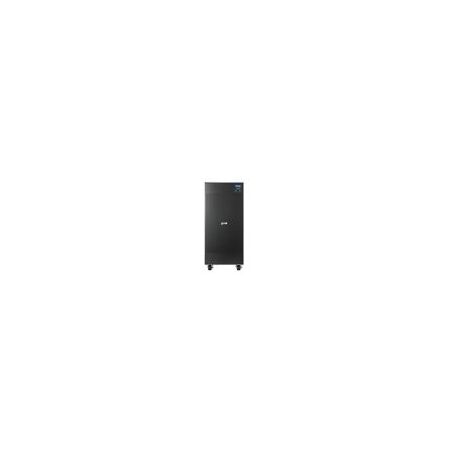

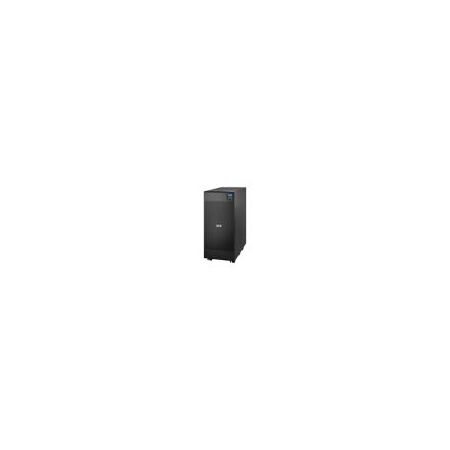

Online Tower UPS 15kVA/12kW | Double Conversion Topology | Long Backup Time | Low Noise Level | Eaton
Eaton's 15kVA/12kW online tower UPS features double conversion topology and long backup time—ideal for data centers and critical power applications. Built for industrial and commercial use, it ensures reliable power protection with low noise operation and high efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Online Tower UPS 15kVA/12kW | Double Conversion Topology | Long Backup Time | Low Noise Level | Eaton
Brand: Eaton
SKU: 9105-52106
Alternatively Known As: Eaton 9E UPS 15kVA Tower UPS, Eaton 9E 12kW Online UPS, Eaton 9E 15kVA Hardwired UPS, Eaton 9E Tower UPS
Technical Specifications
- Power Rating: 15 kVA / 12 kW
- Topology: Online Double-conversion
- Input Voltage: 400V/230V hardwired
- Output Voltage: 230V nominal (220/230/240V selectable)
- Input Frequency Range: 45-66 Hz
- Output Frequency: 50/60 Hz
- Input Power Factor: >0.99
- Output Power Factor: 0.8
- Battery Type: Sealed lead-acid, 12 V / 7 Ah
- Battery Quantity: 40 batteries
- Runtime: 16 min at half load, 6 min at full load
- Communication: USB (HID), Serial (RS232), Mini-terminal block
- Noise Level: <55 dB at 1 meter
- Operating Temperature: 0° to 40°C
- Relative Humidity: 0-95% non-condensing
- Efficiency: 93% at max load, 97% in eco-mode
- BTU Rating: 3685
- Altitude: Up to 3000 m

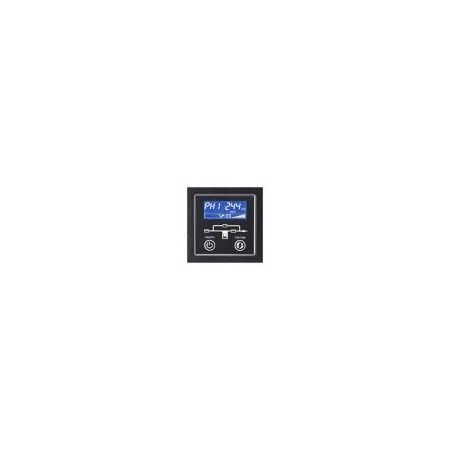

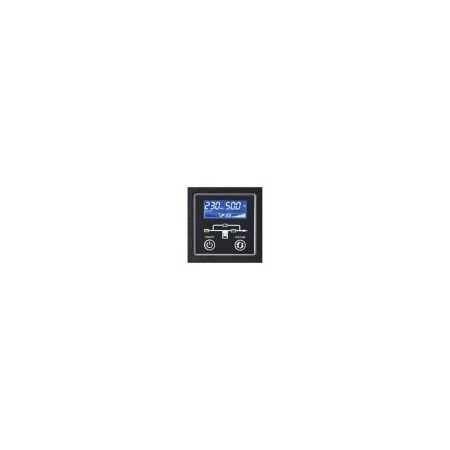

- LCD Display for status and measurements
- Internal Bypass: Yes
- Auto Shutdown Function: Yes
- Dimensions (H x L x W): 815mm x 706mm x 350mm
- Weight: 145.22 kg
Key Features
- Double conversion topology for continuous power conditioning
- Constantly monitors power conditions and regulates voltage and frequency
- Internal bypass allows service continuity in case of UPS fault
- LCD display for real-time status and measurements
- Compatible with virtual environments
- Long backup time with up to 4 optional external battery modules
- Automatic battery test and deep discharge protection
- Replaceable sealed lead-acid batteries
- Communication ports including USB, serial, and mini-terminal block
- Potential free switch contact for remote monitoring
- Low noise level under 55 dB at 1 meter
- High efficiency up to 97% in eco-mode
Professional Installation Requirements
- Professional installation by a qualified electrician is required due to hardwired input and output connections and compliance with electrical safety standards.
Applications
- Data centers and server rooms requiring reliable power backup
- Industrial and commercial facilities with critical equipment
- IT infrastructure and virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
- Telecommunications and networking equipment protection
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High efficiency reduces energy consumption and operational costs
- Eco-mode operation minimizes power loss during low load conditions
- Automatic battery management extends battery life and reduces waste
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official documentation for detailed warranty terms.
Available Now
The Eaton 9E 15KVA/12kW Online Tower UPS HW is available now for immediate purchase. Ideal for critical power protection in data centers, industrial, and commercial applications.
