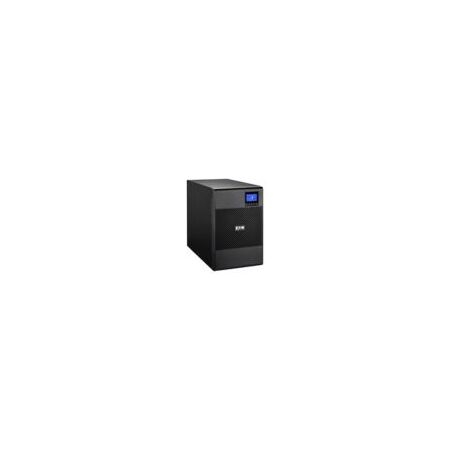

Online Tower UPS 2000VA/1800W | Hot Swappable Battery | Multilingual LCD Display | 240V by Eaton
Eaton's Online Tower UPS offers 2000VA/1800W power with a hot swappable battery and multilingual LCD display—ideal for data centers and critical systems. Built for reliable power backup, it features energy-efficient technology and a wide input voltage range for optimal performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Online Tower UPS 2000VA/1800W | Hot Swappable Battery | Multilingual LCD Display | 240V by Eaton
Brand: Eaton
SKU: 9103-73922
Alternatively Known As: Eaton 9SX UPS 2000VA Tower, Eaton 9SX 2000VA UPS, Eaton 9SX Online UPS 1800W, Eaton 9SX Tower UPS 240V
Technical Specifications
- Topology: Online/Double-conversion
- Form factor: Tower, free standing
- VA rating: 2000 VA
- Wattage: 1800 W
- Input nominal voltage: 240V
- Input frequency range: 40-70 Hz
- Output nominal voltage: 240V AC
- Output waveform: Sine wave
- Output frequency: 50/60 Hz
- Output power factor: 0.9
- Input voltage range: 200-276 Vac without derating, 140-276 Vac with derating
- Battery type: Sealed, lead-acid, hot swappable
- Receptacles: AUS 10A x 5, IEC C19 x 1
- Noise level: <45 dB at 1 meter
- Operating temperature range: 0° to 40°C
- Relative humidity: 0-96% non-condensing
- Altitude: <1000m nominal power, 10% power degradation every 1000m up to 3000m
- Expansion slots: One slot for optional communication card
- User interface: Multilingual graphical LCD display
- Software compatibility: Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
- Dimensions (H x L x W): 346mm x 214mm x 412mm
- Weight: 33.3 kg
Key Features
- Online/Double-conversion topology for continuous power conditioning
- Multilingual graphical LCD display for easy monitoring
- Hot swappable sealed lead-acid battery for uninterrupted operation
- Internal bypass for maintenance without power interruption
- Extended battery capability with optional expansion slots
- Compatible with Eaton Intelligent Power Manager and Intelligent Power Protector software
- Low noise level under 45 dB at 1 meter
- Wide input voltage range 200-276 Vac without derating
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and optimal UPS performance.
Applications
- Data centers and server rooms requiring reliable power backup
- Telecommunications equipment protection
- Medical and laboratory equipment power continuity
- Industrial and commercial critical systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient online double-conversion technology reduces power loss
- Extended battery life reduces waste and replacement frequency
- Supports power management software to optimize energy use
Warranty Information
Standard Eaton warranty applies; typically 2-3 years depending on region and purchase terms.
Available Now
The Eaton 9SX 2000VA/1800W On Line Tower UPS is available now for immediate purchase. Ideal for critical power protection in data centers, telecommunications, medical, and industrial applications.
