Online Tower UPS 20kVA/16kW | 400V Input | Eco-Mode Efficiency | Low Noise by Eaton
Eaton's 20kVA/16kW online tower UPS offers 400V input and eco-mode efficiency—ideal for data centers and industrial applications. Built for critical power protection, it features low noise operation and continuous power conditioning.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

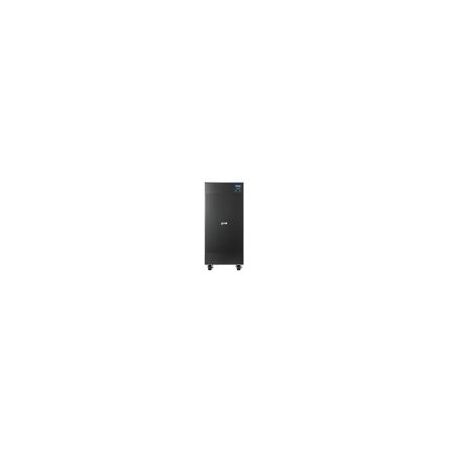

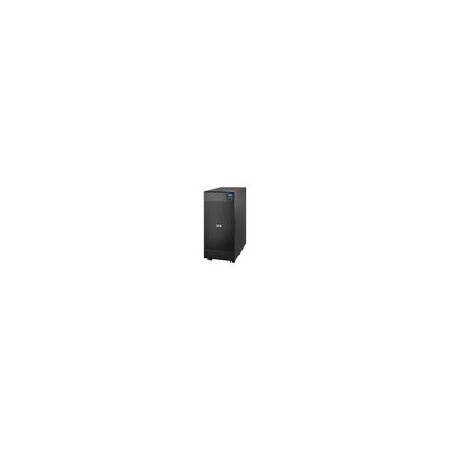

Product Name/Title: Online Tower UPS 20kVA/16kW | 400V Input | Eco-Mode Efficiency | Low Noise by Eaton
Brand: Eaton
SKU: 9105-62202
Alternatively Known As: Eaton 9E UPS 20kVA Tower UPS, Eaton 9E 20kVA Online UPS, Eaton 9E XL UPS Tower, Eaton 9E HW XL UPS
Technical Specifications
- Power Rating: 20 kVA / 16 kW
- Input Voltage: 400V/230V hardwired
- Output Voltage: 230V nominal (220/230/240V selectable)
- Input Frequency Range: 45-66 Hz
- Output Frequency: 50/60 Hz
- Input Power Factor: >0.99
- Output Waveform: Sine wave
- Topology: Online double-conversion
- Form Factor: Tower, free standing
- Communication Ports: USB (HID), Serial (RS232), Mini-terminal block
- Expansion Slots: One for optional communication card
- Noise Level: <55 dB at 1 meter
- Operating Temperature: 0° to 40°C
- Relative Humidity: 0-95% non-condensing
- Altitude: Up to 3000 m
- Efficiency: 93% at max load, 97% in eco-mode
- Battery: No internal battery included, supports up to 4 external battery packs
- Input Phase: 1 or 3
- Output Phase: 1
- Voltage Distortion (linear load): Max 3%
- Dimensions (H x L x W): 815mm x 706mm x 350mm
- Weight: 48 kg
Key Features
- Online double-conversion topology for continuous power conditioning
- Constant monitoring and regulation of voltage and frequency
- Internal bypass for service continuity during UPS faults

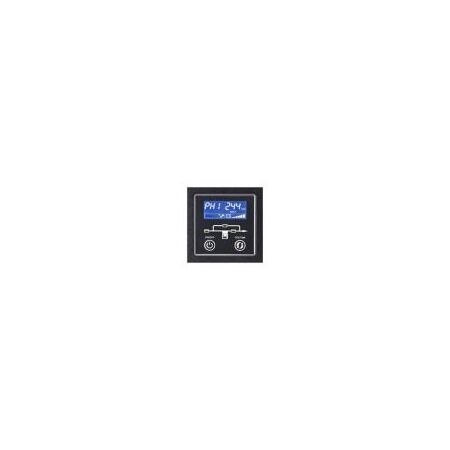

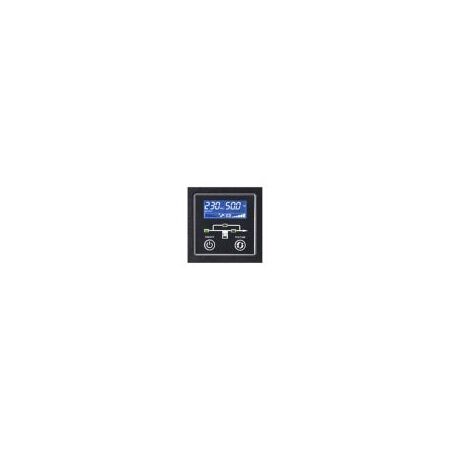

- LCD display for real-time status and measurements
- Compatible with virtual environments
- Automatic battery test and deep discharge protection
- Communication options include USB, serial port, and mini-terminal block
- Potential free switch contact for remote signaling
- Noise level less than 55 dB at 1 meter
- High efficiency: 93% at max load, 97% in eco-mode
Professional Installation Requirements
- Professional installation by a qualified electrician is required due to hardwired input and output connections and compliance with electrical safety standards.
Applications
- Data centers and server rooms
- Telecommunications equipment
- Industrial and commercial power protection
- Virtualized environments (VMware, Hyper-V, Citrix Xen, Redhat)
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- High efficiency reduces energy consumption and operational costs
- Eco-mode operation minimizes power loss during low load conditions
- Automatic battery management extends battery life and reduces waste
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton 9E 20KVA/16kW Online Tower UPS HW XL (NO BATT) is available now for immediate purchase. Ideal for critical power protection in data centers, industrial, and commercial environments.
