Online Tower UPS 20kVA/16kW | Hardwired Input | Eco-Mode Efficiency | Low Noise by Eaton
Eaton's 20kVA/16kW online tower UPS ensures reliable power backup with hardwired input and eco-mode efficiency—ideal for data centers and critical power needs. Built for industrial and commercial applications, it features low noise operation and long backup time with optional external battery modules.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

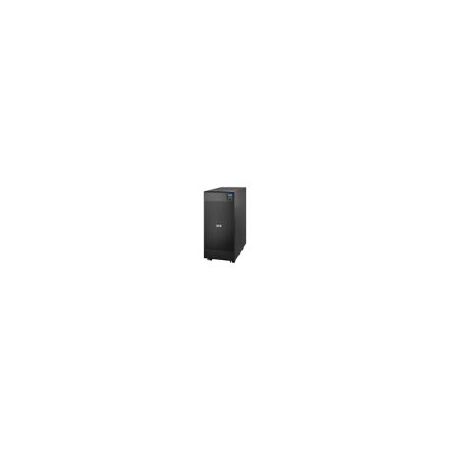

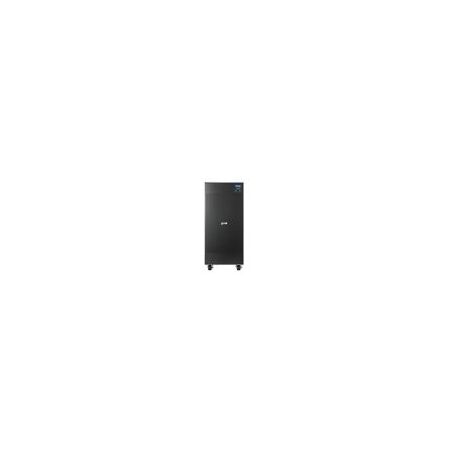

Product Name/Title: Online Tower UPS 20kVA/16kW | Hardwired Input | Eco-Mode Efficiency | Low Noise by Eaton
Brand: Eaton
SKU: 9105-62201
Alternatively Known As: Eaton 9E UPS 20kVA Tower UPS, Eaton 9E 16kW Online UPS, Eaton 9E Power Backup System
Technical Specifications
- Power Rating: 20 kVA / 16 kW
- Input Connection: Hardwired/fixed connection
- Input Voltage: 400V/230V nominal, range 176-276 V (110-276 V with derating)
- Input Frequency Range: 45-66 Hz
- Output Voltage: 230V default (220/230/240V selectable)
- Output Frequency: 50/60 Hz
- Output Power Factor: 0.8
- Topology: Online/Double-conversion
- Battery Type: Sealed, lead-acid, 12 V / 9 Ah
- Battery Quantity: 40 batteries, replaceable
- Runtime: 14.5 min at half load, 5 min at full load
- Communication Interfaces: USB (HID compliant), Serial (RS232), Mini-terminal block
- Noise Level: <55 dB at 1 meter
- Operating Temperature: 0° to 40°C
- Relative Humidity: 0-95% non-condensing
- Efficiency: 93% at max load, 97% in eco-mode
- BTU Rating: 4913 BTU/hr
- Dimensions (H x L x W): 815mm x 706mm x 350mm
- Weight: 160 kg
Key Features
- Online double conversion topology for consistent power quality
- Constant monitoring and regulation of voltage and frequency
- Internal bypass for service continuity during UPS faults

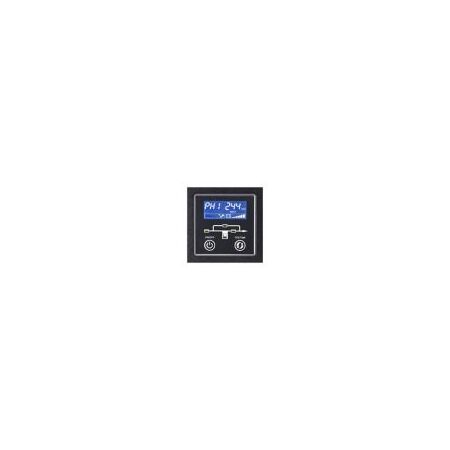

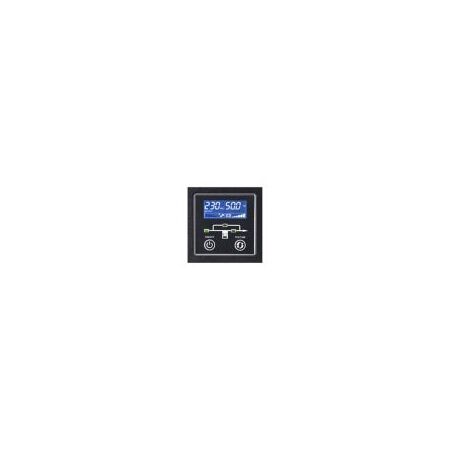

- LCD display for real-time status and measurements
- Compatible with virtual environments
- Long backup time with up to 4 optional external battery modules
- Automatic battery test and deep discharge protection
- Replaceable sealed lead-acid batteries
- Communication ports including USB, serial, and mini-terminal block
- Potential free switch contact for remote monitoring
- Low noise level under 55 dB at 1 meter
- High efficiency up to 97% in eco-mode
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical standards and safe operation.
Applications
- Data centers and server rooms requiring reliable power backup
- Industrial and commercial facilities with critical power needs
- IT infrastructure and virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
- Telecommunications and network equipment protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- High efficiency reduces energy consumption and operational costs
- Eco-mode operation minimizes power wastage
- Automatic battery management extends battery life and reduces waste
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official documentation for detailed warranty terms.
Available Now
The Eaton 9E 20KVA/16kW Online Tower UPS HW is available for immediate purchase, ideal for critical power protection in commercial and industrial environments.
