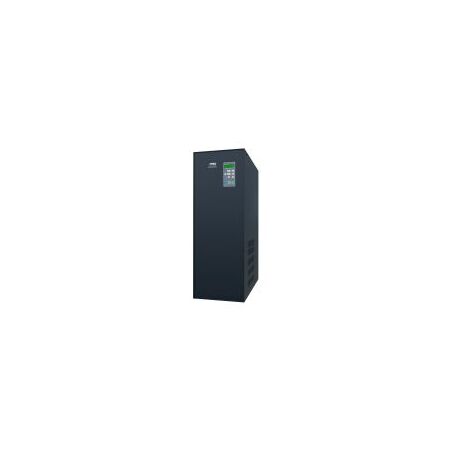

Online UPS 10kVA 8kW 1Ph Excluding Batteries PowerSeries

BRAND: CABAC
SKU: GP810
$5,848.70 List price: $7,798.30
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
30 Days Return Electricians Unlock Trade Access
PowerSeries GP online UPS features 10kVA 8kW, 1:1 single phase, expandable backup and generator compatibility. Ideal for critical loads; batteries not included.

Alternatively Known As: PowerSeries GP 10kVA UPS, Online Double-Conversion UPS, Single-Phase Long-Run UPS, Battery-Ready UPS

Technical Specifications
  • Rated Capacity: 10kVA / 8kW
  • Topology: Online double conversion
  • Phase Configuration: 1:1 single phase
  • Power Factor: 0.8 rated product configuration
  • Nominal Input Voltage: 208/220/230/240Vac
  • Input Voltage Range: 110–286Vac
  • Input Frequency Range: 40–70Hz, 50/60Hz auto-sensing
  • Output Voltage: 208/220/230/240Vac
  • Output Voltage Regulation: ±1%
  • Output Waveform: Pure sine wave
  • Transfer Time: 0ms, AC to battery mode
  • Generator Compatibility: Supported
  • Battery Configuration: External batteries required; batteries excluded
  • Battery Voltage: 192/216/240Vdc selectable
  • Battery Charging Current: 1.35A standard; up to 8A for long-run configuration
  • Efficiency: Up to 93.5%
  • Communications: RS232, USB and EPO; optional relay and SNMP cards
  • Protection: Short circuit, overload, overtemperature, battery overcharge and over-discharge
  • Dimensions (H x L x W): 720mm x 460mm x 191mm
  • Weight: 71 kg
Key Features
  • Provides continuous online double-conversion power protection for critical loads
  • 8kW output rating in the specified product configuration
  • Expandable backup runtime using an external battery cabinet or battery bank
  • Generator-compatible design for standby power systems
  • Selectable 208V, 220V, 230V or 240V output
  • Cold-start capability for operation without utility power
  • ECO mode available to reduce energy consumption during suitable operating conditions
  • LCD monitoring of input and output values, load, battery status, temperature and estimated runtime
  • Multiple alarm and protection functions for critical power applications
Professional Installation Requirements
  • Installation, battery connection, commissioning and hardwired electrical work should be performed by a suitably qualified electrical contractor or authorised UPS technician in accordance with AS/NZS 3000 and the manufacturer’s instructions. External battery systems require appropriate isolation, overcurrent protection, ventilation and battery safety controls.
Applications
  • Data centres and server rooms
  • Telecommunications and network infrastructure
  • Industrial control systems
  • Security, monitoring and access-control systems
  • Medical, laboratory and other critical electronic loads
  • Commercial facilities requiring generator-compatible backup power
Standards & Compliance
  • AS 62040.1:2019 – Uninterruptible power systems, general and safety requirements
  • AS IEC 62040.2:2019 – Uninterruptible power systems, electromagnetic compatibility requirements
  • AS IEC 62040.3 – Uninterruptible power systems, performance and test requirements
  • AS/NZS 3000:2018 – Electrical installations, applicable to fixed electrical installation and commissioning
Environmental Benefits
  • ECO operating mode can reduce energy consumption when the connected load and power-quality conditions permit
  • High-efficiency operation, rated up to 93.5%, can reduce operating losses and associated heat generation
  • External battery architecture allows battery capacity and replacement to be matched to the application, reducing unnecessary equipment replacement
  • Long service life and repairable UPS architecture can reduce electronic waste compared with replacing complete backup systems
Warranty Information

PSS standard return-to-base warranty terms specify a 2-year warranty against faulty materials or workmanship for PSS-manufactured products, subject to proof of purchase, compliant installation and commissioning requirements. Confirm warranty coverage for the POWERSERIES-branded unit before purchase.

Available Now

Available through POWERSERIES and authorised Australian UPS distributors, subject to configuration, battery selection and project requirements.

UPS Sizing Calculator




This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
