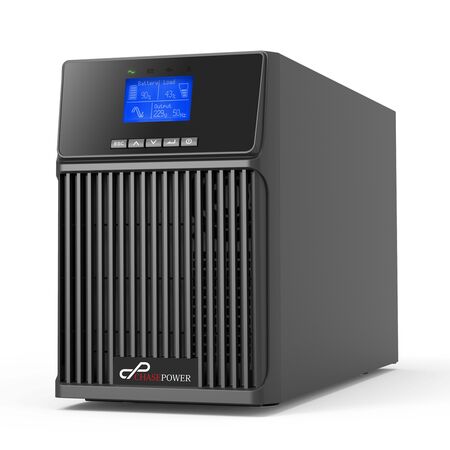

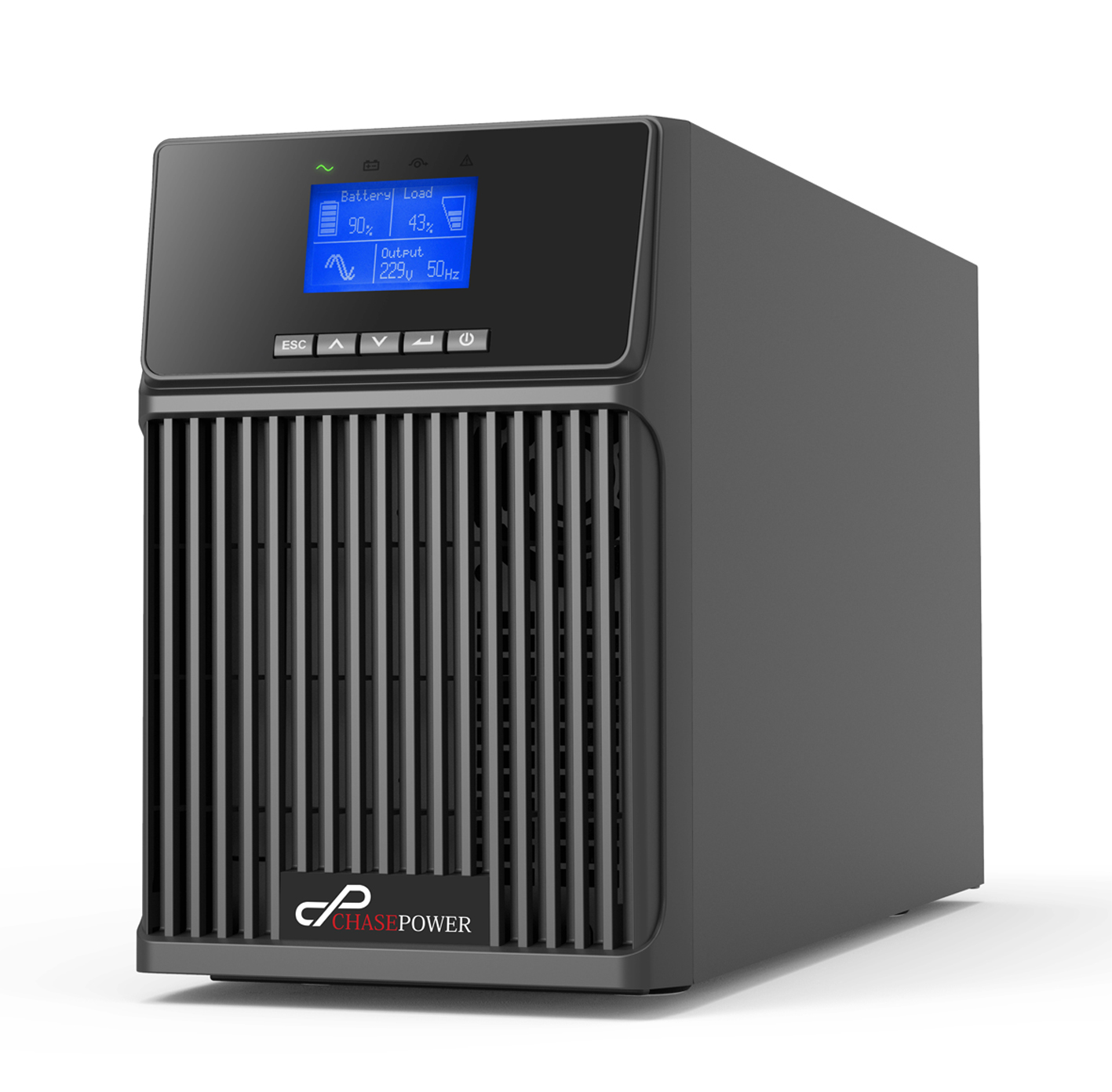

Onyx 1 1kVA 1000W Online Double Conversion UPS Chase Power

BRAND: Chase Power
SKU: CP2348
$962.50 List price: $1,443.80
+ −
30 Days Return Electricians Unlock Trade Access
Chase Power Onyx 1 online double conversion UPS 1kVA/1000W tower. True online protection for servers and sensitive IT.

Alternatively Known As: Onyx 1 Online UPS, 1000VA UPS, 1000W Server UPS, True Online UPS

Technical Specifications
  • Power Rating: 1000VA / 1000W
  • UPS Topology: Online double conversion
  • Output Power Factor: Unity, 1.0
  • Input Voltage Range: 160–300VAC at 100% load
  • Input Connection: IEC C14
  • Output Connections: 2 x Australian power sockets
  • Input Frequency: 50/60Hz
  • Input Power Factor: Greater than 0.99
  • Input THDi: Less than 5%
  • Output Voltage Accuracy: ±1%
  • Output THDv: Less than 1% linear load; less than 5% non-linear load
  • Performance Classification: VFI-SS-313
  • Transfer Time: 0ms in online mode; 4ms line-to-bypass
  • Battery: 36VDC, 3 x 12V 7Ah batteries
  • Battery Charging: 1.5A; approximately 3 hours to 90%
  • Battery: Hot-swappable
  • Efficiency: 89% in double conversion mode; 96% in ECO mode

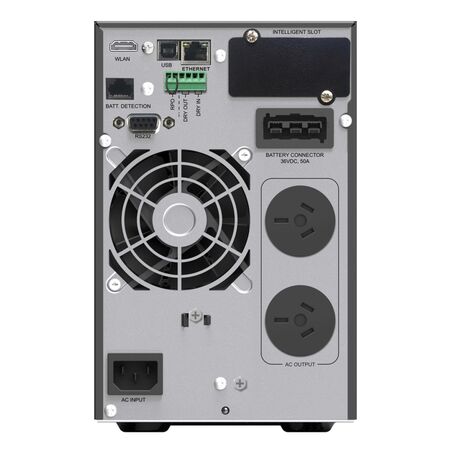

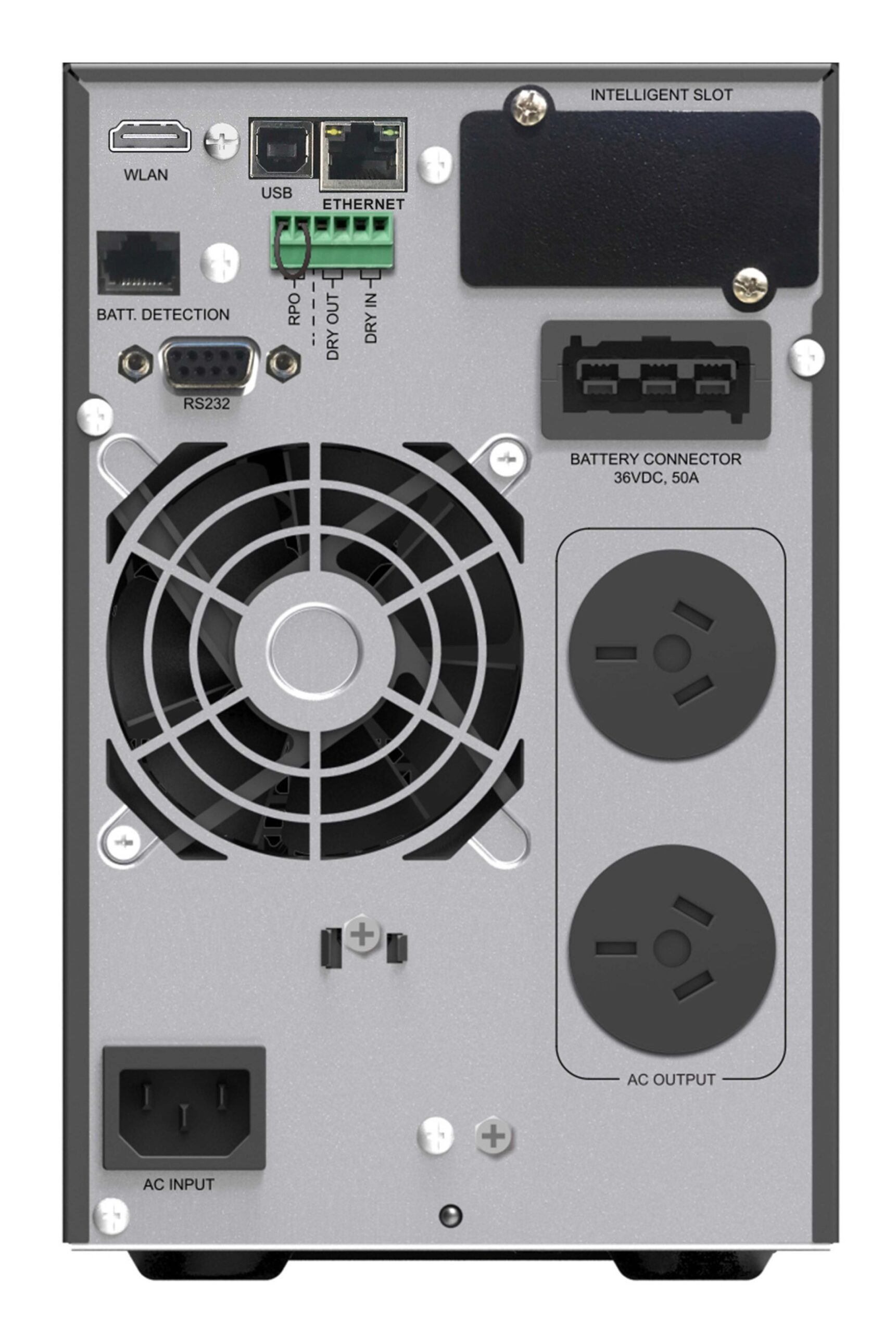

  • Communications: USB 2.0 HID, RS-232 and RJ45 Ethernet/IOT port
  • Optional Connectivity: SNMP, Modbus/CMC, AS400, WLAN and environmental monitoring cards
  • Operating Temperature: 0–45°C, with derating above 40°C
  • Relative Humidity: 0–95%, non-condensing
  • Acoustic Noise: Less than 40dB at typical load with fully charged battery
  • Ingress Protection: IP20
  • Display: Dot-matrix LCD
  • Included Accessories: 10A input power cable and USB cable
  • Dimensions (H x L x W): 220mm x 400mm x 145mm
  • Weight: 11 kg
Key Features
  • True online double conversion protection for servers and sensitive IT equipment
  • Unity output power factor provides the full 1000W capacity from a 1kVA rating
  • Wide 160–300VAC input range at full load helps reduce battery cycling
  • Zero-transfer-time protection in online mode
  • Australian output sockets and 10A input connection
  • Hot-swappable internal batteries with optimised battery management
  • USB HID monitoring without requiring additional software installation
  • LCD display with multi-language support
  • USB, RS-232 and optional network management connectivity
  • External battery banks available for extended runtime
  • Built-in over-voltage, overload, over-temperature and fan-lock protection
  • Compact tower format with low operating noise
Professional Installation Requirements
  • Connect to a suitable earthed 10A supply and install or commission in accordance with AS/NZS 3000 and the manufacturer’s instructions. Battery servicing and any hard-wired installation should be performed by suitably qualified electrical personnel.
Applications
  • Server and network equipment protection
  • Small data centres and communications infrastructure
  • Computers, workstations and storage devices
  • Telecommunications and VoIP equipment
  • Medical and laboratory equipment requiring conditioned power
  • Industrial control and automation equipment
  • Retail, education and office IT systems
Standards & Compliance
  • AS 62040.1:2019 is the applicable Australian UPS safety standard for this product category
  • AS IEC 62040.3 is applicable to UPS performance classification and testing
  • AS/NZS 3000 applies to electrical installation, earthing and connection requirements
Environmental Benefits
  • ECO mode efficiency of up to 96% can reduce operating energy consumption under suitable load conditions
  • Optimised battery management and hot-swappable batteries can extend battery service life and reduce replacement waste
  • External battery expansion allows the UPS to be scaled for longer runtime rather than replacing the main unit
  • Compact construction and long-life replaceable batteries can reduce whole-of-system replacement frequency
Warranty Information

Chase Power states that its UPS warranty is intended to match or exceed competing brands; confirm the applicable warranty term and conditions with Chase Power or the authorised Australian distributor before purchase.

Available Now

Available through Chase Power and authorised Australian distributors, subject to distributor stock.

UPS Sizing Calculator




This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
