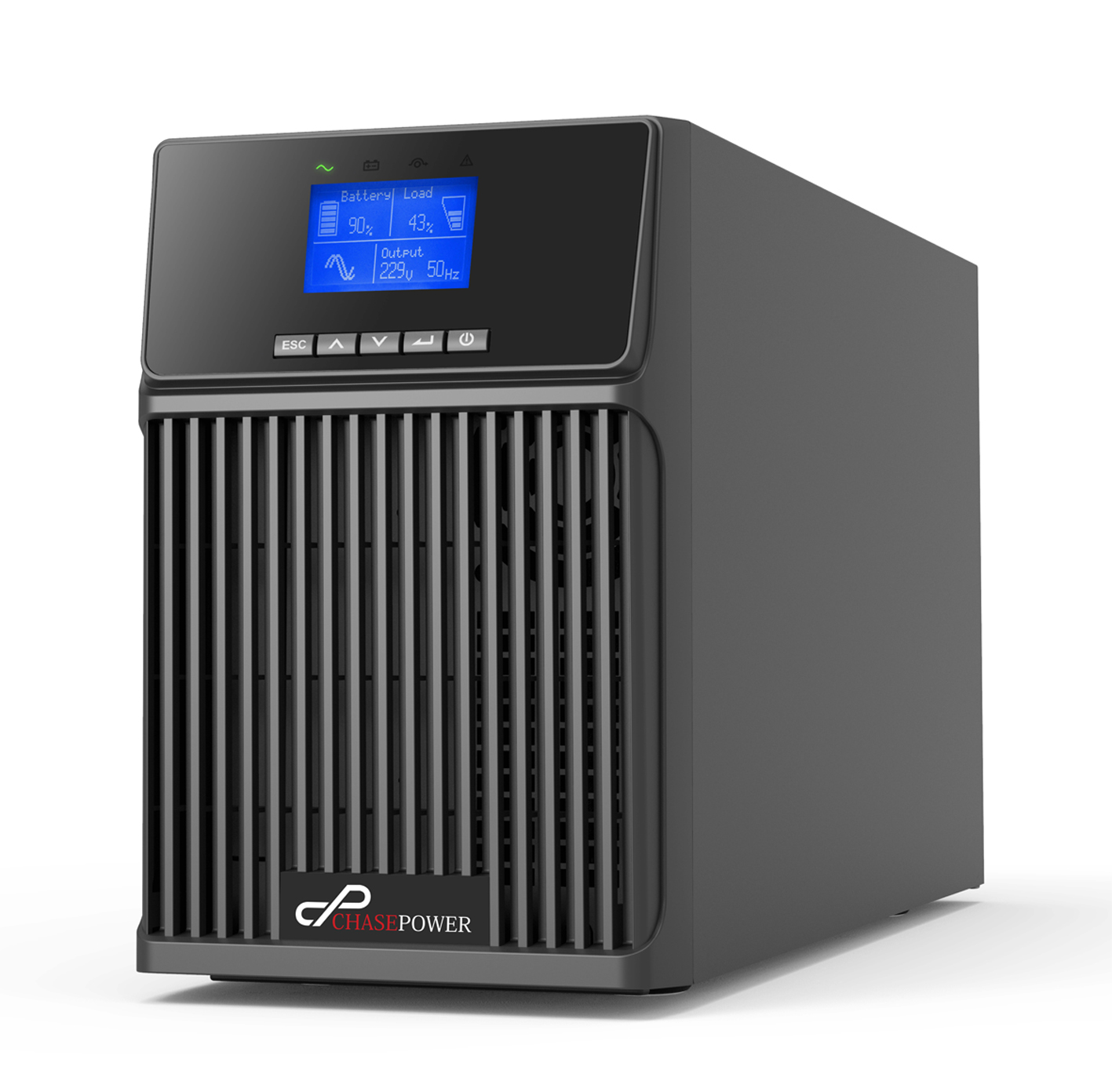

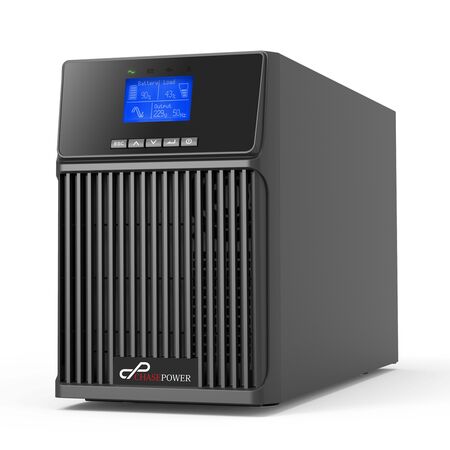

Onyx 3 3kVA 2700W Online Double Conversion UPS Chase Power
Chase Power Onyx 3 online double conversion UPS 3kVA/2700W tower. True online protection for servers and data racks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Onyx 3 UPS, Chase Power Onyx 3 Uninterruptible Power Supply, 3kVA Online UPS
Technical Specifications
- UPS Topology: Online double conversion
- Rated Capacity: 3kVA/3000W
- Output Power Factor: 1.0
- Input Voltage Range: 160–300VAC at 100% load
- Input Frequency: 50/60Hz
- Output Voltage: 200/208/220/230/240VAC
- Output Voltage Accuracy: ±1%
- Performance Classification: VFI-SS-313
- Input Connection: IEC C20

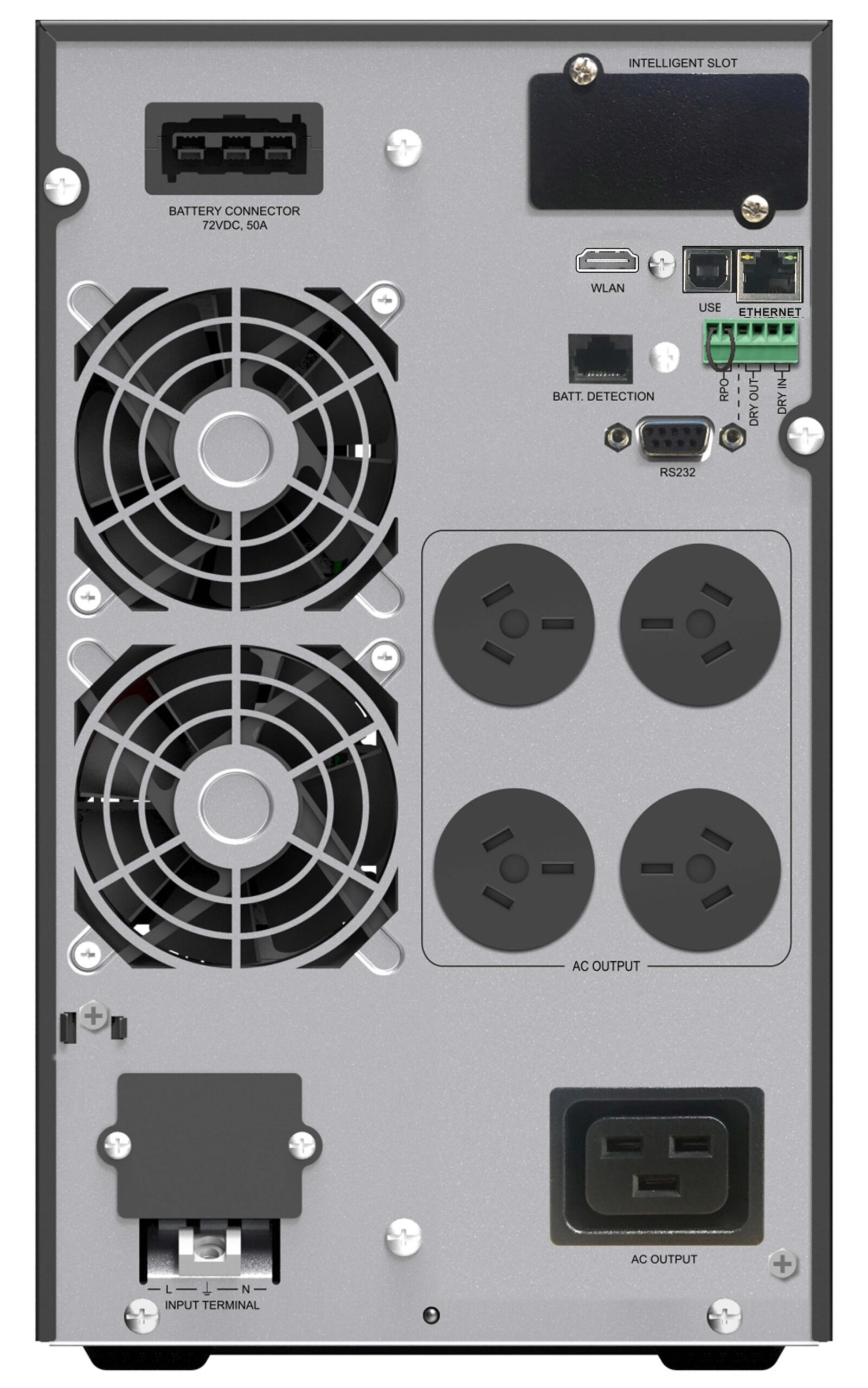

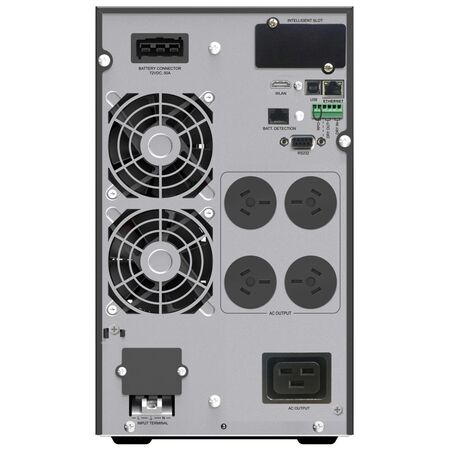

- Output Connection: 4 x Australian sockets and 1 x IEC C19
- Battery Configuration: 6 x 12V/9Ah batteries
- Transfer Time: 0ms in online mode; 4ms line-to-bypass
- Recharge Time: Approximately 3 hours to 90%
- Communications: USB HID and RS-232
- Monitoring: WinPower software and optional network, Modbus, AS400 and WLAN accessories
- Operating Temperature: 0–45°C, with power derating from 40–45°C
- Ingress Protection: IP20
- Input Requirement: 15A Australian power point
- Dimensions (H x L x W): 318mm x 424mm x 192mm
- Weight: 29 kg
Key Features
- True online double conversion technology for continuous power conditioning
- Unity power factor provides 3000W of usable output at 3kVA
- Wide 160–300VAC input range at full load
- Australian output power sockets for local installations
- LCD display for UPS status and configuration
- Built-in overvoltage, fan-lock, over-temperature and overload protection
- USB HID monitoring without requiring software installation
- USB and RS-232 communications included
- External battery banks available for extended runtime
- Optional SNMP, Modbus, AS400, environmental monitoring and WLAN connectivity
- Low audible noise suitable for offices, communications rooms and equipment areas
Professional Installation Requirements
- Installation and commissioning should be performed by a suitably qualified electrical technician. Connect to a correctly rated 15A Australian power point and install, operate and maintain the UPS in accordance with the manufacturer’s instructions and applicable electrical installation requirements.
Applications
- Servers and data racks
- Network and storage equipment
- Telecommunications and VoIP systems
- Industrial control and automation equipment
- Medical and laboratory equipment
- Security and communications infrastructure
- Computers and other power-sensitive electronic equipment
Standards & Compliance
- AS 62040.1:2019 – Uninterruptible power systems, Part 1: Safety requirements
- AS IEC 62040.2:2019 – Uninterruptible power systems, electromagnetic compatibility requirements
- AS/NZS 3000:2018 – Electrical installations, applicable to the electrical installation and connection
Environmental Benefits
- Online double conversion operation and high-efficiency modes can reduce energy losses during continuous operation
- Replaceable batteries and available external battery modules can extend service life and reduce whole-unit replacement waste
- Battery management features support improved battery service life
- Long-term protection of connected equipment can reduce premature equipment replacement and electronic waste
Warranty Information
Chase Power states that its UPS warranty is equal to or superior to comparable brands; the specific warranty period for the Onyx 3 should be confirmed with Chase Power or the authorised distributor before purchase.
Available Now
Available through Chase Power and authorised Australian distributors, subject to distributor stock and configuration.
