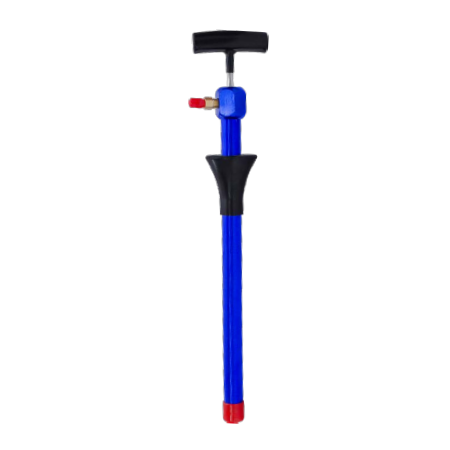

OP1 Oil Transfer Pump | 78ml per Stroke | 200psi Pressure | Automatic Bleed Valve | by Aspen Pumps
The OP1 Oil Transfer Pump is designed for efficient oil transfer in HVAC applications, offering a pumping capacity of 78ml per stroke and operating against a maximum pressure of 200psi. With an automatic bleed valve for pressure equalization, it's compatible with polyol ester, mineral, and synthetic oils, making it ideal for maintenance and servicing tasks. This pump is perfect for trained HVAC technicians looking for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: OP1 Oil Transfer Pump | 78ml per Stroke | 200psi Pressure | Automatic Bleed Valve | by Aspen Pumps
Brand: Aspen Pumps
SKU: OP1
Alternatively Known As: Oil Transfer Pump, Oil Pump for HVAC, OP1 Pump
Technical Specifications
- Pumping capacity: 78ml per stroke
- Maximum pressure: 200psi
- Automatic bleed valve for pressure equalisation
- Compatible oils: polyol ester, mineral, synthetic
- Universal stopper for 4L, 10L, and 20L containers
- Dimensions (H x L x W): 250mm x 200mm x 150mm
- Weight: 1.5 kg
Key Features
- Pumps 78ml per stroke
- Operates against 200psi pressure
- Automatic bleed valve to equalise pressure
- Compatible with polyol ester, mineral, and synthetic oils
- Universal stopper fits 4L, 10L, and 20L containers
Professional Installation Requirements
- No professional installation required; suitable for use by trained HVAC technicians.
Applications
- HVAC/R maintenance and servicing
- Oil transfer for polyol ester, mineral, and synthetic oils
- Use with 4L, 10L, and 20L oil containers
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Reduces oil spillage and waste during transfer
- Supports maintenance of HVAC systems for improved energy efficiency
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Aspen OP1 Oil Transfer Pump is available for immediate purchase, ideal for HVAC maintenance and oil transfer applications.
