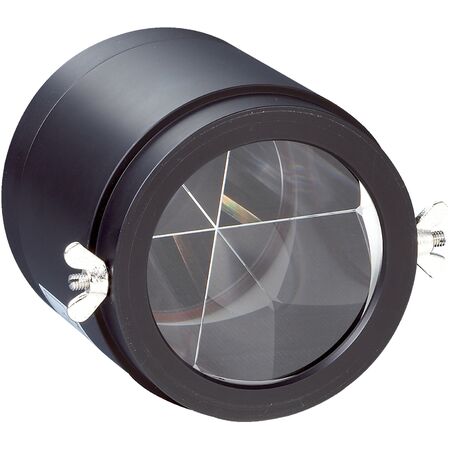

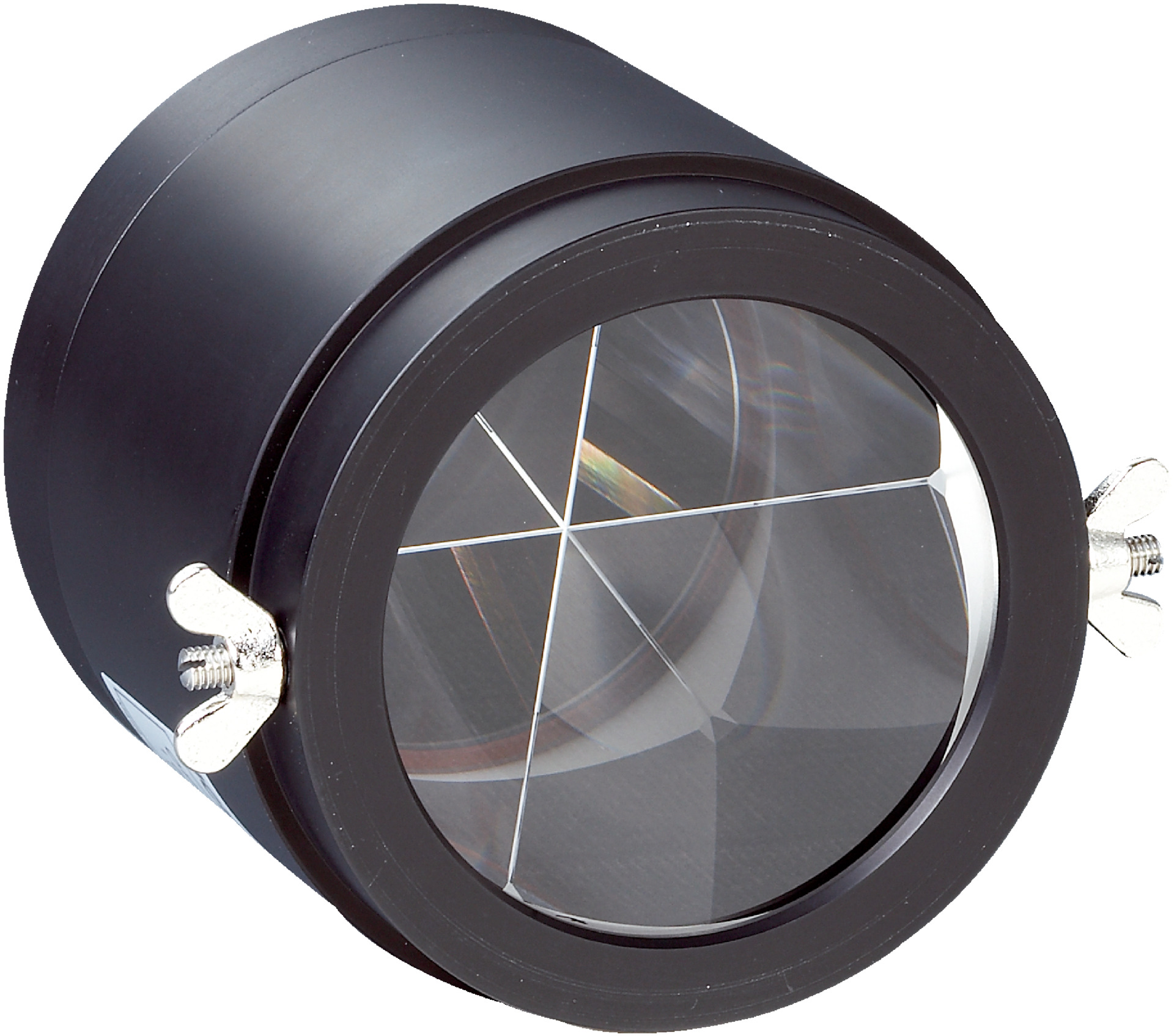

OP60-20 Triple Glass Reflector | Long Range Scanning | Durable Aluminum Housing | by SICK
The OP60-20 Triple Glass Reflector is engineered for optimal long-range scanning, featuring a focus distance of 20 meters and a durable aluminum anodized housing. Ideal for industrial automation and sensor systems, this reflector operates efficiently in ambient temperatures from -20°C to +65°C, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: OP60-20 Triple Glass Reflector | Long Range Scanning | Durable Aluminum Housing | by SICK
Brand: SICK
SKU: 1000136
Alternatively Known As: Triple Glass Reflector, Long Range Reflector, OP60-20 Reflector
Technical Specifications
- Product segment: Reflectors and optics
- Product version: Special reflectors
- Material: Aluminum (anodized) and glass
- Mounting system type: Screw-on
- Ambient operating temperature: -20°C to +65°C
- Diameter: 82 mm
- Dimensions (H x L x W): 82mm x 82mm x 82mm
- Weight: 0.3 kg
Key Features
- Single triple glass reflector designed for greatest scanning ranges
- Focus distance of 20 meters
- Durable aluminum anodized housing with glass reflector
- Screw-on mounting system for secure installation
- Operates in ambient temperatures from -20°C to +65°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and alignment for optimal performance.
Applications
- Industrial automation and sensor systems
- Scanning and detection systems requiring long-range reflectors
- Machine safety and control systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Energy-efficient design supports sustainable industrial automation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK OP60-20 Single Triple Glass Reflector is available for immediate purchase, ideal for industrial and automation applications requiring precise long-range scanning.
