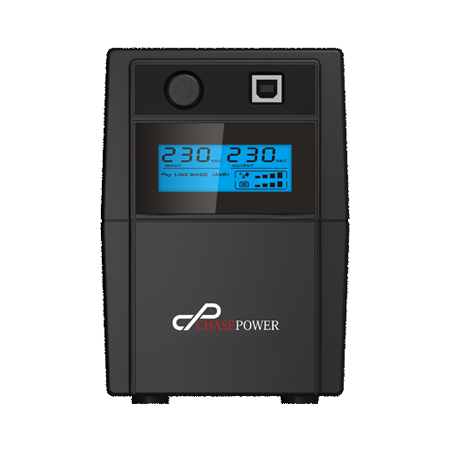

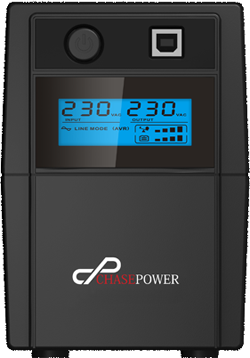

Opal 2200 2200VA 1200W Line Interactive UPS AVR Chase Power
Chase Power Opal 2200 line interactive UPS 2200VA/1200W AVR tower. Backup for servers, POS and multi-PC setups.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Chase Power Opal 2200 UPS, 2200VA UPS, 1200W UPS, AVR UPS, Tower UPS
Technical Specifications
- UPS Type: Line-interactive tower UPS
- Capacity: 2200VA / 1200W
- Input Voltage Range: 170–280VAC
- Input Voltage: 230VAC
- Output Voltage: 230VAC
- Voltage Regulation: ±15% in line mode; ±10% in battery mode
- Output Waveform: Modified sine wave
- Transfer Time: Typically 4–8ms
- Battery: 12V/9Ah × 2
- Rated Battery Voltage: 24VDC
- Recharge Time: 2–6 hours to 90%
- Efficiency: 95% line mode; 88% AVR mode; 60% battery mode

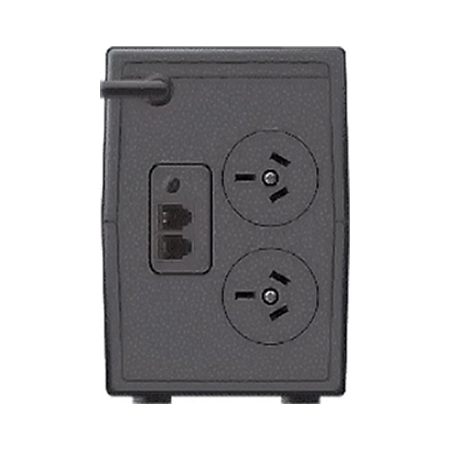

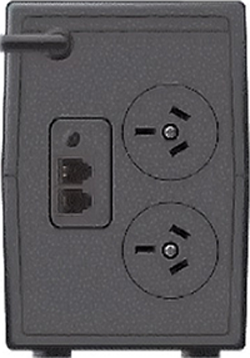

- Outlets: 4 Australian outlets
- Monitoring: LCD display and WinPower software
- Connectivity: USB port and RJ45 surge protection
- Protection: Discharge, overcharge and overload protection
- Operating Environment: 0–40°C, 0–90% RH non-condensing
- Noise Level: Less than 45dB
- Dimensions (H x L x W): 195mm x 364mm x 139mm
- Weight: 10.4 kg
Key Features
- Provides battery backup for servers, point-of-sale equipment and multi-PC installations
- Automatic voltage regulation helps stabilise output during mains voltage fluctuations
- LCD display provides operating and battery status information
- Modified sine-wave output suitable for compatible IT and office equipment
- Four Australian power outlets for connected loads
- USB monitoring connection with WinPower software support
- RJ45 surge protection for connected network equipment
- Audible alarms for battery operation, low battery, overload and faults
- Tower form factor for floor, cabinet or equipment-room deployment
Professional Installation Requirements
- Suitable for user connection to a correctly earthed Australian power outlet. Permanent, commercial or critical-power installations should be assessed and commissioned by a suitably qualified electrical professional in accordance with applicable electrical installation requirements.
Applications
- Server and network equipment backup
- Point-of-sale and retail systems
- Multi-computer workstations
- Office and small-business IT equipment
- Telecommunications and network devices
- Security, control and other sensitive electronic equipment
Standards & Compliance
- AS 62040.1:2019 is the relevant Australian safety standard for uninterruptible power systems; product-specific certification is not stated in the available Chase Power datasheet.
- AS IEC 62040.2:2019 provides the applicable electromagnetic compatibility requirements for UPS equipment; product-specific certification is not stated in the available Chase Power datasheet.
Environmental Benefits
- Automatic voltage regulation can reduce voltage stress on connected equipment and help extend service life.
- Battery backup can reduce equipment loss and electronic waste caused by short power interruptions and voltage disturbances.
- The UPS enclosure and electronic components may be recoverable through appropriate e-waste recycling at end of service life.
- Rechargeable sealed lead-acid batteries should be returned through an approved battery recycling or disposal program.
Warranty Information
Chase Power states that its UPS range is supplied with a manufacturer warranty and after-sales support, but the exact warranty duration for the Opal 2200 is not published in the available product literature. Australian Consumer Law rights still apply where relevant.
Available Now
Available through Chase Power and authorised Australian distributors, subject to current distributor stock.
