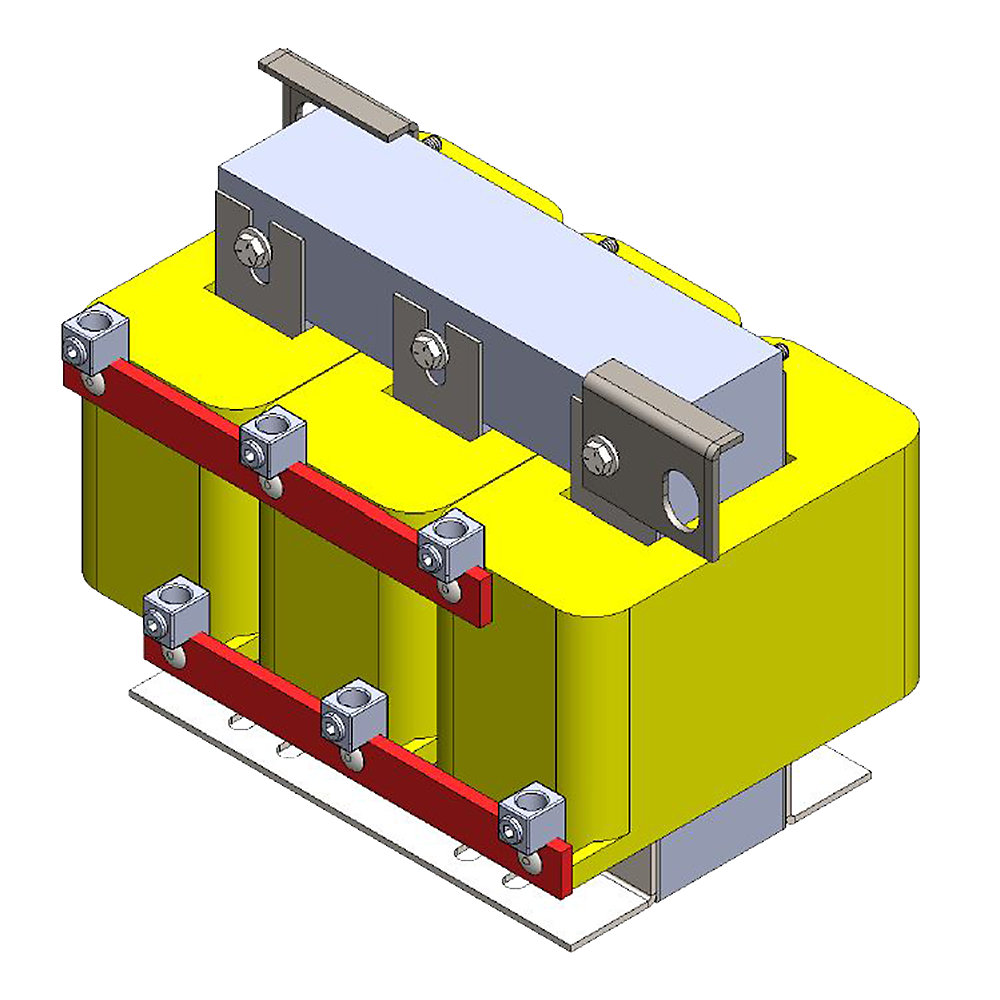

Open Frame Line Reactor Harmonic Reduction & Motor Protection 230V to 480V by Allen-Bradley
The Open Frame Line Reactor is designed for harmonic reduction and motor protection, operating efficiently at 230V to 480V. Ideal for industrial motor control, it enhances power quality and system reliability while reducing electrical noise. Built with a laminated steel core and copper windings, this reactor is essential for improving energy efficiency in electrical systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Line Reactor, AC Line Reactor, Motor Line Reactor, Harmonic Filter Reactor
Technical Specifications
- Type: Open frame line reactor
- Function: Harmonic reduction and motor protection
- Typical application voltage: 230V to 480V
- Frequency: 50/60 Hz
- Construction: Laminated steel core with copper windings
- Dimensions (H x L x W): 200mm x 150mm x 150mm
- Weight: 5 kg
Key Features
- Reduces harmonic distortion and voltage spikes
- Protects motors and drives from electrical noise
- Improves power factor and system reliability
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and optimal performance.
Applications
- Industrial motor control and protection
- Power quality improvement in electrical systems
- Harmonic reduction in variable frequency drives
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances energy efficiency by improving power factor
- Reduces electrical noise and associated energy losses
Warranty Information
1 year limited warranty covering manufacturing defects.
Available Now
The Allen-Bradley Line Reactor Open is available for immediate purchase, ideal for industrial and commercial electrical systems requiring harmonic mitigation and motor protection.
