Opti-SM Surface LED Profile Opal Diffuser Black Per Metre Domus

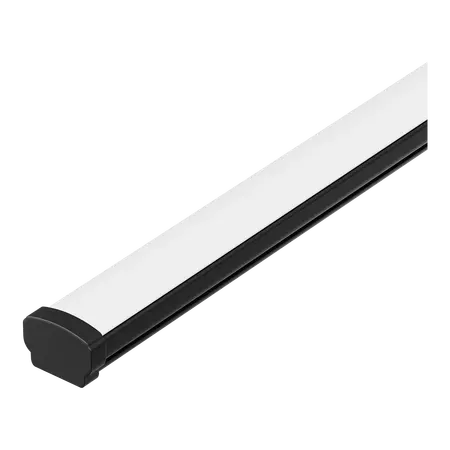

Domus Opti-SM surface mount aluminium LED strip profile, 20x12mm, opal diffuser, end caps included, black, sold per metre.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Surface-Mount LED Strip Profile, Aluminium LED Channel, LED Strip Light Extrusion, LED Profile Channel
Technical Specifications
- Model: LP-2012-SM-1M
- Material: Extruded aluminium 6063
- Finish: Black powder-coated finish
- Diffuser: Curved opal polycarbonate
- Installation: Wall or surface mounted
- Profile Size: 20.6 mm wide x 13.8 mm high
- Supply Length: 1 metre
- Continuous Profile Length: 3,000 mm
- Compatible LED Strips: Domus PLEX LED strip lighting
- Driver: Remote driver required; not included
- Accessories: End caps and mounting clips available separately
- Dimensions (H x L x W): 13.8mm x 1000mm x 20.6mm
- Weight: 0.2 kg
Key Features
- Designed for Domus LED strip lighting
- Opal diffuser helps create a smooth, concealed linear light appearance
- Aluminium construction assists heat dissipation from the LED strip
- Protects LED strips from dust, vapours and foreign objects
- Suitable for surface mounting to walls, cabinetry and joinery
- Can be cut to suit the required installation length
- Black finish for discreet or contrasting architectural installations
Applications
- Under-bench lighting
- Pelmet and cabinetry lighting
- Wardrobe lighting
- Laundry lighting
- Joinery and display lighting
- Residential and commercial interior linear lighting
Environmental Benefits
- Aluminium extrusion can be recycled at end of service life
- Aluminium construction assists LED strip heat management and may help extend operating life
- Durable profile construction can reduce replacement frequency and installation waste
Warranty Information
12-month replacement warranty for products not otherwise listed in the current Domus Lighting warranty schedule. Warranty claims require proof of purchase and installation in accordance with Domus requirements.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting retailers.
Lighting Requirement Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
