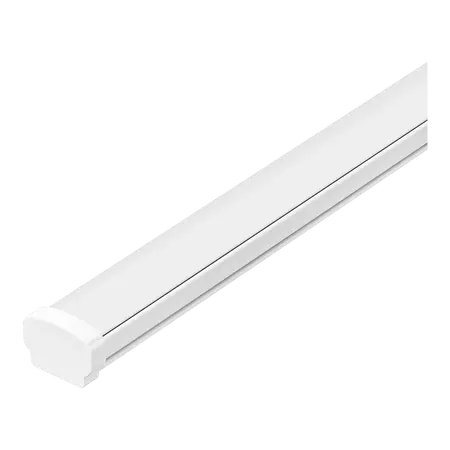

Opti-SM Surface LED Profile Opal Diffuser White Per Metre Domus
Domus Opti-SM surface mount aluminium LED strip profile, 20x12mm, opal diffuser, end caps included, white, sold per metre.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Aluminium LED Strip Profile, Surface-Mount LED Channel, LED Strip Extrusion, Opti LED Profile
Technical Specifications
- Model: LP-2012-SM-1M
- Finish Colour: White
- Material: Aluminium profile with polycarbonate diffuser
- Diffuser Type: Opal
- Installation: Wall or surface mounted
- Profile Width: 20.6 mm
- Profile Height: 13.8 mm
- Supply Length: 1 metre
- Continuous Length Option: 3 metres
- Accessories: End caps included
- Intended Strip Lighting: Domus LED strip lighting
- Dimensions (H x L x W): 13.8mm x 1000mm x 20.6mm
- Weight: 0.35 kg
Key Features
- Surface-mount design for LED strip lighting
- Opal diffuser provides a softened, more uniform light appearance
- White finish for discreet integration with light-coloured cabinetry and interiors
- Aluminium construction assists heat dissipation from the LED strip
- Conceals and protects the LED strip from dust, vapours and foreign objects
- Maintains a straight, linear appearance along the installation
- Suitable for under-bench, pelmet, wardrobe and laundry applications
- Supplied per metre with end caps included
Applications
- Under-cabinet and under-bench lighting
- Pelmet and wardrobe lighting
- Laundry lighting
- Decorative residential linear lighting
- Commercial interior LED strip lighting installations
Environmental Benefits
- Aluminium is highly recyclable and can be recovered at the end of the product's service life
- Aluminium construction assists LED heat management, which can help support longer strip-light service life
- Protecting the LED strip may reduce premature replacement and associated material waste
Warranty Information
Domus Lighting's standard warranty provides a 12-month replacement warranty for products not otherwise listed, subject to the applicable warranty conditions, proof of purchase and installation requirements.
Available Now
Available through Domus Lighting and authorised Australian distributors; confirm current stock and lead time before ordering.
