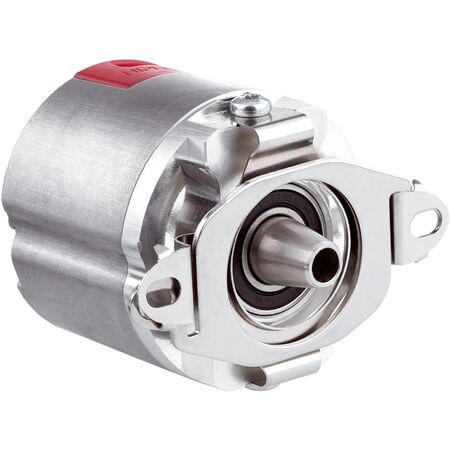

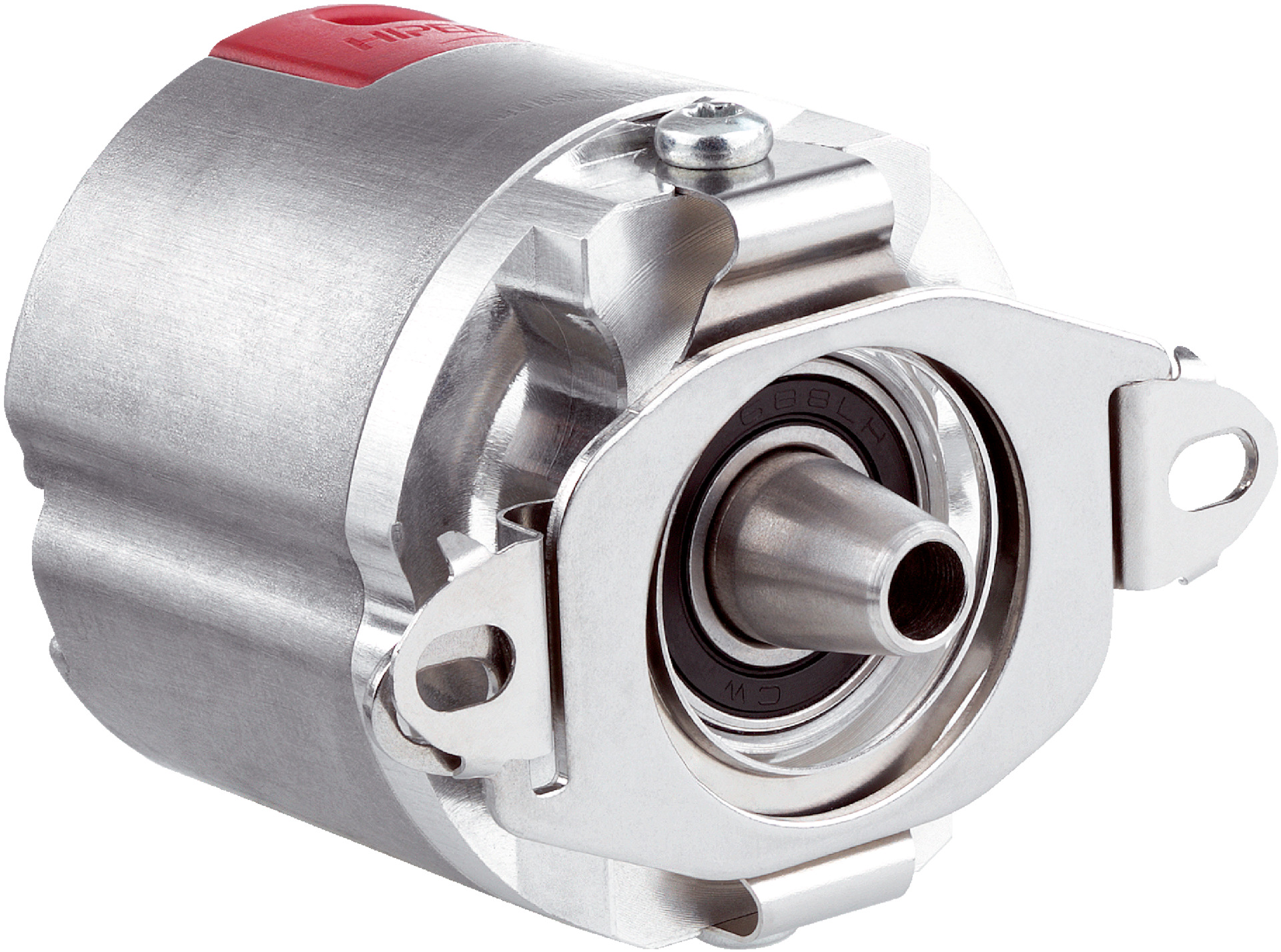

Optical Absolute Encoder EDM35 | 24-Bit Resolution | HIPERFACE DSL Interface | IP40 Rated | by SICK
The Optical Absolute Encoder EDM35 is designed for precise position measurement in industrial automation, featuring a 24-bit resolution and HIPERFACE DSL communication interface. With an operating temperature range of -40 °C to +115 °C and a fast initialization time of ≤ 500 ms, it's perfect for robotics and motion control systems, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Position resolution: 24 bit per revolution
- System accuracy: ± 25 seconds
- Signal noise (σ): ± 1 second
- Number of absolute ascertainable revolutions: 4,096
- Available memory area: 8,192 Byte
- Measurement principle: Optical
- Communication interface: HIPERFACE DSL®
- Initialization time: ≤ 500 ms
- Connection type: Male connector, 8-pin
- Supply voltage: 7 V to 12 V
- Current consumption: ≤ 150 mA
- Operating speed: ≤ 9,000 min⁻¹
- Angular acceleration: ≤ 250,000 rad/s²
- Start-up torque: ≤ 0.6 Ncm at +20 °C
- Permissible static axial movement: ± 1 mm
- Permissible dynamic radial movement: ± 0.1 mm
- Life of ball bearings: 50,000 hours at 6,000 min⁻¹
- Operating temperature range: –40 °C to +115 °C
- Storage temperature range: –40 °C to +125 °C
- Relative humidity: 90%, condensation not permitted
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibrations: 50 g, 10 Hz to 2,000 Hz
- EMC compliance: EN 61000-6-2, EN 61000-6-4, IEC 61326-3
- Enclosure rating: IP40
- Dimensions (H x L x W): 35mm x 50mm x 35mm
- Weight: 0.1 kg
Key Features
- 24-bit position resolution per revolution
- System accuracy of ± 25 seconds
- Optical measurement principle
- HIPERFACE DSL® communication interface
- Fast initialization time ≤ 500 ms
- Operating temperature range from –40 °C to +115 °C
- IP40 enclosure rating when cover is closed and connector attached
- Compatible with sHub®
- Low start-up torque ≤ 0.6 Ncm at +20 °C
- High operating speed up to 9,000 min⁻¹
- Long ball bearing life of 50,000 hours at 6,000 min⁻¹
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper alignment and connection.
Applications
- Industrial automation for precise position measurement
- Robotics for accurate shaft position feedback
- Machine tools requiring high-resolution rotary encoders
- Motion control systems in manufacturing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with supply voltage between 7 V and 12 V
- Durable design reduces waste and replacement frequency
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK EDM35-0VF0A024A Optical Absolute Encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
