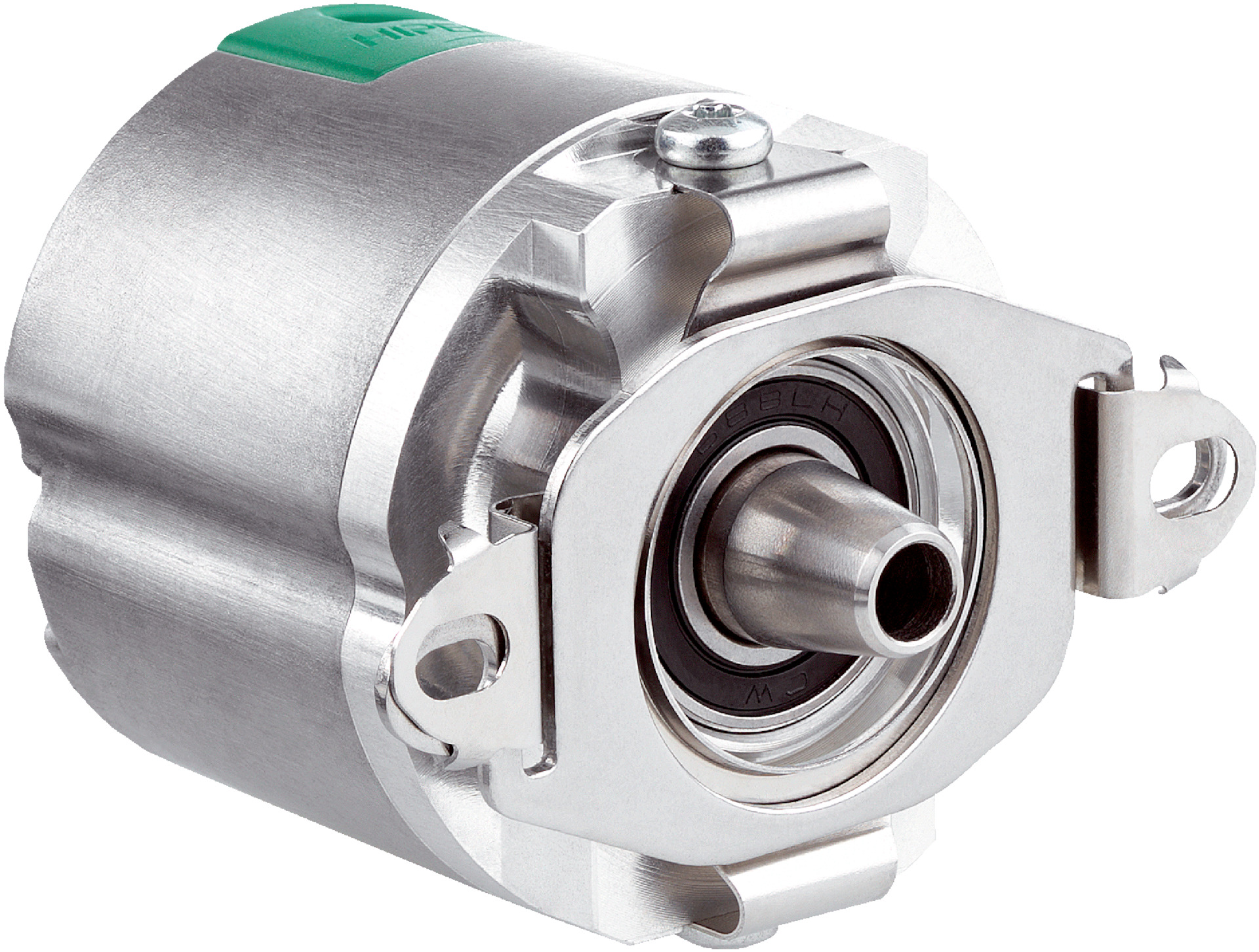

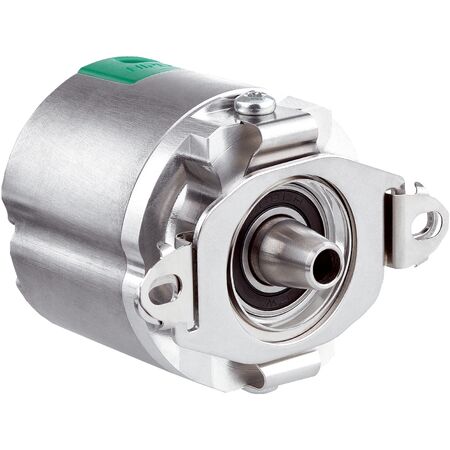

Optical Absolute Encoder EDS35-2KF0A024A | SIL 2 Safety Level | 24-Bit Resolution | IP40 Rated | by SICK
The Optical Absolute Encoder EDS35-2KF0A024A is designed for industrial automation, offering SIL 2 safety compliance and a 24-bit resolution for precise position measurement. With an operating temperature range of -40 °C to +115 °C and a robust IP40 enclosure, it’s perfect for high-speed machinery and safety-critical applications, ensuring reliability and accuracy in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL 2 (IEC 61508), SILCL3 (IEC 62061)
- Category: 3 (EN ISO 13849-1:2015)
- Performance level: PL d (EN ISO 13849-1:2015)
- Safety-related resolution: 13 bits
- System accuracy: ± 25 seconds of arc
- Resolution per revolution: 24 bit
- Available memory area: 8,192 Byte
- Measurement principle: Optical
- Communication interface: HIPERFACE DSL®
- Supply voltage: 7 V to 12 V
- Current consumption: ≤ 150 mA
- Operating temperature range: -40 °C to +115 °C
- Enclosure rating: IP40
- Operating speed: ≤ 12,000 min⁻¹
- Start-up torque: ≤ 0.6 Ncm at +20 °C
- Weight: ≤ 100 g
- Dimensions (H x L x W): 35mm x 20mm x 35mm
- Weight: 0.1 kg
Key Features
- Safety integrity level SIL 2 (IEC 61508) and SILCL3 (IEC 62061)
- Category 3 (EN ISO 13849-1:2015) with Performance Level PL d
- Safe singleturn absolute position measurement with 13-bit safety-related resolution
- High system accuracy of ± 25 seconds of arc
- Optical measurement principle with 24-bit resolution per revolution
- Communication via HIPERFACE DSL® interface
- Operating temperature range from -40 °C to +115 °C
- Robust mechanical design with tapered shaft and stator coupling
- Low start-up torque of ≤ 0.6 Ncm at +20 °C
- IP40 enclosure rating when cover is closed and connector attached
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety-related control systems and electrical connections to ensure compliance with safety standards.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring SIL 2 and PL d compliance
- High-speed machinery with operating speeds up to 12,000 min⁻¹
- Environments requiring robust optical position sensing with IP40 protection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long operational life reduces waste and replacement frequency
- Low power consumption of ≤ 150 mA supports energy efficiency
- Robust design minimizes environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK EDS35-2KF0A024A Optical Absolute Position Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications requiring high precision and reliability.
