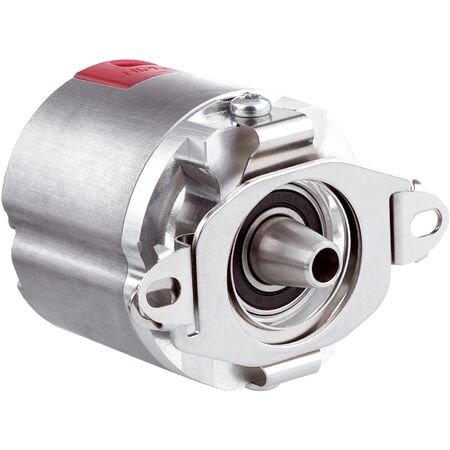

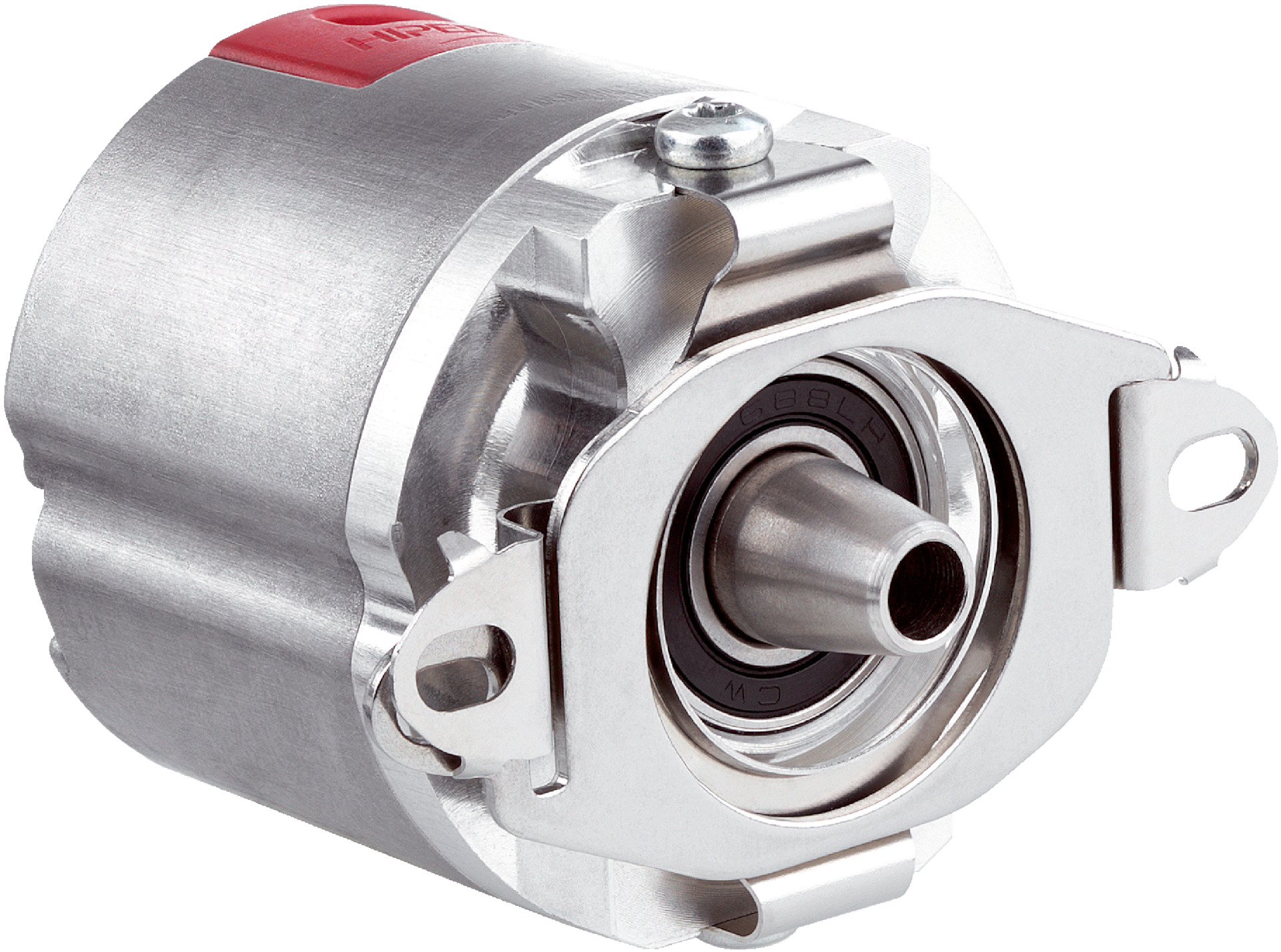

Optical Absolute Position Encoder EDM35-2KF0A024A | SIL 2 Safety Level | 24-Bit Resolution | IP40 Rated | by SICK
The Optical Absolute Position Encoder EDM35-2KF0A024A is designed for industrial automation, offering a SIL 2 safety integrity level and 24-bit resolution for precise position measurement. With an operating temperature range of -40 °C to +115 °C and robust IP40 protection, it's perfect for high-speed machinery and safety-critical applications, ensuring reliability and accuracy in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL 2 (IEC 61508), SILCL3 (IEC 62061)
- Category: 3 (EN ISO 13849-1:2015)
- Performance level: PL d
- Position resolution: 24 bit per revolution
- System accuracy: ± 25 seconds of arc
- Signal noise (σ): ± 1 second
- Number of absolute ascertainable revolutions: 4,096
- Available memory area: 8,192 Byte
- Measurement principle: Optical
- Communication interface: HIPERFACE DSL®
- Initialization time: ≤ 500 ms
- Connection type: Male connector, 4-pin
- Supply voltage: 7 V to 12 V
- Current consumption: ≤ 150 mA
- Operating speed: ≤ 9,000 min⁻¹
- Angular acceleration: ≤ 250,000 rad/s²
- Start up torque: ≤ 0.6 Ncm at +20 °C
- Permissible static movement: ± 1 mm axial
- Permissible dynamic movement: ± 0.025 mm radial
- Life of ball bearings: 50,000 hours at 6,000 min⁻¹
- Operating temperature range: -40 °C to +115 °C
- Storage temperature range: -40 °C to +125 °C
- Relative humidity: 90%, condensation not permitted
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibrations: 50 g, 10 Hz to 2,000 Hz
- EMC compliance: EN 61000-6-2:2016, EN 61000-6-4:2006, IEC 61000-6-7:2014
- Enclosure rating: IP40
- Dimensions (H x L x W): 35mm x 50mm x 35mm
- Weight: 0.1 kg
Key Features
- Safety integrity level SIL 2 (IEC 61508) and SILCL3 (IEC 62061)
- Category 3 (EN ISO 13849-1:2015) with Performance Level PL d
- Optical measurement principle with 24-bit resolution per revolution
- System accuracy ± 25 seconds of arc
- Operating temperature range from -40 °C to +115 °C
- Communication interface HIPERFACE DSL®
- Male 4-pin connector with supply voltage 7 V to 12 V
- High resistance to shocks (100 g) and vibrations (50 g, 10 Hz to 2000 Hz)
- IP40 enclosure rating when cover closed and connector attached
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety-related encoder systems and HIPERFACE DSL communication protocols.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring SIL 2 and PL d compliance
- High-speed machinery with up to 9,000 min⁻¹ operating speed
- Environments requiring robust optical position sensing with IP40 protection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long operational life reduces waste and replacement frequency
- Low power consumption (≤ 150 mA) supports energy-efficient operation
- Robust design minimizes environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK EDM35-2KF0A024A Optical Absolute Position Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications requiring high precision and reliability.
