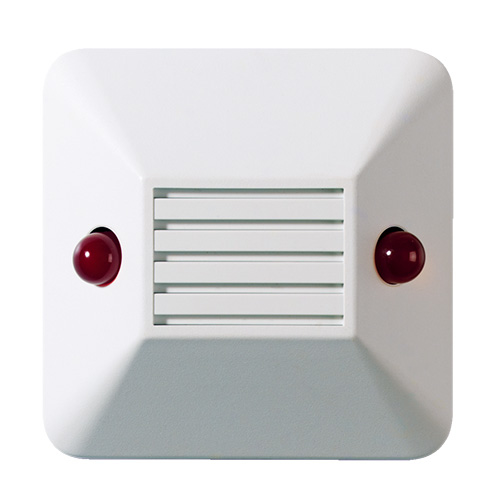

Optical and Acoustic Remote Indicator 12V DC LED and Buzzer Tecom
Tecom optical and acoustic remote indicator features 12V DC operation with an LED and buzzer. Ideal for alarm systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Aritech AI673 Remote Indicator, Optical and Acoustic Alarm Indicator, LED and Buzzer Alarm Indicator
Technical Specifications
- Model: AI673
- Operating Voltage: 6–28 V DC
- Current Consumption: 4 mA nominal
- LED Colour: Red
- Light Intensity: 200 mcd
- Flashing Frequency: Approximately 1.3 Hz
- Sound Output: Approximately 81 dBA at 1 metre
- Buzzer Frequency: Approximately 3.6 kHz
- Terminals: 5
- Material: Self-extinguishing polycarbonate
- Colour: White RAL 9010
- Environment: Indoor use
- Dimensions (H x L x W): 30mm x 80mm x 80mm
- Weight: 0.1 kg
Key Features
- Combined optical LED and acoustic buzzer indication
- Suitable for conventional alarm detector applications
- Wide 6–28 V DC operating range
- Low current consumption
- Large, clearly visible red LEDs
- Selectable flashing or fixed LED operation
- Polarity reversal protection
- Universal mounting plate
- Can connect to up to four detectors
- Low-profile housing for wall or ceiling mounting
Professional Installation Requirements
- Installation should be carried out by a suitably qualified security or alarm technician, with low-voltage wiring and system commissioning completed in accordance with the alarm system manufacturer's instructions and applicable Australian requirements.
Applications
- Intruder alarm systems
- Security alarm detector status indication
- Panic alarm systems
- Disabled toilet assistance alarms
- General indoor warning and notification systems
- Remote visual and audible indication where the primary detector is not readily visible
Standards & Compliance
- AS/NZS 2201.1:2007 when installed as part of an intruder alarm system at client premises
Environmental Benefits
- Low nominal current consumption of approximately 4 mA reduces operating energy demand
- Self-extinguishing polycarbonate housing supports product durability and reduced replacement waste
- Long service life as a passive low-voltage alarm accessory can reduce material consumption associated with frequent replacement
Warranty Information
Tecom hardware is covered by a 5-year manufacturer warranty, subject to the applicable warranty terms and conditions.
Available Now
Available through Tecom and authorised Australian security-system distributors.
